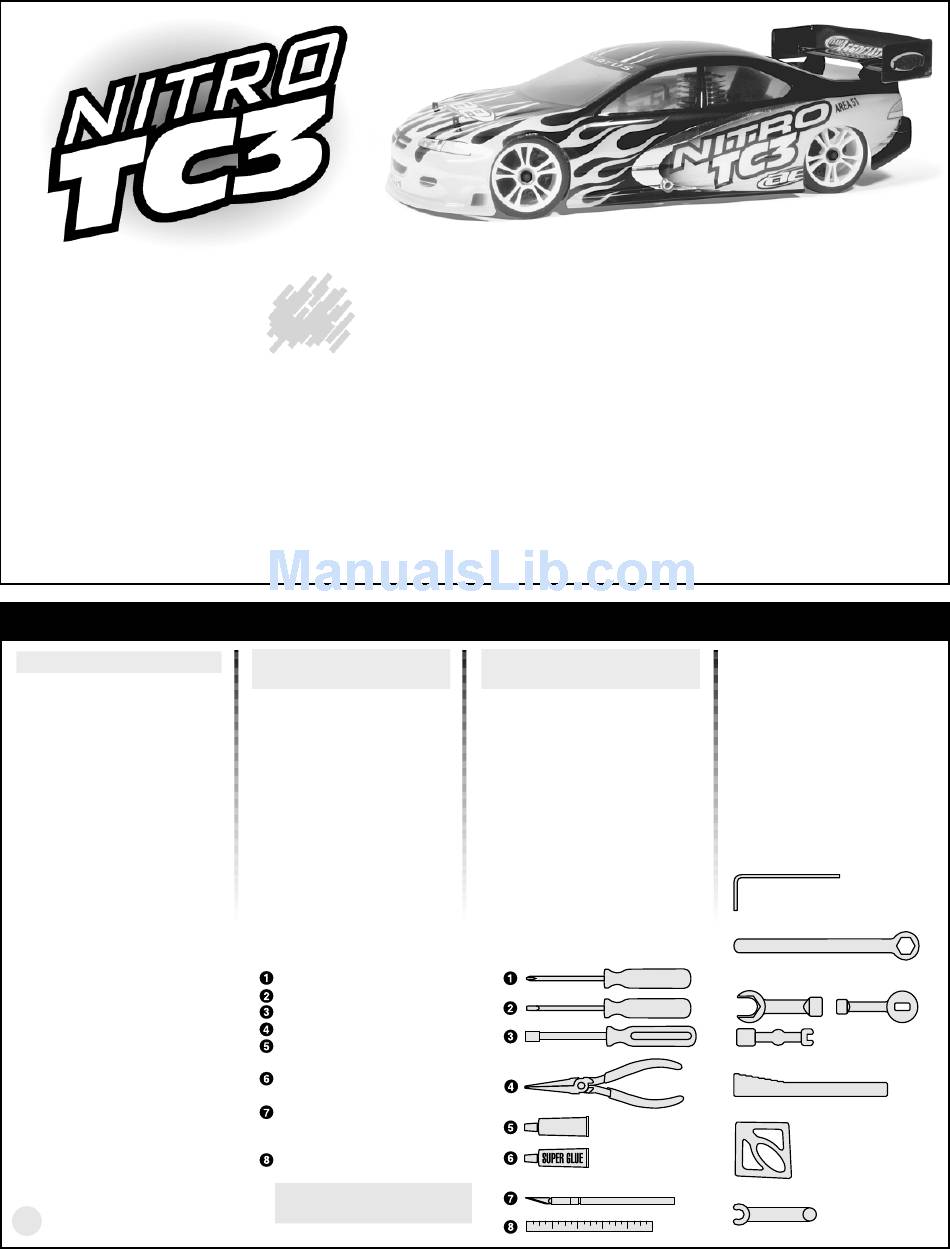

Thank you for purchasing this
Team Associated product.
This manual contains steps
and instructions you will use
to set up your car. Please
read this entire manual before
attempting to start your car.
Follow the directions in this
manual closely to reduce any
problems on start up. We
hope that you will enjoy your
new Team Asssociated car.
WARNING!
Do not use a power
screwdriver to install screws
into nylon, plastic, or
composite materials. The
fast rotation speed can heat
up the screws being
installed. They can break
the molded parts or strip the
threads during installation.
2
T E A M N T C 3 K I T
KIT INCLUDES:
Threaded shocks.
2-speed Transmission.
Pro-Line wheels & tires.
Aluminum MIP CVD's.
Associated steel turnbuckles.
Also includes:
6061 T6 aluminum chassis.
Precision rubber-sealed ball
bearings.
Tuned pipe and manifold.
R E Q U I R E D E Q U I P M E N T T O R U N Y O U R K I T
for the pull start version of
Team Kit #2030:
Glow plug starter.
Model car fuel.
Fuel bottle.
Receiver battery pack.
Glow plugs (AE #MC-59).
R/C two channel surface
frequency radio system
with two servos.
.12 or .15 c.i. glow fuel R/C
engine.
200mm touring car body.
YOU WILL NEED THESE TOOLS
TO ASSEMBLE YOUR KIT
Phillips screwdriver #2.
1/8" flat head screwdriver.
5/16" driver or glow plug wrench.
Needlenose pliers.
Thread locking compound (#1596
Locking Adhesive or equivalent)
Super glue or tire adhesive
(#1597).
Hobby knife WARNING! This knife
cuts plastic and fingers with equal
ease, so be careful.
Precision ruler.
YOUR ENGINE MAY REQUIRE
TOOLS NOT LISTED HERE.
Log on to www.rc10.com and get your FREE computer wallpaper!
for the non pull start version of
Team Kit #2031
Glow plug starter.
Model car fuel.
Fuel bottle.
Receiver battery pack.
Glow plugs (AE #MC-59).
Starter box or electric hand starter
with car starter donut
12 volt battery for starter system.
R/C two channel surface
frequency radio system
with two servos.
.12 or .15 c.i. glow fuel R/C engine.
200mm touring car body.
WARNING! Always
use hand and eye
protection with cyano-
acrylic glue!
TOOLS SUPPLIED
Allen wrenches (#6950)
, .050", 1/16", 3/32", 5/64"
Clutch nut wrench (#1721)
Molded tools (#6956):
Droop gauge (#3987)
8
7
6
5
4
3
2
1
0
Camber/toe-in gauge (#1719)
Track width/ride height tool (#1719)
