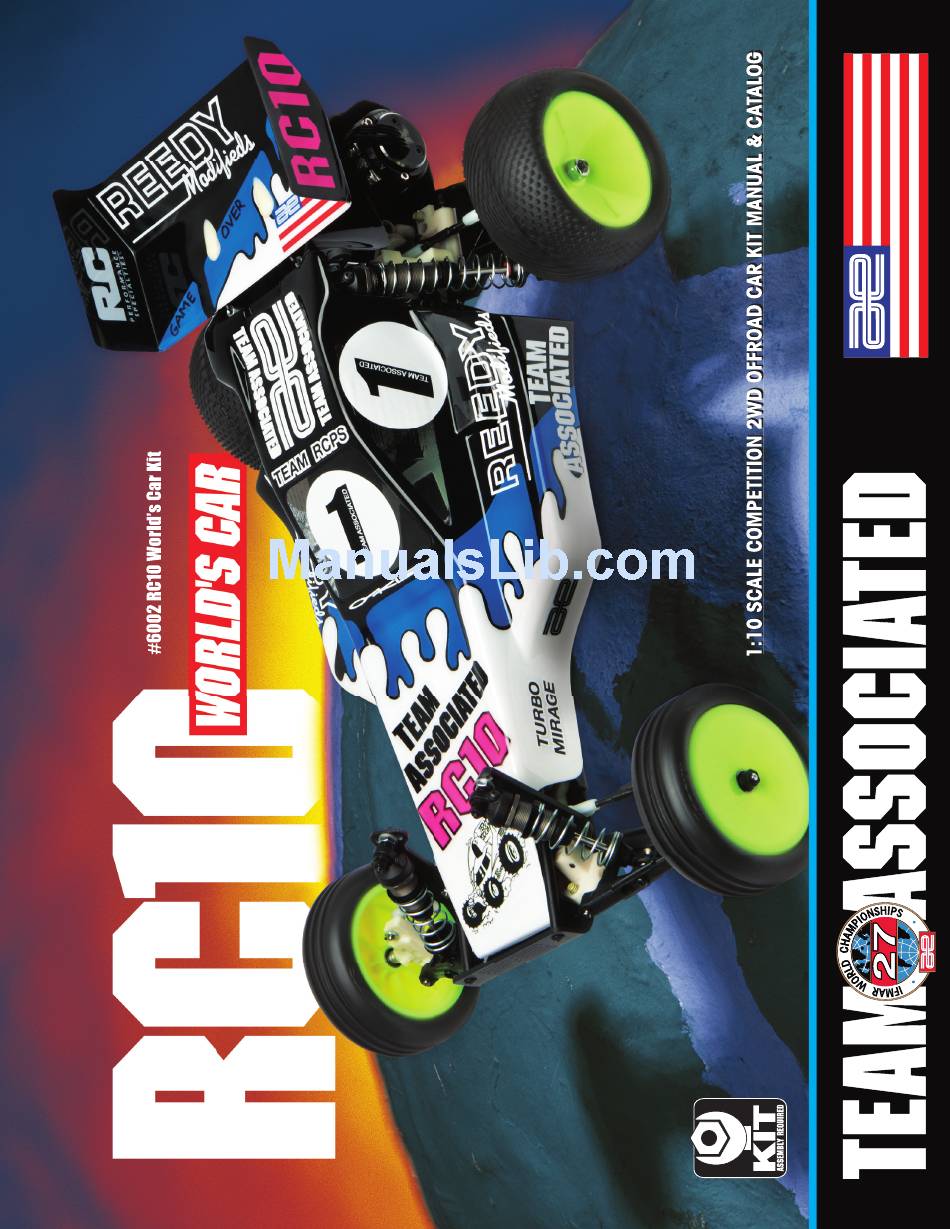

  • Page 2: Cover

    • FT Hex Wrenches (AE # 1655) • Needle Nose Pliers • Multi Tool (AE # 7494) • Soldering Iron • Calipers or a Precision Ruler • Green Slime shock lube (AE # 1105) Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 3 :: Hardware - 1:1 Scale View Cap Head (shcs) Button Head (bhcs) Flat Head (fhcs) 4-40x1/4 (6285) 4-40x3/8 (6292) 0-80x3/16 (6613) 4-40x5/16” (6932) 4-40x1/2 (6922) 2-56x1/8 (9645) (4145, aluminum) 4-40x3/16 (6920) 4-40x3/8 (6924) Flat Head (fhps) w/hole (6929) 4-40x1/4 (6288) 8-32x1/4 (6931) 4-40x1/2 (6925) 4-40x3/8 (6917)

  • Page 4: Table Of Contents

    :: Table of Contents 1....Cover 11 - 12..Turnbuckles Build (Bag F) 2....Introduction 12 - 14..Shocks Build (Bag G-GG) 3....1:1 Hardware “Fold Out” 14 - 15 ..Chassis Build 4....Table of Contents (Bag H-HH) 5....Nose Plate / Steering Build 15 - 16..

  • Page 5: Nose Plate / Steering Build

    2/14 :: Nose Plate / Steering Build - Bag A-AA - Step 1 You can use 2 or 3 6331 3323 #3323 #8 washers RC10 Body #8 Aluminum based on body height Washer (thick) 6271 Mounts preference. Ballstud (white) .20 (silver) .20 (silver) 6309 RC10WC...

  • Page 6: Front Suspension Build

    :: Front Suspension Build - Bag B - Step 1 6273 7260 LEFT LEFT 6936 Ballstud 4-40 6273 #4 Washer, .30 (silver) Plain Ballstud Aluminum .30 (silver) 7222 6225 Wide Front RC10WC Axle Inline Steering Blocks Press stub axles into steering blocks. Use a hard surface 6210 to push down on!

  • Page 7: Transmission Build

    :: Transmission Build - Bag C-CC - Step 1 6579 6579 6581 Diff Drive Diff Drive 3/32 carbide Ring Ring diff balls The diff gear has four molded dimples on one side. The diff balls should be installed on the opposite side of 6577 6578 the dimples.

  • Page 8: Bag C-Cc

    :: Transmission Build - Bag C-CC - Step 4 3977 Bearing, 3977 3/16 x 3/8” Bearing, 3/16 x 3/8” 6569 RC10WC Idler Gear 9361 Idler Gear Shaft 6564 RC10WC Transmission 3976 Case Bearing, (L & R sides) 3/8 x 5/8” :: Transmission Build - Bag C-CC - Step 5 6603 6603...

  • Page 9: Rear Bulkhead Build

    :: Rear Bulkhead Build - Bag D-DD - Step 1 6924 6295 4-40 x 3/8 4-40 Nuts SHCS 6271 Ballstud 6936 .20 (silver) Cut the #4 Aluminum bulkhead for Washer a more authentic look to the original Worlds car. 6932 4-40 x 5/16 6927 SHCS...

  • Page 10: Rear Suspension Build

    :: Rear Suspension Build - Bag E - Step 1 Forward 6360 holes holes RC10 Rear Arm Mounts 6380 RC10 Rear Inner Hinge Pins 6355B RC10WC Rear Arms, (black) 6280 6299 8-32 x 1/2 E-clip FHPS Build left and (small) Build left and Build left and right sides!

  • Page 11: Turnbuckles Build

    :: Rear Suspension Build - Bag E - Step 4 6381 RC10 Rear Outer Hinge 6299 Build left and Pins E-clip right sides! (small) :: Turnbuckles Build - Bag F - Step 1 Note: The servo turnbuckle will be set aside and built when the servo is built and installed into the chassis on page 15.

  • Page 12: Shocks Build

    :: Turnbuckles Build - Bag F - Step 2 6262 6279 Turnbuckle, Ball cups 1.65” (white) Front Camber Turnbuckle 0.86” (22mm) Orient the notch to the left throughout the car. It indicates which end has the left hand threads! Build left and right sides! :: Turnbuckles Build - Bag F - Step 3 6263...
  • Page 13 :: Shocks Build - Bag G-GG - Step 2 7438 6469 V2 .71 Shock cap Threaded o-ring Body (front) 5407 Red O-ring 7481 5407 (use for V2 1.32 rear shocks Threaded O-ring only) Body (rear) 6468 4187 Shock Nylon Pivot Ball 6471 Spacers 7484...

  • Page 14: Chassis Build

    :: Shocks Build - Bag G-GG - Step 5 6473 Shock Bushing 6472 Plastic Nut 6927 4-40 X 3/4” Install two SHCS front shocks! :: Shocks Build - Bag G-GG - Step 6 6473 Shock Bushing Note: Use the two washers (#6936) when running the long wheelbase.

  • Page 15: Servo Build

    :: Chassis Build - Bag H-HH - Step 2 6925 6339 4-40 x 1/2” RC10WC SHCS 6333 Battery RC10 Strap Battery not Battery included! 6292 4-40 x 3/8” FHCS :: Chassis Build - Bag H-HH - Step 3 Note: You can sand the end of the battery strap to better fit between the battery pack and the rear bulkhead.
  • Page 16 :: Servo Build - Bag I - Step 2 Receiver ESC not included! included! 6727 6922 Servo tape 4-40 x 1/2” FHCS :: Wheels / Tires and Body - Bag J - Step 1 Motor not included! 6566 RC10WC Gear Cover and Plug 31531 3 x 6mm...
  • Page 17 :: Wheels / Tires and Body - Bag J - Step 3 3977 6952 Bearing, 8-32 Steel 3/16” X 3/8” Locknut 6222 4-40/5-40 Nylon Locknut, Build left and Build left and black right sides! right sides! :: Wheels / Tires and Body - Bag J - Step 4 Painting Tips: 6332 Body and Wing:...

  • Page 18: Tuning Tips

    :: Tuning Tips Tips for Beginners: Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your vehicle will not be beneficial if you can’t stay on the track. Your goal is consistent laps. Once you can get around the track consistently, start tuning your vehicle.

  • Page 19: Ride Height

    :: Tuning Tips (cont.) Front Camber Links: Changing the length of the camber link is considered a bigger step than adjusting the ball end height on the tower. Shortening the camber link will give the front end less roll and quicken steering response. Lengthening the camber link (or raising the ball end) will give the front more roll and slower steering response.
  • Page 20 :: Shocks 3959 Threaded Shock Collar O-Ring 6428 4187 Nylon Spacer, 1/32” (.030) 5407 Red O-Rings 9645 6299 6299 1/8” E-Clips 6428 Shock End Cap, molded composite 6465 6459 Shock Shaft, 1.02” stroke 6460 Shock Shaft, .71” stroke 6469 3959 6299 6465 Shock Piston, (1, 2, 3)
  • Page 21 :: Turnbuckles / Servo 6260 Turnbuckle, 1.00” 6262 Turnbuckle, 1.65” 6936 6337 6263 Turnbuckle, 2.06” 6264 Turnbuckle, 1.375” 6271 Short Ballstud, stainless steel, short 6279 White Ball Cups 6337 6337 RC10 Servo/Antenna Mount 6922 6922 4-40 x 1/2” FHCS 6924 6924 4-40 x 3/8”...
  • Page 22 :: Front Arm 3977 Bearing, 3/16” X 3/8” 6206 Front Suspension Arm, wide, black 1ea. 6208 RC10 Front Arm Mounts 1ea. 6210 RC10 Front Caster Blocks, 30 deg 1ea. 6222 4-40/5-40 Nylon Locknut, black 6299 6223 RC10 King Pin w/Clips 6225 RC10WC Inline Steering Block 1ea.
  • Page 23 :: Front Shock Tower 6232 RC10WC Front Shock Tower 6472 6271 Short Ballstud, Stainless Steel, .20 6473 6936 6295 4-40 Nuts 6ea. 6472 6472 Plastic Nut 6927 6473 Shock Bushing 6925 4-40 x 1/2” SHCS 6927 4-40 x 3/4” SHCS 6295 6295 6936...
  • Page 24 :: Rear Bulkhead 4436 Set Screw, 4-40 x 5/16” 6332 6189 RC10WC Wing Mounts (White) and wire 6189 6271 Short Ballstud, Stainless Steel, .20 6280 8-32 x 1/2” Aluminum FHPS 6189 6323 RC10 Rear Bulkhead 4436 6932 6327 RC10 Wing Tubes 6331 6331 RC10 Body Mounts (White)
  • Page 25 American Bumper Sticker 29145 XP SC1300-BL Brushless ESC 3820 AE Logo Decal Sheet 29146 XP SC1300DB Brushless ESC 3834 AE Blue Embossed Logo Sticker 29166 XP DS1313 Digital Servo 9787 FT Chassis Protective Sheet 29167 XP DS1015 Digital Servo 29168...
  • Page 26 :: Reedy Motors and ESC’s :: Factory Team and Option Parts Sonic 540 Mach 2 25.5 Competition Brushless Motor Bearing, 1/4 X 3/8, flanged Sonic 540 Mach 2 21.5 Competition Brushless Motor 1401 FT Titanium Turnbuckle, 1.30”, blue Sonic 540 Mach 2 17.5 Competition Brushless Motor 1402 FT Blue Titanium Turnbuckle, 1.375”...
  • Page 27 :: Reedy Batteries :: Qualifier Series Vehicles AA Alkaline 1.5V (4) 7052 Pro Lite 4x4 RTR, 1/10 Scale (ready-to-run) LiPo 65C 7000mAh 7.4V 20111 Rival Mini Monster Truck 1/18 Scale (ready-to-run) LiPo 65C 7000mAh 7.4V 5mm 20119 APEX Mini Touring RTR LiPo 65C 4100mAh 7.4V Shorty 20510 RIVAL Electric Monster Truck RTR, 1/8 Scale...

  • Page 28: Notes

    Associated Winter Jacket (M, L, XL) 1567 FT 8mm Gold Nut Driver SP77** AE 2012 T-Shirt, Blue (S, M, L, XL, 2XL, 3XL) 1589 FT 5/64” Blue Ball Hex Driver SP78** AE 2012 T-Shirt, White (S, M, L, XL, 2XL, 3XL) 1590 FT 3/32”...

  • Page 29: Notes

    Driver: Date: Track: Event: Conditions: Indoor Outdoor Temp. Rev.1 Ride Height / Wheelbase Rear Suspension Camber: Front Rear Ride Ride Rear Hub Height: Height: Carriers: 0° 1.5° Wheelbase: Short Long Front Suspension Camber: Rear Drive Shafts: Toe: Dogbone Steering Block: Caster: Inline 15°...
