Edimax IC-7000PTn User Manual

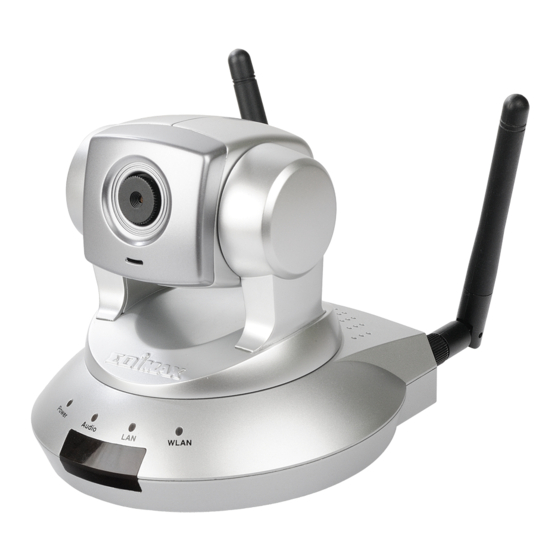

Mechanical pan & tilt ip camera
Hide thumbs Also See for IC-7000PTn:
Table of Contents

Advertisement

Quick Links

Интернет-магазин TELECAMERA.RU

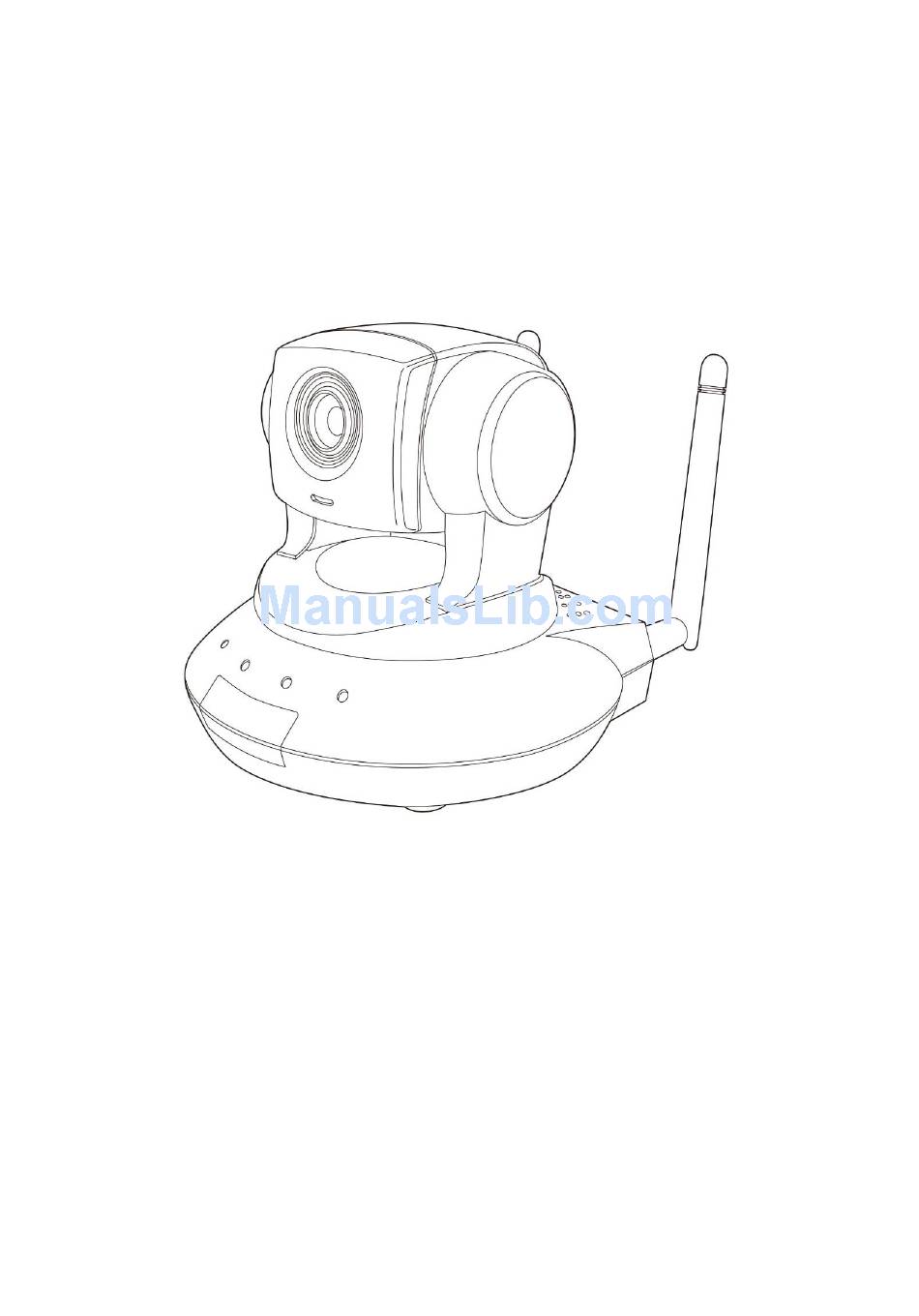

Mechanical Pan & Tilt IP Camera

User Manual

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-7000PTn and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax IC-7000PTn

Summary of Contents for Edimax IC-7000PTn

  • Page 1: User Manual

    Интернет-магазин TELECAMERA.RU Mechanical Pan & Tilt IP Camera User Manual...

  • Page 2: Table Of Contents

    Интернет-магазин TELECAMERA.RU C A T A L O G Chapter I: Familiar with your Internet IP Camera ............4 Package Contents.....................4 Basic Introduction......................4 Product Highlights .....................5 1.4 Familiar with Key Components ..................6 1.5 Descriptions for LED Indicators ...................10 1.6 Camera Installation ...................... 11 Chapter II: Using Web Management Interface ...............14 2.1 Camera Settings ......................14 2.2 Pan and Tilt........................17...
  • Page 3 Интернет-магазин TELECAMERA.RU 3-9 Snapshot .....................66 3-10 Recording ....................66 3-11 Video Playback ..................67 Chapter IV: Appendix.......................68 4.1 Specification.........................68 4.2 Troubleshooting ......................69...

  • Page 4: Chapter I: Familiar With Your Internet Ip Camera

    Интернет-магазин TELECAMERA.RU Chapter I: Familiar with your Internet IP Camera 1.1 Package Contents Thank you for purchasing this IP camera! Before you start to use this IP camera, please check the package contents. If anything is missing, please contact the dealer of purchase and return the package to claim for missing contents.

  • Page 5: Product Highlights

    Интернет-магазин TELECAMERA.RU 1.3 Product Highlights No pre-loaded software required - all you need is a browser like Internet Explorer 6 (and above, with plug-in installed). With supplied video surveillance software, you can connect up to 16 video cameras and view images captured by every camera at the same time.

  • Page 6: Familiar With Key Components

    Интернет-магазин TELECAMERA.RU 1.4 Familiar with Key Components Front View The picture is similar with IC-7000PT Focus Ring Microphone IC7000PTn Power LED Audio LED LAN LED WLAN IC7000PT Power LED Audio LED ACT LED Power LED: Indicates power status Audio LED: Indicates Audio status LAN LED: Indicates LAN activity ACT LED: Indicates Data activity WLAN LED: Indicates Wireless LAN activity...

  • Page 7: Back View

    Ethernet Connector Antenna Power Connector WPS Button SD Card Slot Audio Connector Antenna: Connects to supplied antenna (IC-7000PTn only) Power Connector: Connects to A/C power adapter SD Card Slot: Accepts SD / SD-HC memory card for image / video storage...

  • Page 8: Reset Button

    Интернет-магазин TELECAMERA.RU Side View Reset Button Reset Button: Press the button with pen nib and hold for 5 seconds to reset the camera settings to factory default value.

  • Page 9: Bottom View

    Интернет-магазин TELECAMERA.RU Bottom View Tripod Connector Tripod Connector: Connects to tripod to secure the camera when the camera is not put on a horizontal surface.

  • Page 10: Descriptions For Led Indicators

    Интернет-магазин TELECAMERA.RU 1.5 Descriptions for LED Indicators For IC-7000PTn LED Name Status Description Camera is not powered (camera off) Power Camera is correctly powered (camera on) LAN port not in use LAN port in use Flash Transferring data via LAN port...

  • Page 11: Camera Installation

    Интернет-магазин TELECAMERA.RU 1.6 Camera Installation Please follow the following instructions to set your IP camera up. 1. Unpack the product package and check if anything’s missing. Connect the Ethernet cable to your local area network, and connect the other end to the LAN jack of this IP camera.
  • Page 12 Интернет-магазин TELECAMERA.RU 3. Connect two antennas to the antenna bases, which is located at the back of this IP camera. Place the camera at a secure place, and point the camera to the place you wish to monitor. If you wish to hang the camera on the ceiling or wall, please use the tripod connector (located at the bottom of the camera) to secure the camera.
  • Page 13 Интернет-магазин TELECAMERA.RU 5. Launch Internet Explorer on your computer, and following the instructions given in next section to set the IP camera.

  • Page 14: Chapter Ii: Using Web Management Interface

    Интернет-магазин TELECAMERA.RU Chapter II: Using Web Management Interface 2.1 Camera Settings The first menu after you logged onto web management interface is ‘Camera’, and this is the only menu you can see the real-time image from camera. You can always back to this menu by clicking ‘Camera’ on the top of web management interface.
  • Page 15 Интернет-магазин TELECAMERA.RU The descriptions of every setting in this menu will be given below: Item Description Specifies the moving speed when you use pan / tilt function to point the camera to a new direction. Available options are 1 (fastest) to 5 (slowest). Pan/Tilt Speed Select 1 to move the camera by a faster speed, but you will not be able to control the movement precisely.
  • Page 16 Интернет-магазин TELECAMERA.RU NOTE: When you change any setting(s) listed above, please click ‘Apply’ button so the change(s) will take effect. For following functions, changes will take effect right away. Pan / Tilt Control Moves camera to a new direction. Press one of 8 directional buttons to move the camera, and press ‘H’...

  • Page 17: Pan And Tilt

    Интернет-магазин TELECAMERA.RU 2.2 Pan and Tilt This IP camera supports pan and tilt function, as you explored in last section. You can also make the camera move automatically in pan and tilt menu by defining a set of pre-defined path. You can access this menu by clicking ‘PTZ’...

  • Page 18: Grand Tour

    Интернет-магазин TELECAMERA.RU 2.2.2 Grand Tour You can make the camera move between many pre-defined positions, and define the time you wish to pause at every position; this is called as ‘Grand Tour’. Before you can use this function, you have to define at least 2 positions in ‘Preset Points’ section (refer to last section for detailed information).
  • Page 19 Интернет-магазин TELECAMERA.RU The descriptions of every setting in this menu will be given below: Item Description Input the name of this set of grand tour here. As you may have many sets of grand Name tour, please give it a meaningful name so you can remember the main purpose of this set.
  • Page 20 Интернет-магазин TELECAMERA.RU 2.2.3 Multi-Camera Display If you have more than one IC-5010 IP camera, you can view up to 9 videos captured by every camera, so you can monitor up to 9 places at the same time. Before you do this, please collect the following information: a.
  • Page 21 Интернет-магазин TELECAMERA.RU Please note that the upper-left camera view always show the video of the camera you connected to and cannot be changed. The following example uses four-camera view as example, and the video of the camera you connected to is displaying at upper-left view: The IP address and port will be displayed at the top of camera’s view: When IP and port information is displayed on the top of camera’s view, indicates the camera is configured.
  • Page 22 Интернет-магазин TELECAMERA.RU A new popup window will appear to allow you to set the information of camera. If you have popup blocker installed, you may have to disable it temporarily so you can see the popup window: Please input the information in respective field (Camera IP, HTTP Port etc.), then click ‘Add new IPCam’ button to connect to this IP camera and display it’s view in camera view.

  • Page 23: Network Settings

    Интернет-магазин TELECAMERA.RU 2.3 Network Settings All network-related settings can be found in this menu, and you have to specify TCP/IP parameters in this menu if you want to change IP address, use PPPoE, Dynamic DNS, and activate UPnP function. You can access this menu by clicking ‘LAN’ on the top of web management interface. After you selected ‘Network’, network setting menu will appear.
  • Page 24 Интернет-магазин TELECAMERA.RU The descriptions of every setting in this menu will be given below: Item Description This camera can obtain the IP address from DHCP server automatically (if you have one), or set a fixed IP address. Select ‘DHCP’ to obtain IP address automatically or ‘Static IP Address’...
  • Page 25 Интернет-магазин TELECAMERA.RU 2.3.2 WLAN The descriptions of every setting in this menu will be given below: Item Description Wireless Select ‘Enable’ to activate wireless network function of this IP camera, select Connection ‘Disable’ to disable it. Select the network type of wireless connection. Available options are ‘Infrastructure’...
  • Page 26 Интернет-магазин TELECAMERA.RU MAC Address: If you there are many wireless access points in proximity or some wireless access point hides it’s SSID, you can use MAC address to distinguish them. Signal: Shows the radio signal strength in percent. Channel: Shows the radio channel of this wireless access point. Encryption: Shows the encryption type used by this wireless access point.

  • Page 27: Dynamic Dns

    Интернет-магазин TELECAMERA.RU 2.3.3 Dynamic DNS If your ISP does not give you a fixed Internet IP address (i.e. the Internet address you’re using when you access the Internet is not always the same – ask your ISP for detailed information), you can use this function to help you locate the IP address of this IP camera when you’re away from home or office.

  • Page 28: Upnp

    Интернет-магазин TELECAMERA.RU 2.3.4 UPnP When UPnP function is activated, all UPnP-compatible computers / network devices will be able to discover this IP camera automatically (only those in the same local network). This function is useful and you don’t have to remember the IP address of this IP camera. Simply open ‘Network neighbor’...

  • Page 29: Login Free

    Интернет-магазин TELECAMERA.RU 2.3.5 Login Free This camera provides a method to let unauthorized users to view the image captured by this camera, which is called as ‘LoginFree’. When you wish to let everyone to view the image captured by this camera, or integrate the image with your own web application, you can use this function: Input the filename here, and click ‘Apply’...

  • Page 30: Motion Detection

    Интернет-магазин TELECAMERA.RU 2.4 Motion Detection When you wish to use this camera to monitor the activities, motion detection function will be very useful. Camera will detect the motion in captured image, and take a snapshot when motion is detected. So you can use this camera to keep the safety of the belongings you have.

  • Page 31: Motion Detection

    Интернет-магазин TELECAMERA.RU 2.4.1 Motion Detection You can use this menu to setup basic motion detection settings: The descriptions of every setting in this menu will be given below: Item Description Enable Motion Select ‘Enable’ to enable motion detection, and select ‘Disable’ to disable this Detection function.
  • Page 32 Интернет-магазин TELECAMERA.RU 2.4.2 Motion Region You can define the motion detection region within the image that camera captures, so this camera will ignore motions which are not covered by the motion region setting, and reduce the chances of false alarm. The descriptions of every setting in this menu will be given below: Item Description...
  • Page 33 Интернет-магазин TELECAMERA.RU 2.4.3 Email You can define the destination address of E-mail sending and mail server parameters here. The descriptions of every setting in this menu will be given below: Item Description Input the email recipient’s Email address here. Recipient E-Mail Address Specify the title of sending email, so you can identify the mail sent from this E-Mail Subject...
  • Page 34 Интернет-магазин TELECAMERA.RU 2.4.4 FTP Configuration You can set FTP server’s parameters here. The descriptions of every setting in this menu will be given below: Item Description FTP Server Input the IP address or host name of the FTP server you wish to use here. FTP Port Input the port number of the FTP server you wish to use here.
  • Page 35 Интернет-магазин TELECAMERA.RU 2.4.5 SD Card Configuration You can define the filename and destination folder when saving a file in SD card. The descriptions of every setting in this menu will be given below: Item Description Specify the filename prefix (the texts which will be added before the file sequence File Name Prefix number).

  • Page 36: Camera Information

    Интернет-магазин TELECAMERA.RU 2.5 System Info You can use this menu to get the operational information of this camera: … After you selected ‘System Info.’, a sub-menu will appear. There are 4 sub-menus available here: Detailed descriptions of every setting will be given below. 2.5.1 Camera Information Camera information allows you to set the name and administrator’s password of this camera.

  • Page 37: Date / Time Setting

    Интернет-магазин TELECAMERA.RU 2.5.2 Date / Time Setting This setting allows you to change the date and time of the real time clock in this IP camera. You can set the time manually, or use network time protocol (NTP) to set the time automatically. The descriptions of every setting in this menu will be given below: Item Description...

  • Page 38: Utilities

    Интернет-магазин TELECAMERA.RU 2.5.3 Utilities This menu allows you to upgrade firmware, clear all settings, reboot the IP camera, and switch LED lights on/off. The descriptions of every setting in this menu will be given below: Item Description If you downloaded latest firmware file from our website, you can click ’Browse’ button to pick a firmware file located on your computer’s hard drive and you can upload the firmware file to the IP camera later.

  • Page 39: Status

    Интернет-магазин TELECAMERA.RU 2.5.4 Status This menu provides all information about this IP camera, like firmware version, system uptime, date / time, and network information.

  • Page 40: Account

    Интернет-магазин TELECAMERA.RU 2.6 Account If you wish to allow other people to view the live image captured by this camera, but don’t want to allow them to modify system settings, you can give them user-level user name and password, so they can only view the image and can not change any system setting.
  • Page 41 Интернет-магазин TELECAMERA.RU When a user is added, it will be listed: The descriptions of every setting in this menu will be given below: Item Description Enable or disable this user account. If you just want to remove the access privilege of certain account and will give the privilege back later, you don’t have Yes / No to delete it, you can set to ‘No’...

  • Page 42: Sdhc

    Интернет-магазин TELECAMERA.RU 2.7 SDHC … After you selected ‘System Info.’, a sub-menu will appear. There are 4 sub-menus available here: Please click the SD card setting you wish to set, then refer to instructions given below: 2.7.1 Status Here shows the remaining card space for you.

  • Page 43: Space Alarm

    Интернет-магазин TELECAMERA.RU 2.7.2 Space Alarm When you’re using SD card to store captured image and video clip, you can have this camera to send an E-mail to you when there’s only little remaining space left on SD card. Please note: If you have set E-mail settings in ‘Motion Picture’ function, you can click ‘Copy Mail Config’ button to use the same setting.

  • Page 44: Chapter Iii: Using Surveillance Software

    Интернет-магазин TELECAMERA.RU Chapter III: Using Surveillance Software 3-1 Installing IP Camera Surveillance Software The IP camera surveillance software provides various functions like video recording, after this software is installed, you can use your IP camera to safeguard your property. Please follow the following instructions to install the surveillance software.
  • Page 45 Интернет-магазин TELECAMERA.RU 3. If you need installation program to create a desktop icon or a quick launch icon for you, click all items you need here, than click ‘Next’ to continue. 4. Here lists all options you chose in previous steps, if everything’s correct, click ‘Install’ to start installing procedure, or click ‘Back’...
  • Page 46 Интернет-магазин TELECAMERA.RU 6. The installing procedure will take some time, please be patient. 6. When you see this window, it means the software installing procedure is complete. Please click ‘Finish’ to finish the procedure (IP camera surveillance software will start after you click ‘Finish’ button, if you want to start it later, uncheck ‘Launch IPCam Surveillance Software’...

  • Page 47: Using Ip Camera Surveillance Software

    Интернет-магазин TELECAMERA.RU 3-2 Using IP camera surveillance software You can click ‘IPCam Surveillance Software’ icon from desktop, quick launch bar, or start menu to start the IP camera surveillance software. Before you start: IP camera surveillance software will only work when your monitor’s resolution is ‘1024 x 768’.
  • Page 48 Интернет-магазин TELECAMERA.RU Full screen Click this button to switch to full screen mode (only display all camera’s image), press ‘ESC’ key to quit full screen mode. Click this button and the IP camera surveillance software will switch displaying Scan the image of all connected camera automatically. Click this button once to activate scan function (scan icon will become blue ), click again to stop scanning (scan icon will become white...

  • Page 49: Configure Ip Camera Surveillance Software

    Интернет-магазин TELECAMERA.RU 3-3 Configure IP camera surveillance software 3-3-1 Configure cameras Before you use this IP camera surveillance software, you must configure the camera(s) you wish to connect. Please click ‘System configure’ button and a popup menu will appear: Please select ‘Configure Cameras’ to configure cameras: Note: If you’re prompted by a windows security alert which asks you if you want to block ‘IPCam Viewer’...
  • Page 50 Интернет-магазин TELECAMERA.RU 3-3-1-1 ‘Camera’ tab In this tab you can configure all cameras you wish to connect. Up to 16 cameras can be connected simultaneously: Here are the descriptions of all setting items: Item Description Channel Select the channel number you wish to set. All cameras found on your local network will be displayed in ‘Camera Search’...
  • Page 51 Интернет-магазин TELECAMERA.RU After you’ve set all channels you wish to set, click ‘OK’ to save settings, and if everything’s correct, you’ll see the camera’s image in IP camera surveillance software’s main menu: 3-3-1-2 Schedule Recording In this tab, you can setup scheduled video recording, so you can record the video captured by all cameras you have by a pre-defined schedule.
  • Page 52 Интернет-магазин TELECAMERA.RU Here are the descriptions of all setting items: Item Description Channel Select the channel number you wish to set. You can specify the one-time schedule for selected camera; this schedule One Time Schedules will be executed once only. Click this button and a new window will appear: (One Time Schedules) Please specify the time duration of this one-time schedule (the date and...
  • Page 53 Интернет-магазин TELECAMERA.RU 3-3-1-3 Audio For cameras that support audio, you can use this tab to decide if you wish to hear the audio captured by selected camera. Here are the descriptions of all setting items: Item Description Channel Select the channel number you wish to set. Check this box and the IP camera surveillance software will not play the audio Mute Audio captured by this camera.
  • Page 54 Интернет-магазин TELECAMERA.RU 3-3-1-4 Motion Record With this function activated, only motions captured by the camera will be recorded, so you don’t have to waste hard disk storage space on images you don’t need to pay attention to. WARNING: For applications that security is highly concerned, it’s not recommended to use this function since some tiny changes you may need to know may not be able to trigger the camera and the camera will not start recording.

  • Page 55: General Settings

    Интернет-магазин TELECAMERA.RU 3-3-2 General Settings You can set system-wide settings of this IP camera surveillance software in this menu. 3-3-2-1 ‘General’ tab All general settings like file storage directory and recording spaces can be set here. Here are the descriptions of all setting items: Item Description Set the directory (folder) you wish to store the recorded video and captured...
  • Page 56 Интернет-магазин TELECAMERA.RU 3-3-2-2 ‘E-Mail Setting’ tab If you want to use motion detection function and wish to get an email that contains the image captured by the camera, please setup your email related parameters here first. Here are the descriptions of all setting items: Item Description E-Mail Subject...
  • Page 57 Интернет-магазин TELECAMERA.RU Specify the port number of the SMTP server you wish to use here. By default (and SMTP port the setting of most of SMTP servers) it’s ‘25’. Select ‘Enable’ if your SMTP server requires authentication, select ‘Disable’ if it’s SMTP Auth not required.
  • Page 58 Интернет-магазин TELECAMERA.RU 3-3-2-3 Security If you don’t want other people to access this IP camera surveillance software, you can set a password to protect it. You’ll need to input the password every time you wish to use this IP camera surveillance software: To set password, please use ‘Security’...
  • Page 59 Интернет-магазин TELECAMERA.RU 3-3-2-4 About This tab shows the version number of the IP camera surveillance software you’re using.

  • Page 60: Change Display Layout

    Интернет-магазин TELECAMERA.RU 3-4 Change Display Layout This IP camera surveillance software provides 8 kinds of display layout: Every layout displays different number of camera and camera arrangement, you can click the icon that presents a specific kind of layout, and the video displaying area will change accordingly. Displays the video of 1 camera only.
  • Page 61 Интернет-магазин TELECAMERA.RU Displays the video of up to 8 cameras. Layout style 4: 8 Cameras Displays the video of up to 9 cameras. Layout style 5: 9 Cameras Displays the video of up to 10 cameras. Layout style 6: 10 Cameras Displays the video of up to 13 cameras.

  • Page 62: Full-Screen Modes

    Интернет-магазин TELECAMERA.RU 3-5 Full-screen modes If you want to use all available spaces on your monitor to display surveillance image, you can click ‘Full Screen’ button to switch display mode to full-screen mode. To exit full-screen mode, press ‘ESC’ key.

  • Page 63: Scan

    Интернет-магазин TELECAMERA.RU 3-6 Scan If you have more than one camera configured, and you wish to switch the displaying image between cameras, you can click ‘Scan’ button to switch between all configured cameras. NOTE: If a camera is configured but disconnected, it will still be displayed in a scan sequence (you’ll see nothing and you’ll see ‘Disconnected’...

  • Page 64: Zoom-In / Zoom-Out

    Интернет-магазин TELECAMERA.RU 3-7 Zoom-in / Zoom-out For cameras that support zoom-in / zoom-out function, you can use this function to see more objects that fall in the scope of camera’s view, or enlarge the image size of a certain object to see its detail. Please select a camera in video displaying area by clicking on its image, then click button to see more objects that fall in the scope of camera’s view, or click...

  • Page 65: Ptz

    Интернет-магазин TELECAMERA.RU 3-8 PTZ For cameras that support pan - tilt function, you can change the position that camera points to, to see different places that fall in the scope of camera’s view. Please select a camera in video displaying area by clicking on its image, and then click the directions you wish the camera to move to (total 8 directions available).

  • Page 66: Snapshot

    Интернет-магазин TELECAMERA.RU 3-9 Snapshot You can take a snapshot of selected camera and save it to ‘Snapshot’ sub-folder of pre-defined data directory. Click snapshot button once to take a snapshot; you can take as much snapshot as you want before hard disk is full.

  • Page 67: Video Playback

    Интернет-магазин TELECAMERA.RU 3-11 Video Playback You can playback all recorded video by clicking this button. A new window will appear: You have to search the video file before you can play it. There are two kinds of video search: Time Search (search all videos file that falls in a specific period of time) and Motion Search (search all videos recorded by motion detection function and falls in a specific period of time).

  • Page 68: Chapter Iv: Appendix

    Интернет-магазин TELECAMERA.RU Chapter IV: Appendix 4.1 Specification Max Resolution: 640 x 480 pixels Sensor: 300K pixels 1/4" color CMOS sensor Gain control: Automatic Exposure: Automatic White Balance: Automatic Focal Length: 4.8 mm Aperture: F=1.8 Image (Video Setting) Image compression: MJPEG Image Video Digital 24-bit Color Frame rate: 30fps@QVGA, 20fps@VGA Video resolution: 176 x 144, 320x240, 640x480...

  • Page 69: Troubleshooting

    Интернет-магазин TELECAMERA.RU 4.2 Troubleshooting If the IP camera is not working properly, before you contact the dealer of purchase for help, please check the troubleshooting list here, this may help you to solve the problem by yourself and therefore saves your valuable time.
  • Page 70 Интернет-магазин TELECAMERA.RU to send image by anti-spam mechanism. Email or FTP, but nothing is received b. Please make sure you have enough permission for FTP uploading (You can try this by clicking ‘Upload a test file’ button). c. Make sure the user name and / or password of SMTP server is correct, if your SMTP server requires authentication (You can try this by click ‘Send a test Email’...
