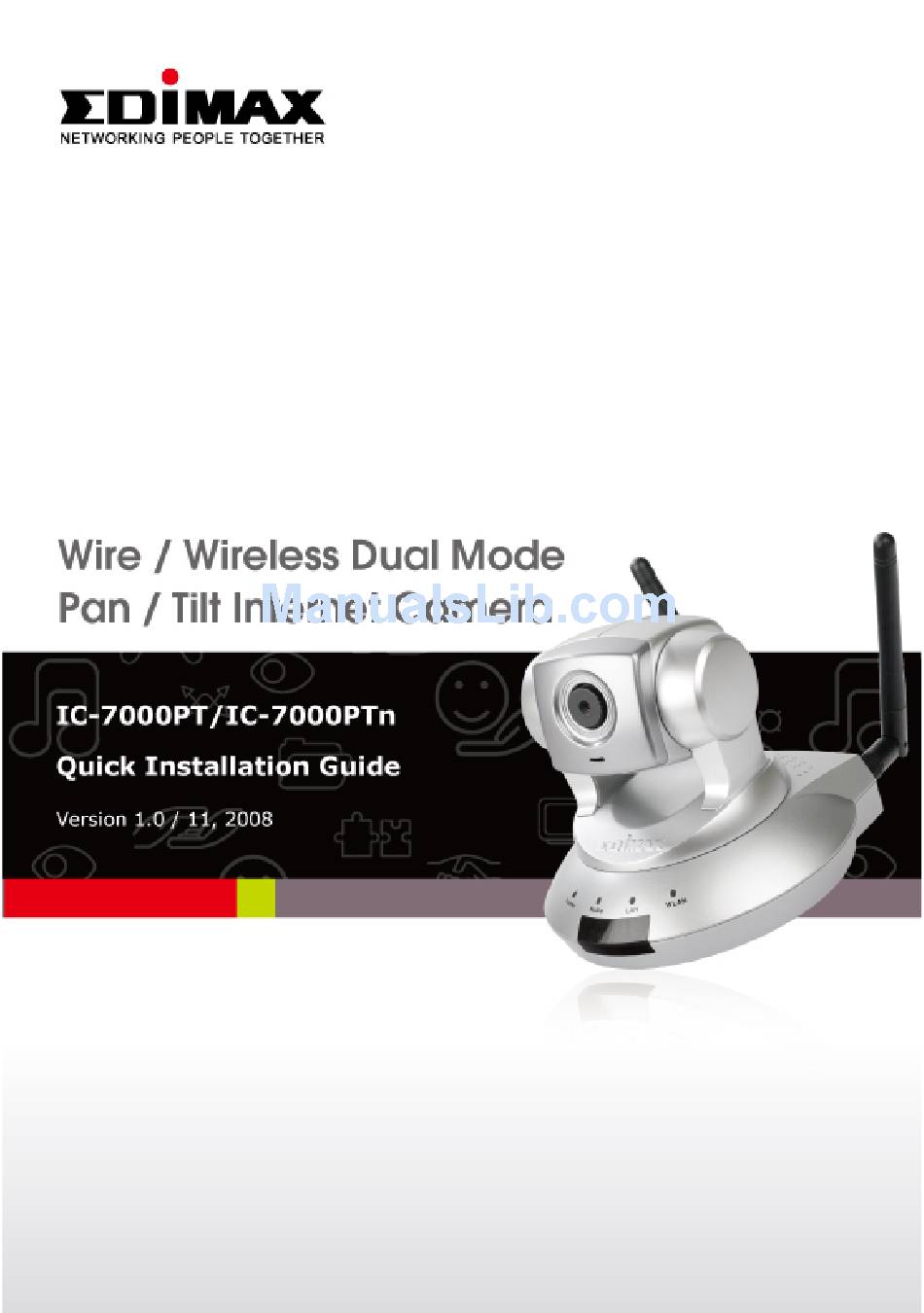

Edimax IC-7000PT Quick Installation Manual
  1. Manuals
  2. Brands
  3. Edimax Manuals
  4. IP Camera
  5. IC-7000PT
  6. Quick installation manual

Edimax IC-7000PT Quick Installation Manual

Wire/wireless dual mode
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-7000PT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax IC-7000PT

Summary of Contents for Edimax IC-7000PT

  • Page 2 Multi-Languages QIG in Driver CD Český: Českého průvodce rychlou instalací naleznete na přiloženém CD s ovladači Deutsch: Finden Sie bitte das deutsche QIG beiliegend in der Treiber CD Español: Incluido en el CD el QIG en Español Français: Veuillez trouver l’français QIG ci-joint dans le CD Italiano: Incluso nel CD il QIG in Italiano Magyar:...
  • Page 3 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this Company.

  • Page 4: Product Information

    Pan and Tilt with a viewing angle 355 degree horizontally and 120 degree vertically. Users can view and control remotely via a browser or Edimax utility to monitor a wider range than normal IP camera. It can be preset a specific angle to make the camera focus on this point accurately and quickly.

  • Page 5: Hardware Installation

    4. Hardware Installation Please follow the following instructions to set the camera up: 1. Connect the Ethernet cable to your local area network, and connect the other end to the LAN jack of this IP camera. NOTE: Skip this step if you use IC-7000PTn with wireless LAN only. 2.
  • Page 6 3. Connect the antennas to the antenna base (for IC-7000PTn only) located at the back of the IP camera. 4. Place the IP camera at a secure place, and point the camera to the place you wish to monitor. If you wish to hang the camera on the ceiling or wall, please use the tripod connector (located at the bottom of the IP camera as shown on the below) to secure the camera.

  • Page 7: Software Installation

    5. Software Installation Follow the simple steps below to run the Install Wizard to guide you quickly through the Installation process. The following installation is implemented in Windows Vista. The installation procedures in Windows XP and 2000 are similar. 1. Insert the CD shipped along with the IP Internet Camera into your CD-ROM drive.
  • Page 8 3. The system will start the installation procedures. Click ‘Next’ to continue installation. 4. If you wish to install the software program in an alternate location, click ‘Browse’; otherwise click ‘Next’ to move on to the next step.
  • Page 9 5. Click ‘Next’ to move on to the next step. 6. Click ‘Install’ to start installing the program, the system will install the program automatically.
  • Page 10 7. Click ‘Finish’ to complete the software installation. 8. If you have Windows Defender or other 3 party firewall software, you may see the following or similar message, Please click ‘Unblock’ to let IP camera Utility pass the firewall, or the IP camera utility may not be able to function properly...
  • Page 11 9. A new folder named ‘IP Camera’ in ‘All Programs’ will be created: Admin Utility and Uninstall. You can use these 2 utilities to connect to the IP camera and use the functions of the camera without web browser. 10. When the installation is completed, the system will auto run the ‘Administrator Utility’.
  • Page 12 11. You’ll be prompted to input user name and password. The default user name is ‘admin’ (you can not change it), and the default password is ‘1234’, and then click ‘OK’ to continue. 12. IP Camera is working through the network (TCP/IP Protocol). The IP address setting must be correct, or you cannot access to the IP camera.

  • Page 13: Web Management Interface

    6. WEB Management Interface Use WEB browser (Internet Explorer 5.5 or above) to connect to the IP you get by the wizard (type the address in the address bar of web browser) You’ll be prompted to input user name and password: User name: admin / Password: 1234 After logged on, you should see the following messages appear at the top of Internet Explorer, click on the message, and click ‘Install...
  • Page 14 When you see this message, click ’Install’ to install required ActiveX control. You should be able to see the images captured by the IP camera now. For advanced functions, please refer to instructions given in user manual (on supplied CD-ROM)

  • Page 15: R&Tte Compliance Statement

    R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

This manual is also suitable for:

Ic-7000ptn
