- Data Brochure
Boiler Control 263

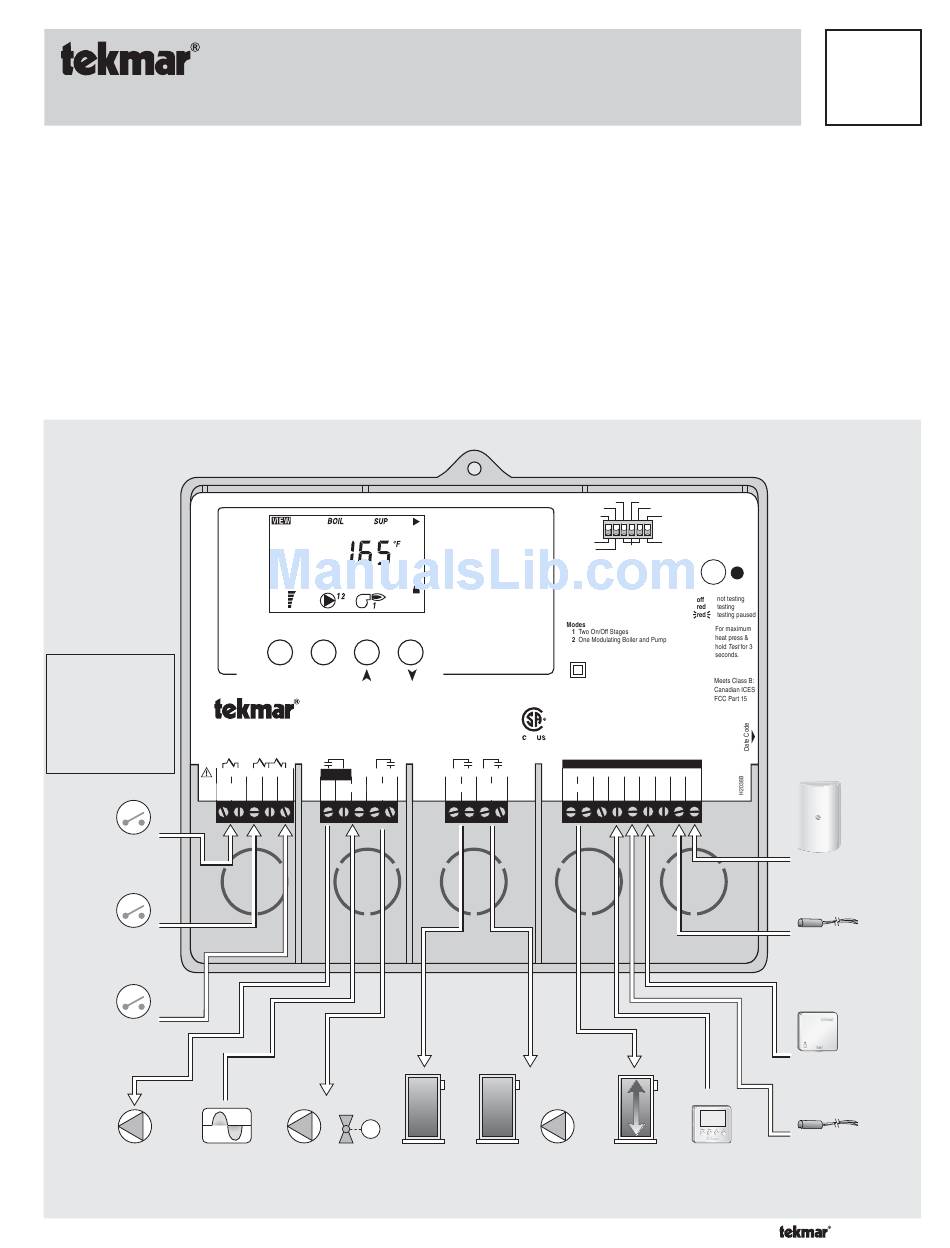

The tekmar Boiler Control 263 can control the supply water temperature from a single modulating boiler or up to 2 on / off stages
based on outdoor temperature, domestic hot water requirements, or setpoint requirements. A large easy to read display provides
current system temperatures and operating status. The control has an internal setback timer, which can have 2 events per day on a
24 hour, 5-1-1 day or 7 day schedule.
Additional functions include:
•
Outdoor Reset
•
Installer and Advanced access levels
•
Primary pump output
•
Pump exercising
•
Pump purging
•
Boiler demand for space heating loads
•
DHW demand for domestic hot water loads
Note:
Boiler, DHW, or
setpoint demand
must be powered
with 20 to 260 V (ac)
Boiler Control 263
before the boiler is
Two Stage / One Modulating Boiler, DHW & Setpoint
able to fire.
1 2 3
Boiler
Demand
Input
Boiler
Demand
Input
DHW
Demand
Input
Setpoint
Demand
Output
Input
Primary
115 V (ac)
Pump
Power Supply
Menu
Item
4
5
6 7
8
9 10
DHW
DHW
Com
Setp
Prim
Power
Dem
Dem
Dem
P1
L
N
Pmp/Vlv
OR
M
Output
DHW Pump or
Output
DHW Valve
Boiler
•
Setpoint demand for setpoint loads
•
Optional indoor sensor for room air temperature control
•
Test sequence to ensure proper component operation
•
Internal setback timer for energy savings
•
Setback input for energy savings
•
CSA C US certified
Soft Stop
Setback
Advanced
Boiler Demand
DHW Demand
Installer
Setpoint Demand
None
Modulation
Priority Override
Made in Canada by
tekmar Control Systems Ltd.
Power
Relays
Demands
Signal wiring must be rated at least 300 V.
Do not apply power
11 12
13
14
15
16
17 18 19 20 21 22 23
Relay
Relay
Mod 1 mA
Com
1
1
2/P2
+
-
OR
Output
Output
Boiler
Pump
1 of 36
Rotate
DHW Sensor
Off
Exercise
Off
Test
115 V ±10% 50/60 Hz 600 VA
230 V (ac) 5 A 1/3 hp, pilot duty 240 VA
20 to 260 V (ac) 2 VA
UnO
DHW Indr
Com Boil Out
Sw
Output
Output
tekmar
Boiler
Timer
© 2009
D 263
03/09
Input
Outdoor
Sensor
Included
Input
Universal
Sensor
Included
Input
Indoor
Sensor
Optional
Input
Universal
Sensor
Optional
D 263 - 03/09
