1130 Lcd Unit - Lenovo ThinkPad P50 Hardware Maintenance Manual

1130 LCD unit

For access, remove these FRUs:
• "1010 Battery" on page 65
• "1020 Bottom cover" on page 66
• "1030 Storage drive" on page 66
• "1060 Keyboard" on page 73
• "1080 Wireless LAN card" on page 78
• "1090 Wireless WAN card " on page 79
• "1100 Keyboard bezel assembly" on page 81
• "1120 Hinge caps" on page 86

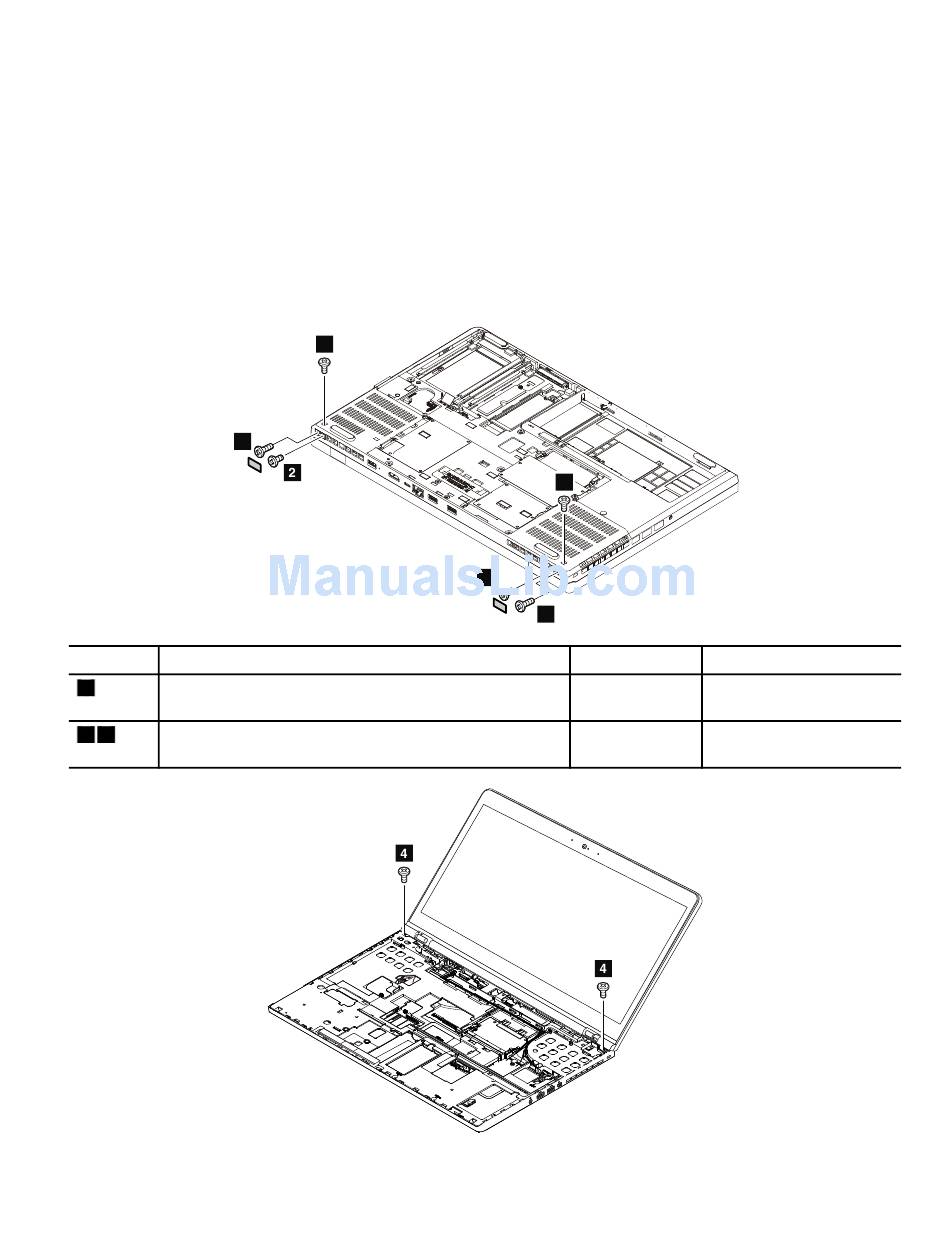

Removal steps of the LCD unit
1
Step Screw (quantity)
1
M2.5 × 8 mm, flat-head, nylon-coated (2)
2 3
M2.5 × 5 mm, flat-head, nylon-coated (2)
3
2
3
1
Color Torque
Black 0.294 Nm
(3.0 kgf-cm)
Black 0.294 Nm
(3.0 kgf-cm)
.
Chapter 9 Removing or replacing a FRU
87
