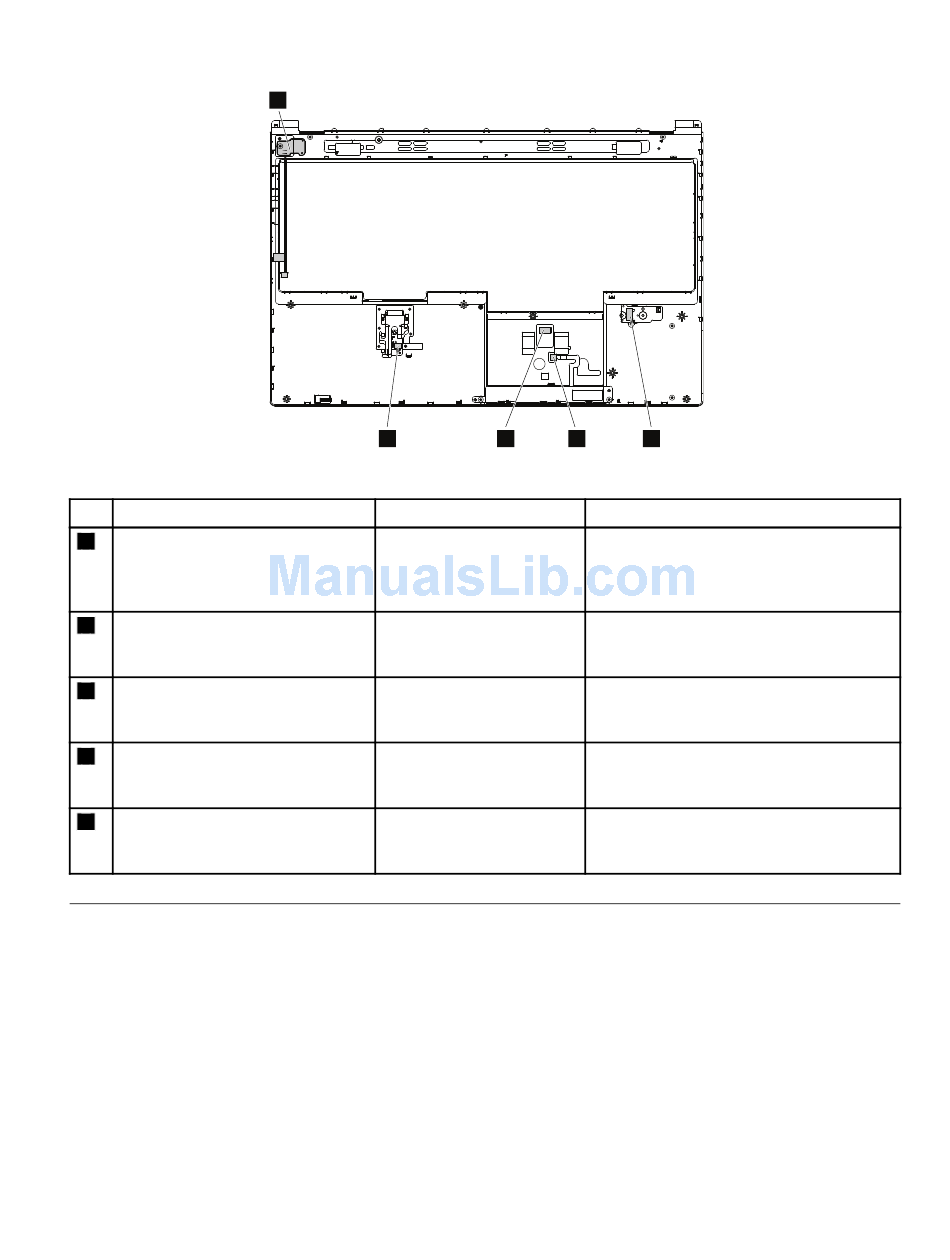

Keyboard bezel connector and cable
Table 13. Keyboard bezel connectors and cables
No. Connector/feature
1
Power button card
2
Color sensor card
3
Click button connector
4
Trackpad cable connector
5
Fingerprint reader connector

Looking up FRU information

For detailed FRU information, including part numbers, descriptions, and substitution part numbers, go to:
http://www.lenovo.com/serviceparts-lookup
1
5
Internal cable required
Power button card cable
Color sensor cable
Click button cable
Trackpad cable
Fingerprint reader cable
4 3 2
Cable connection
Connect one end of the power button
card cable power button connector on the
system board, and the other end to this
connector.
Connect one end to the color sensor
connector on the system board, and the
other end to this connector.
The click button comes with cable.
Connect the click button cable to this
connector.
Connect one end to the trackpad connector
on the system board, and the other end to
this connector.
Connect one end to the fingerprint reader
connector on the system board, and the
other end to this connector.
57
.
Chapter 7 Locations
