Remote Control Unit; Transport - Numark CDN-88 Operating Manual

CDN-88 Dual CD Player

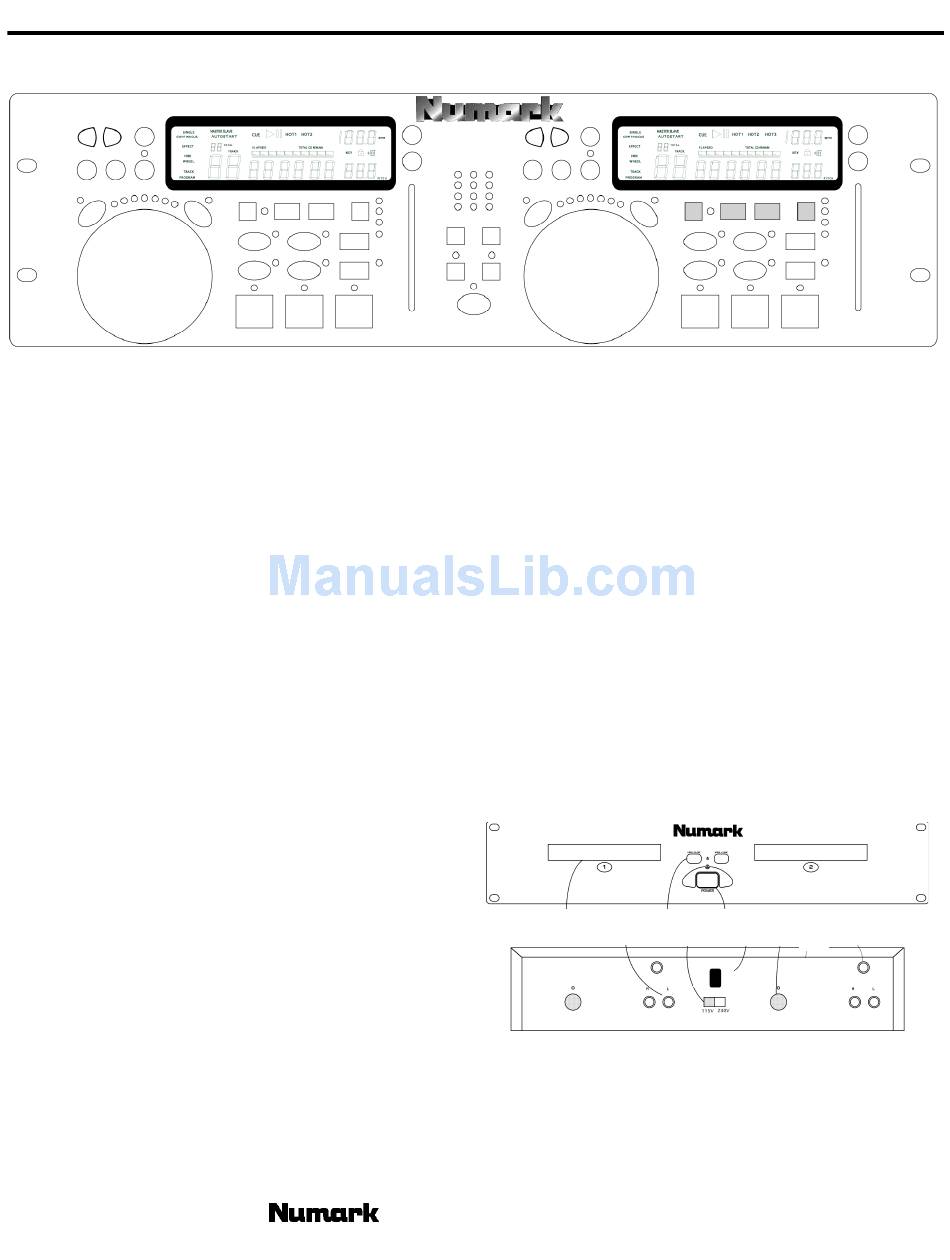

DESCRIPTION CDN-88REMOTE FEATURES
10
7 8 9
13
12
14
3
1. OPEN/CLOSE- Pressing will open or close the disc tray on the

transport.

2. LCD DISPLAY- Indicates all the functions, as they are
occurring, with the CD.
3. WHEEL- Used for various functions such as cueing, scratching,
pitch bend, searching, and effect control
4. PLAY/STUTTER- To start the music from the initial cue point.
5. PAUSE- To pause the music.
6. CUE- To move the music to the cue point and preview the
selection.
7. SING- To set play mode in single or continuous play.
8. TIME- Controls display indication of time mode.
9. SEARCH- Puts wheel in search mode.
10. <<, >>, +10- Used for selecting tracks.
11. PROGRAM- Used for setting track order and various special
commands.
12. EFFECT SELECT/HOLD- Used to determine desired effect.
13. EFFECT INDICATOR- Shows selected effect.
TRANSPORT FEATURES
27. DISC TRAY- Place your CD in here.
28. OPEN/CLOSE (Disc Tray Open/Close) - Press to load or eject
the disc. NOTE: Tray will not open unless the disc is not in play.
29. POWER BUTTON – To turn the machine on and off.
30. RCA AUDIO JACKS - Connect your CD player to your mixer
from this line level output.
31. VOLTAGE SELECTOR - Set this switch to the voltage for your
location.
32. POWER CORD - Plug your unit into a power outlet.
33. CONTROL CONNECTOR - Plug your control cables for each
unit into here and the back of the remote unit.
