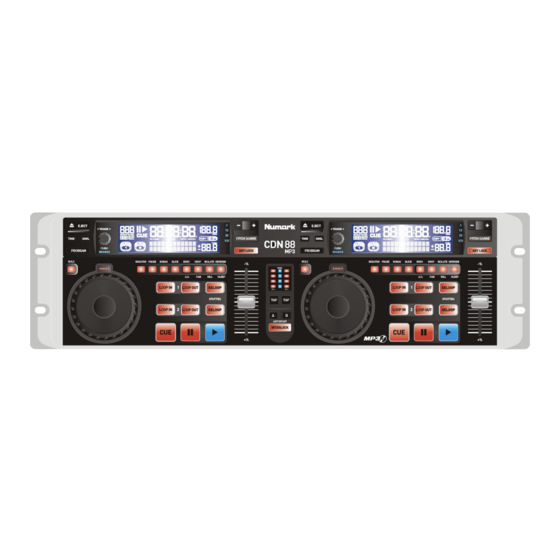

Numark CDN88 Service Manual

FUNCTION
PITCH RANGE...................Actives and Sets pitch Slider range
PITCH BEND +,-.................Works as pitch bend and Controls Key
KEY LOCK........................Used for various Key Control
TIME................................Controls display indication of tme mode
SINGLE.............................To Set play mode in Single or Continuous
PROGRAM........................Used for setting track order and various
CUE.................................To move the music to the cue point and
PAUSE..............................To pause the music
PLAY...................................To start the music from the initial cue
LOOP IN/OUT/RELOOP.......Used to Set stutter and loop in points /
TRACK/ PUSH SEARCH.......Rotaion – selects tracks
TAP.................................Tracks the beats and measure position of
INTERLOCK......................Links both players for beat alignment
EFFECT............................Used to determine desired effect
SERVICE MANUAL
SPECIFICATION
and pitch function
Play
special Commands
preview the Selection
poine
Used to set loop out points and release
the loop/ Use for repeated play (stutter)
from the loop in poit, repeating a previously
set, and hot start
Pressing while rotating – selects tracks +10
Pressing once – puts wheel in seatch mode
music
MODEL: CDN88 MP3
STANDARD
OUTPUT LEVEL.....................1.3 0.2 Vms (1KHZ OdB)
S/N RATIO.............................MORE THAN 70dB
FREQUENCY RESPONSE.........20Hz~20KHz 2 dB
DYNYAMIC RANGE................MORE THAN 80dB
CHANNEL SEPARATION..........MORE THAN 70dB
CHANNEL BALANCE............... 1dB
HARMONIC DISTORTION.........LESS THAN 0.03%
