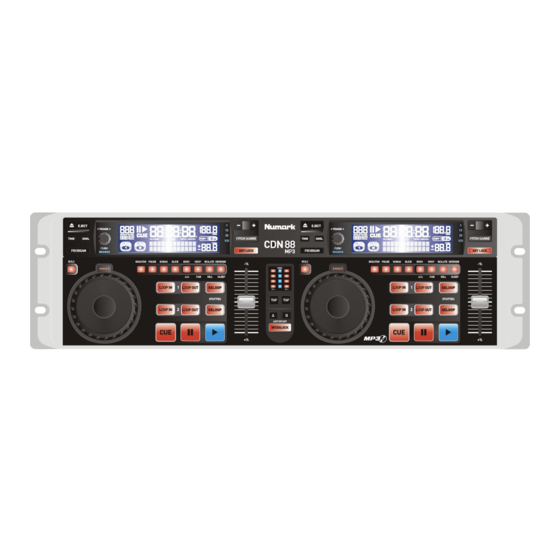

- Page 1 CDN88 MP3 Professional Dual CD / MP3 Player REFERENCE MANUAL ENGLISH ( 3 – 21 )
-
Page 3: Ground Rules
Connect the stereo outputs to power amplifier(s), tape decks, and/or other audio sources. Plug all devices into AC power. Switch everything on in the following order: • CDN88 MP3 and other audio input sources (i.e. turntables, CD players, etc.) • Mixer •... -
Page 4: Front Panel Features
PAUSE – To pause the music. in their folders/subfolders). When creating CUE – To move the music to the Cue Point and preview an MP3 CD for use with CDN88 MP3, we recommend placing them in only one folder the selection. - Page 5 RELOOP – Used for either repeating a previously set loop or seamlessly stuttering on the last set Cue Point. AUTO START – Used for setting alternating play start (relay play) between attached units. TAP – Tap this button in time with the beats of the music on that deck. This will enter a new BPM ("beats per minute") reading for that track.
-
Page 6: Lcd Features
LCD FEATURES 2 1 3 14 21 20 16 17 PLAY – Active while the unit is actually playing a CD. PAUSE – Active when the unit is paused. CUE – Flashing when the unit is setting a Cue Point. Active when the unit is paused at a Cue Point. SINGLE –... -
Page 7: Basic Operations
BASIC OPERATIONS EJECT: Press to load or eject the disc. The drawer will automatically close to protect the tray from accidental damage while open. (The tray will not open while a disc is playing.) To program the automatic close time, hold down PROGRAM and press EJECT. The LCD will indicate options of 30 seconds, 60 seconds, 120 seconds, and "no"... -
Page 8: Setting Cue Points
SETTING CUE POINTS PLAY and CUE: Pressing PLAY / STUTTER starts playback. Pressing CUE will return the track to the last place playback was started. This is called the Cue Point. By alternately pressing PLAY / STUTTER and CUE, the track may be returned and played from the Cue Point any number of times. This is called "back cueing."... - Page 9 PITCH BEND and JOG WHEEL: These controls temporarily change the tempo of the music so the beats of the two decks can be aligned. The faster you rotate the JOG WHEEL or the longer you hold the "–/+" buttons, the greater the change in tempo. When the button or wheel is released, the deck will return to its usual tempo.
- Page 10 BEATKEEPER & INTERLOCK The CDN88 MP3 includes the Numark-patented Beatkeeper™ technology. Beatkeeper automatically tracks beats based on the frequencies and rhythmic patterns in the music. It detects and displays the track's BPM in the LCD and displays four-count information (i.e., where you are in a four-beat measure) in the MARCHING BAR GRAPH.
-
Page 11: Auto Start
KEY LOCK & KEY CHANGE The CDN88 MP3 uses exclusive technology to lock the key of the music in place at the current pitch or change it from the current position. This is different than “master tempo” often found on many modern units because KEY LOCK locks to whatever the current pitch position is (rather than the "0%"... -
Page 12: Fader Start / Remote Switch Start
FADER CUE: The deck will pause and return to the Cue Point when stopped. LOOPING OPERATIONS LOOPING A loop is any area of a CD that you choose to repeat with no breaks ("seamless"). On the CDN88 MP3, you can set up to two loops per deck. LOOP IN: The Loop... - Page 13 Note: The Loop Out Point will be erased if LOOP IN is pressed or if a new Cue Point is set after the Loop Out Point. If this happens, RELOOP will not be possible. SMART LOOPING: The Beatkeeper and looping functions can work together to set perfect loops every time. For this to work correctly, the Beatkeeper must be on the beat.
- Page 14 RELOOPING / STUTTERING The RELOOP button performs two different functions, depending on the loop setting: Reloop: This function can only be used if Loop In and Loop Out Points are set. RELOOP automatically returns the track to the Loop in point and will play the loop until it is released with the LOOP OUT button.
-
Page 15: Using Effects
USING EFFECTS EFFECT SELECTION (Single Effect Mode): To select and activate an effect, press its button. It will light and the effect will be indicated in the LCD. To put the effect into Hold Mode or to activate the second row of effects, press the HOLD button. - Page 16 PHAZE – Creates an effect similar to the sound of an airplane taking off. The JOG WHEEL controls the rate of this effect. If the JOG WHEEL stops, the effect will automatically return to the "0." If the effect is in Hold Mode, the sound (as set by the JOG WHEEL) will stay constant until it is adjusted with the JOG WHEEL, deactivated, or taken out of Hold Mode.
- Page 17 PAN – Pan alternates between playing right and left audio channels based upon the BPM of the Beatkeeper. (This effect works best when the Beatkeeper is properly aligned.) The first activation of Pan alternates between right and left audio channels every eighth note (half of every beat). The LCD's BPM indicator will show "1-8,"...
-
Page 18: Program Functions
End-of-Track Silence Elimination * – This will let you eliminate the silence at the end of tracks. (The CDN88 MP3 already removes any silence at the beginning of tracks automatically.) This is useful for eliminating all the gaps between songs when playing a CD in Continuous Play Mode. - Page 19 Smart Looping – When Smart Looping is active, all Loop Points and stuttering will play perfectly to the beat of the music (as long as the Beatkeeper is accurate – see BEATKEEPER & INTERLOCK for more information). "SMART LOOP" will be shown on the LCD when this function is active.
-
Page 20: Upgrading Your Unit
UPGRADING YOUR UNIT This CDN88 MP3 contains the latest software available at the time of manufacturing. Our engineering staff will be working hard to improve and offer additional features in the future. The software has been designed to be easily updated by you through supplied updates from Numark. To obtain the latest software version, visit us on the web at http://www.numark.com. - Page 22 MANUAL VERSION 1.3...
