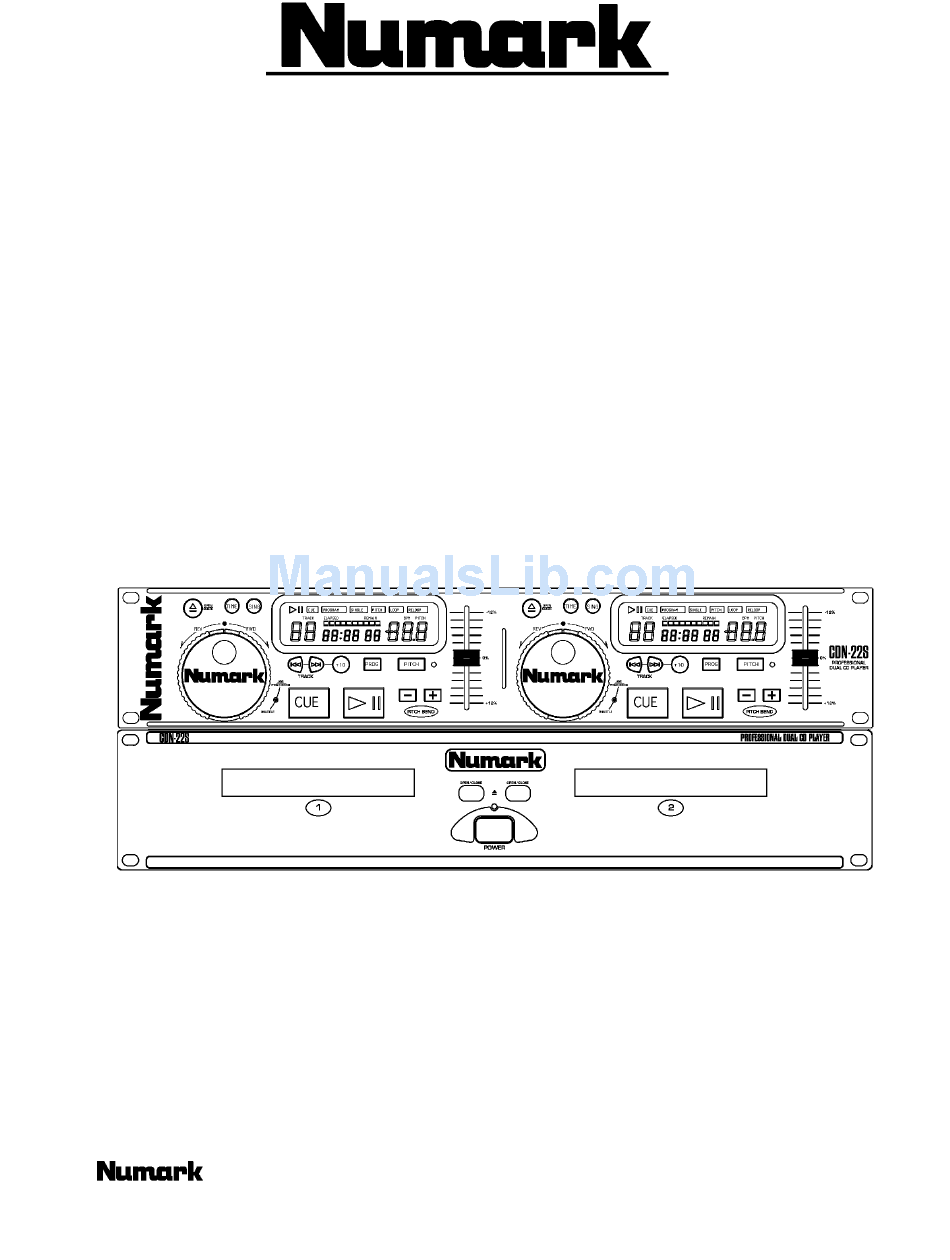

- Page 1 ® Professional Disc Jockey Products CDN-22S PROFESSIONAL DUAL CD PLAYER OPERATING MANUAL ©1999 Industries http://www.numark.com...
-
Page 2: Safety Instructions
6. Heat - Avoid placing this product to close to any high heat sources such as radiators. ©1999 Numark Industries 7. Ventilation - The appliance should be situated so that it’s location or position does not interfere with it’s proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation opening;... -
Page 3: Line Voltage Selection
Please return the enclosed warranty card to register your CD player with us. MODEL: __________________________ SERIAL NUMBER:___________________ ©1999 Numark Industries NOTICE CONCERNING FCC REGULATIONS This equipment generates and uses radio frequency energy and may cause interference to radio and... -
Page 4: Introduction
CD PLAYER WITH REMOTE CONTROLLER CONGRATULATIONS... You have just purchased a dual CD player designed specifically for the professional DJ. This unit has been designed to provide CD mixing with the same ease and creativity that you have enjoyed with records. Please take a few moments to familiarize yourself with the CDN-22 by reading the following information before attempting to operate the unit. -
Page 5: Table Of Contents
Beat Matching Using Pitch Bend Relay and Fader Start Example of Mixing Before Switching off the Power Troubleshooting Guide Information and Specifications Warranty ©1999 Numark Industries TABLE OF CONTENTS - The Leader in DJ Technology - 5 - CDN-22S http://www.numark.com... - Page 6 1) DUAL-TRANSPORT PLAYER UNIT 1) REMOTE CONTROL UNIT 1) OWNERS MANUAL (THIS BOOKLET) 2) RCA CONNECTING CABLES 2) CONTROL CABLES 1) FADER START CABLE 1) IEC POWER CORD ©1999 Numark Industries - The Leader in DJ Technology - 6 - http://www.numark.com...
-
Page 7: Mounting Your Cd Player
DIGITAL OUTPUTS: This CD player is specially equipped with digital outputs. The format is type 2, form 1, also known as S/PDIF (Sony/Phillips Digital Interface Format). In order to use the digital output you must activate the rear panel switch. -
Page 8: Remote Control Unit
CDN-22S DESCRIPTION CDN-22S REMOTE FEATURES 1. PROGRAM - Depress this button and the unit will stop and the program indicator will light. Select each track to be programmed and press the PROGRAM button between selections. You can program up to 30 tracks. Press PLAY to start the program. -
Page 9: Lcd Display Features
4. PROGRAM - Used for preprogramming the track order to automatically be played by the unit. This is a great function if you need to leave the CD player alone. 5. TIME MODE - (Elapsed) is for showing time as it is taking place. -
Page 10: Play, Pause And Cue Operations
CD as you move it to the desired position. By pressing “PLAY/PAUSE” then “CUE” you can confirm that this new cue point is desirable - The Leader in DJ Technology ©1999 Numark Industries http://www.numark.com - 10 -... -
Page 11: Matching The Beats Per Minute (Bpm)
Match the tempo by monitoring the music of both PLAYER 1 and PLAYER 2 by ear and adjusting the pitch. When the tempo of the music of the selected CD player is slow compared to the tempo of the other player, move the slider to the ( + ) side and match the tempo. When faster, move the pitch slider to the ( - ) side. -
Page 12: Relay And Fader Start
Play will stop at the end of the last track. FADER-START MODE This mode is achievable by attaching both sides of your CD player to a similarly equipped DJ mixer. 1. Connect cables between the CD remote unit and your DJ mixer. -
Page 13: Example Of Mixing
EXAMPLE OF MIXING USING BOTH PLAYERS OF YOUR CD PLAYER While playing a disc on PLAYER 1 load a disc into PLAYER 2 and select your next track, match its pitch to the track playing on PLAYER1 and when you are ready use the crossfader on your mixer to fade from PLAYER 1 to PLAYER 2. -
Page 14: Before Switching Off The Power
CDN-22S BEFORE SWITCHING OFF THE POWER: When you have finished using the CD player, be sure that the disc tray is closed with the “OPEN/CLOSE” button before switching off the power . DO NOT switch off the power when the disc holder is open. -
Page 15: Information And Specifications
Control Unit: 482 (W) x 88.8 (H) x 74 (D) mm (without feet) Weight: Player Unit: 5 Kgs., 11 lbs. Control Unit: 2 Kgs., 4.4 lbs. Power Supply: Power Consumption: ©1999 Numark Industries 16-bit linear/channel, 3 beam laser 8 times 20Hz-20KHz 86dB 0.01% 94dB 2.0Vrms... -
Page 16: Return Information
Professional Disc Jockey Products What is covered and for how long? NUMARK INDUSTRIES LCC ("NUMARK") warrants to the original purchaser that NUMARK'S DJ mixers and amplifiers are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase from an authorized NUMARK dealer and continuing for the following period of time after that date for (2) Years.
