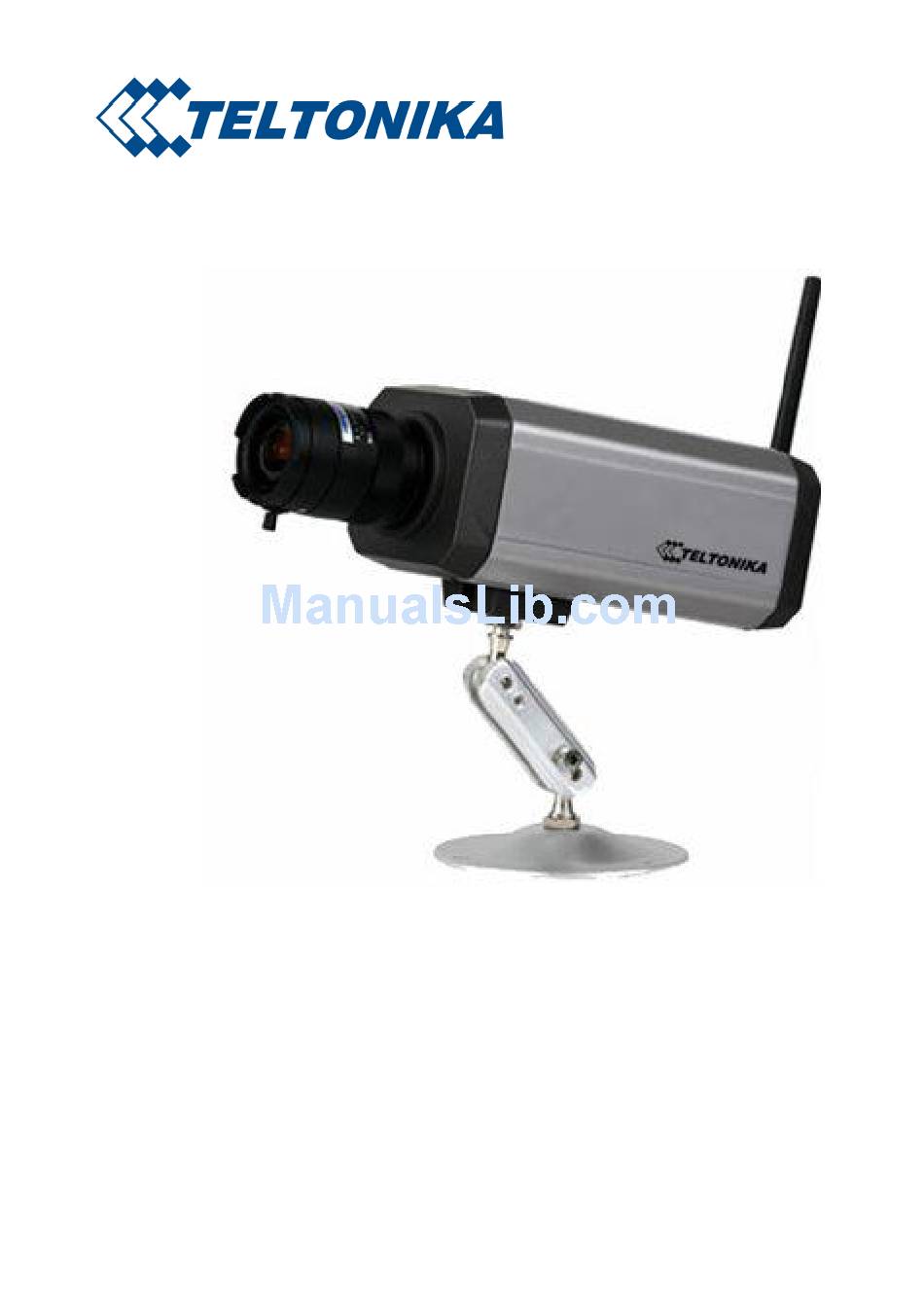

  • Page 1 Интернет-магазин TELECAMERA.RU TELTONIKA 3G Mobile Camera MVC200 User’s Manual v1.00 Интернет-магазин TELECAMERA.RU...

  • Page 2: Legal Notice

    Интернет-магазин TELECAMERA.RU LEGAL NOTICE Copyright © 2010 TELTONIKA Ltd. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is prohibited.
  • Page 3 Global System for Mobile communications Line Motion Detection Neutral Personal computer Protective earth Personal Identification Number Point-to-Point Protocol Subscriber Identity Module TCP/IP Transmission Control Protocol/Internet Protocol World Wide Web Teltonika © 2010 All Rights Reserved P a g e Интернет-магазин TELECAMERA.RU...

  • Page 4: Table Of Contents

    Upgrade ................................. 26 3.6.7 Reset setting ..............................26 Alarm In/Out ..............................26 3.7.1 Alarm In ................................26 3.7.2 Alarm Out ............................... 26 Playback ................................27 Picture View ..............................27 Teltonika © 2010 All Rights Reserved P a g e Интернет-магазин TELECAMERA.RU...

  • Page 5: Safety Information

    Computer) or second (Notebook) computer safety class, which must be properly grounded. The light or attachable sensors shall comply with all safety requirements listed in LST EN 60950-1 standard. Teltonika © 2010 All Rights Reserved P a g e Интернет-магазин TELECAMERA.RU...
  • Page 6 Do not mount or serve device during a thunderbolt. To avoid mechanical damage of the device it is recommended to transport the device packed in damage-proof pack. Teltonika © 2010 All Rights Reserved P a g e Интернет-магазин TELECAMERA.RU...
  • Page 7 3 mm. Turn off two-pole automatic disconnect device in order to simultaneously disconnect the equipment and all with it associated equipment. Teltonika © 2010 All Rights Reserved P a g e Интернет-магазин TELECAMERA.RU...

  • Page 8: Getting Started

    Internet connection available. It is ideal for remote surveillance and monitoring of temporary or distant sites or mobile assets. Teltonika camera saves installation time and costs as no wired cable installation is required on the clients' premises. The video can be acquired automatically by schedule, on motion detection and/or upon external triggers such as motion sensors or door contacts.

  • Page 9: Attaching Antenna

    The 6-pin terminal block may be used for connecting external alarm sensor or for enabling infrared light source. Most common used sensor examples are given in section “Typical PIR and door sensor connection”. Teltonika © 2010 All Rights Reserved P a g e Интернет-магазин TELECAMERA.RU...

  • Page 10: Camera Access Software And Drivers

    The CD will start up automatically opening installation window. If the window does not appear, run setup.exe file located in the CD. Follow the instructions to install drivers and software for the MVC200. Figure 5. Installation Menu Teltonika © 2010 All Rights Reserved...

  • Page 11: System Requirement

    Run the client software DVS_Client_Setup, the window below will pop up. Select components and destination folder, press Install to begin installation. Figure 6. DVS Client installation. Teltonika © 2010 All Rights Reserved 11 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 12: Network Configuration

    OCX plug-in must be installed for proper camera usage. Click the link at the bottom of Login page and follow onscreen instructions. Remember to close the browser before installation. Figure 8. Link on WEB Login page Teltonika © 2010 All Rights Reserved 12 | P a g e...

  • Page 13: Uninstalling The Drivers And Software

    Start => Settings => Control Panel => Add or Remove Programs. Select DVS Client (NVX) from the list and then click Remove. Figure 10. DVS Client Uninstall Teltonika © 2010 All Rights Reserved 13 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 14 Интернет-магазин TELECAMERA.RU Figure 11. NVS ActiveX Uninstall Teltonika © 2010 All Rights Reserved 14 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 15: Camera Configuration (Web)

    To link camera’s IP address to the static hostname, Dynamic DNS settings must be configured. To configure DDNS connect to the camera Web configuration page, go to the DDNS tab (3.4.4). Teltonika © 2010 All Rights Reserved 15 | P a g e...

  • Page 16: Accessing Web Interface

    Enter User and Password in proper fields and press Login button. The Live Video page should appear. Note: Default login settings are: User – admin Password – admin Figure 12. Login page Teltonika © 2010 All Rights Reserved 16 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 17: Live Video

    IP address. An Internet Protocol (IP) address is a numerical label that is assigned to devices participating in a computer network, which uses the Internet Protocol for communication between its nodes. Teltonika © 2010 All Rights Reserved 17 | P a g e...
  • Page 18 Password. If GSM operator does not require password, leave it blank. !!! Do not forget to disable PIN code. Otherwise you will not be able to connect to 3G network. Teltonika © 2010 All Rights Reserved 18 | P a g e...

  • Page 19: Passive Client

    Account (User Name). User name of your DDNS account. Password. Password of your DDNS account. Dynamic Domain Name. Registered domain name of your DDNS account. One account can have several registered domain names. Teltonika © 2010 All Rights Reserved 19 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 20: Pppoe

    Motion Detection is triggered. SMTP Server. SMTP server IP or host name. User Account. User name of your e-mail account. Password. Password of your e-mail account. Teltonika © 2010 All Rights Reserved 20 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 21: Video Setup

    Resolution. QCIF (176x144) / CIF (352x288) / Half_D1 (720x288) / D1 (720x576). Allow Secondary Stream. Turn Secondary stream on or off. Resolution of Secondary Stream. QCIF (176x144) / CIF (352x288). Teltonika © 2010 All Rights Reserved 21 | P a g e...

  • Page 22: Osd

    OSD (On Screen Display) displays additional information on the image. OSD windows allows you to set channel info, time, text color and position. Figure 23. OSD Settings Teltonika © 2010 All Rights Reserved 22 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 23: Video Mask

    Adjust device date, time. Click Same with PC to synchronize with PC. Sync With NTP server. Enable time synchronization with NTP time server. NTP server. Set NTP server for time synchronization. Teltonika © 2010 All Rights Reserved 23 | P a g e...

  • Page 24: User Management

    Time-length. Set time of recording triggered by alarm in seconds. Allowed range is 20 – 600 seconds. Schedule. Press Add to configure recording schedule (Day, Week, and Month). Teltonika © 2010 All Rights Reserved 24 | P a g e...

  • Page 25: Motion Detection

    Send E-Mail. Send alarm e-mail on Motion Detection. Trigger Alarm Out. Enable to trigger alarm output when motion is detected. Note: Set Valid Time to enable motion detection. Figure 29. Motion Detect Settings Teltonika © 2010 All Rights Reserved 25 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 26: Upgrade

    Alarm Out Configure Alarm Out settings. Name. Set channel.name Alarm Out Persistence. Set up duration of Alarm Out. Valid Time. Setup time when alarm output is active. Teltonika © 2010 All Rights Reserved 26 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 27: Playback

    3.8 Playback Many security applications require recording of video or snapshots that may be reviewed later. MVC200 allows not only sending media content over internet by e-mails but also to record it to SD card. Recorded video may be reviewed in the Playback section. Stored media is grouped by recording date.
  • Page 28 Интернет-магазин TELECAMERA.RU Figure 35. Picture View Teltonika © 2010 All Rights Reserved 28 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 29: Client Software Instructions Guide

    When logged in for the first time user needs to fill the IP address/domain name in order to trigger the monitor screen. Press icon on the right side of the main window to open Device Management window: Teltonika © 2010 All Rights Reserved 29 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 30 Refesh. Refresh the camera list. Set IP. Change IP of selected camera. Notes: Camera and pc must be on the same network. Default IP address is 192.168.0.233, gateway is 192.168.0.1. Teltonika © 2010 All Rights Reserved 30 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 31: Live View

    Press to bring up Video Properties menu where Encoding / OSD / Shelter/ MD parameters can be set. 4.4.1.1 Encoding Encoding tab allows you to set frame mode, stream type, frame rate, I-Frame interval for main and for secondary streams. Teltonika © 2010 All Rights Reserved 31 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 32 Figure 41. On Screen Display Setup 4.4.1.3 Shelter Shelter tab allows you to mask desired area. Hold Ctrl and drag mouse to choose the area. Click Clear to delete it. Teltonika © 2010 All Rights Reserved 32 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 33: Device List

    Device List section displays information about connected devices: device name, domain name, channel name, etc. Press to add device. Press for Device Property screen. Press to connect or disconnect the device. Teltonika © 2010 All Rights Reserved 33 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 34: Interface Structure

    Sound when receive alert info from Device. Select sound file which will sound on alert. Resume connection when disconnection is detected. The camera will retry to reconnect on connection loss. Teltonika © 2010 All Rights Reserved 34 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 35 Интернет-магазин TELECAMERA.RU Recording Settings. Please refer Teltonika © 2010 All Rights Reserved 35 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 36 Press Stay for arrow to add/delete standstill period, press to choose display mode, hold mouse left key and drag wanted channel to the right column or delete it by double clicking the channel name. Teltonika © 2010 All Rights Reserved 36 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 37 You will be asked for password when returning from full screen. Figure 48. Client Side Local User Management 4.4.4.2.4 Automatic Record Please refer to Teltonika © 2010 All Rights Reserved 37 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 38 Интернет-магазин TELECAMERA.RU Recording and Playback section.. 4.4.4.3 Playback Playback window opened pressing button. Please refer Teltonika © 2010 All Rights Reserved 38 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 39: Camera Setup

    8001. Restart camera after changing configuration. Changing device name does not require restarting. Figure 50. Device Property Address/Port Note: IP address will be valid only after device restart. Teltonika © 2010 All Rights Reserved 39 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 40 User can monitor picture by internet from long distance. Choose PPPoE in following dialog then input User Name and Password then press OK. Figure 52. Device Property PPPoE Settings Teltonika © 2010 All Rights Reserved 40 | P a g e...
  • Page 41 Sender’s Account. User name or e-mail address of your e-mail account . Receiver’s Account. Any mailbox which can receive e-mails. Click Send A Test Mail after setup to test your configuration. Figure 54. Device Property E-Mail Settings Teltonika © 2010 All Rights Reserved 41 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 42 Actions take to response to alarm. Sound alarm, notify client, send e-mail. Output to. Enable to trigger alarm output. Valid period of time. Setup time when alarm input is active. Figure 56. Device Property Alarm In Settings Teltonika © 2010 All Rights Reserved 42 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 43 Resolution. QCIF (176x144) / CIF (352x288) / Half_D1 (720x288) / D1 (720x576). Figure 58. Device Property Video Channel Settings Note: Settings will be valid only after device restart. Teltonika © 2010 All Rights Reserved 43 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 44 Current version. Current version of the device. File to upload. Click Open find the file then click Upload. Progress will be show while updating. Do not turn camera off during the update process. Teltonika © 2010 All Rights Reserved 44 | P a g e...
  • Page 45 Please turn device off before pulling SD card in/out. Choose FAT32 type when formatting SD card. Press and choose device’s IP from Device-Side File to review records Teltonika © 2010 All Rights Reserved 45 | P a g e Интернет-магазин TELECAMERA.RU...
  • Page 46 UPnP (Universal Plug and Play) function allows camera to add TCP and UDP mapping to local router (gateway). Figure 62. Device Property Miscellaneous Settings Note: Router must support UPnP function Recommended external port range is 1025-32767. Teltonika © 2010 All Rights Reserved 46 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 47: Recording And Playback

    Limit of time. Set maximum record length in seconds. When the limit is reached, the following options can be selected: Stop recording. Recording will stop after reaching of the limit. Teltonika © 2010 All Rights Reserved 47 | P a g e...
  • Page 48 Here you can create different schedules for different cameras or groups of cameras. Figure 64. Automatic record setup. New. Create a new schedule. Edit. Edit selected schedule. Teltonika © 2010 All Rights Reserved 48 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 49: Playback

    Press Add button to open Add Device window. Set IP/Host field to camera’s static IP address or use DDNS domain name. Please see 3.4.4 for details on configuring DDNS. Teltonika © 2010 All Rights Reserved 49 | P a g e...

  • Page 50: Typical Pir And Door Sensor Connection

    The camera allows you to connect various surveillance sensors: door magnet sensor, gas sensor, PIR sensor, smoke sensor, etc. The typical PIR and magnetic door sensor connection example is given in Figure 66. Figure 66. Typical sensor connection Teltonika © 2010 All Rights Reserved 50 | P a g e Интернет-магазин TELECAMERA.RU...

  • Page 51: Troubleshooting

    Routers must be set to enable a PC TCP connecting to the device. Routers use port number to decide which device request is allowed, this function is port transmitting or virtual services. Teltonika © 2010 All Rights Reserved 51 | P a g e...

  • Page 52: Technical Specification

    Note: Before using the equipment, do not unpack it until package temperature reaches operating temperature. It is required if the device was stored in the temperature that exceeds operating temperature range. Teltonika © 2010 All Rights Reserved 52 | P a g e...
