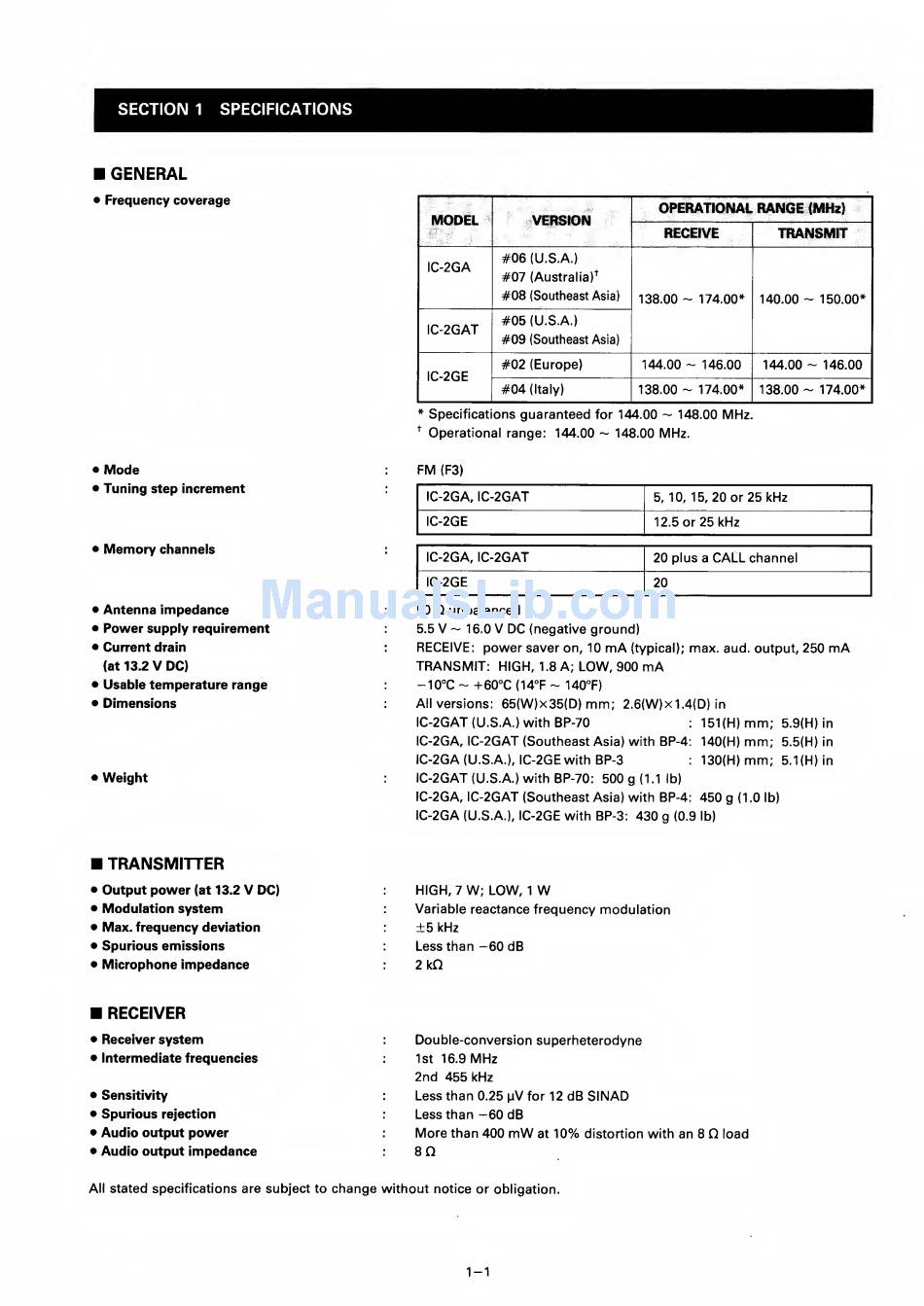

SECTION
1
SPECIFICATIONS
GENERAL
• Frequency coverage
•
Mode
• Tuning
step increment
•
Memory
channels
• Antenna impedance
•
Power
supply requirement
• Current
drain
(at
13.2
V
DC)
• Usable
temperature range
• Dimensions
• Weight
MODEL
VERSION
OPERATIONAL
RANGE
(MHz)
RECEIVE
TRANSMIT
IC-2GA
#06(U.S.A.)
#07
(Australia)^
#08
(Southeast Asia)
138.00
~
174.00*
140.00
-
150.00*
IC-2GAT
#05
(U.S.A.)
#09
(Southeast
Asia)
IC-2GE
#02
(Europe) 144.00
~
146.00 144.00
~
146.00
#04
(Italy)
138.00
~
174.00*
138.00
~
174.00*
*
Specifications
guaranteed
for
144.00
~
148.00 MHz.
^ Operational range: 144.00
~
148.00
MHz.
FM
(F3)
IC-2GA,
IC-2GAT
5,10,15, 20
or
25 kHz
IC-2GE
12.5 or
25 kHz
IC-2GA,
IC-2GAT
20 plus a
CALL
channel
IC-2GE
20
50
O
unbalanced
5.5
V
~
16.0
V DC
(negative
ground)
RECEIVE;
power
saver on, 10
mA
(typical);
max.
aud. output, 250
mA
TRANSMIT:
HIGH,
1
.8
A;
LOW,
900
mA
-10°C
~ +60X
(14T
~
140°F)
All
versions:
65(W)x35(D)
mm;
2.6(W)x1.4(D)
in
IC-2GAT(U.S.A.) with BP-70
:
151(H)
mm;
5.9(H)
in
IC-2GA, IC-2GAT
(Southeast Asia) with BP-4: 140(H)
mm;
5.5(H)
in
IC-2GA(U.S.A.), IC-2GE with BP-3
:
130(H)
mm;
5.1(H)
in
IC-2GAT(U.S.A.) with
BP-70:
500g(1.1lb)
IC-2GA,
IC-2GAT
(Southeast Asia) with BP-4: 450
g
(1.0 lb)
IC-2GA
(U.S.A.),
IC-2GE with
BP-3: 430
g
(0.9 lb)
TRANSMITTER
•
Output
power
(at
13.2
V
DC)
• Modulation
system
• Max. frequency
deviation
• Spurious emissions
• Microphone impedance
HIGH,
7
W; LOW,
1
W
Variable reactance frequency modulation
±5
kHz
Less than
-60 dB
2
kO
RECEIVER
• Receiver system
• Intermediate frequencies
•
Sensitivity
• Spurious
rejection
•
Audio output
power
• Audio output impedance
Double-conversion superheterodyne
1st
16.9
MHz
2nd 455 kHz
Less than 0.25 pV
for
12
dB SINAD
Less than
-60 dB
More
than 400
mW
at
10%
distortion with
an
8
Q
load
80
All
stated specifications are subject
to
change
without notice or obligation.
1-1
