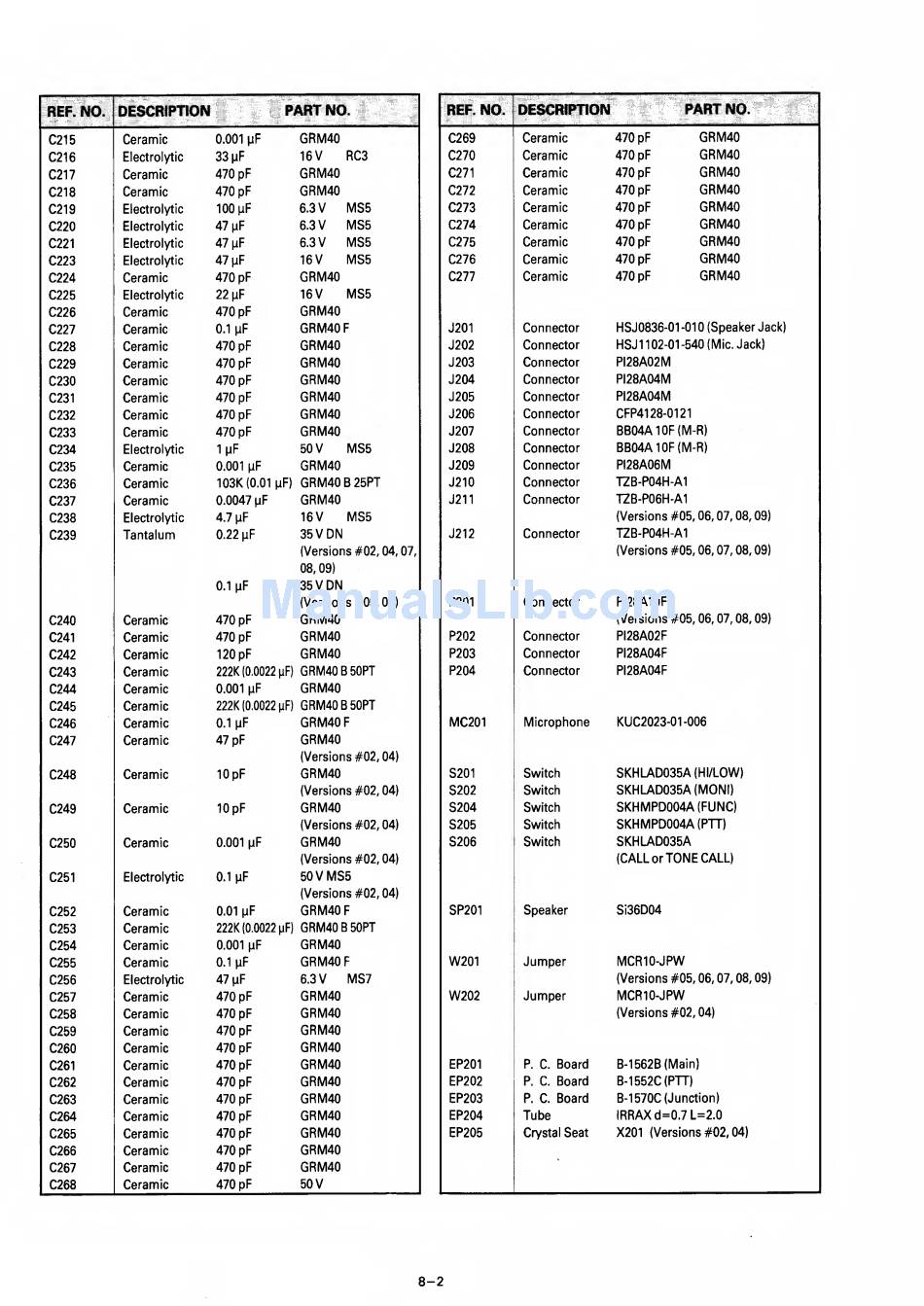

Icom IC-2GA Service Manual page 41

REF.
NO.
DESCRmont
C269 Ceramic 470 pF
GRM40
C270 Ceramic 470 pF
GRM40
C271
Ceramic 470 pF
GRM40
C272 Ceramic 470 pF
GRM40
C273 Ceramic 470 pF
GRM40
C274
Ceramic 470 pF
GRM40
C275 Ceramic 470 pF
GRM40
C276 Ceramic 470 pF
GRM40
C277 Ceramic
470 pF
GRM40
J201
Connector HSJ0836-01
-01
0
(Speaker
Jack)
J202 Connector HSJ1102-01-540(Mic. Jack)
J203 Connector
PI28A02M
J204
Connector PI28A04M
J205 Connector
PI28A04M
J206 Connector
CFP41 28-01 21
J207
Connector
BB04A10F(M-R)
J208 Connector
BB04A10F(M-R)
J209 Connector P128A06M
J210 Connector
TZB-P04H-A1
J211
Connector TZB-P06H-A1
(Versions
#05,
06,07, 08,09)
J212 Connector
TZB-P04H-A1
(Versions
#05,
06, 07, 08, 09)
P201 Connector PI28A10F
(Versions #05,
06, 07, 08, 09)
P202 Connector PI28A02F
P203 Connector PI28A04F
P204 Connector PI28A04F
MC201
Microphone KUC2023-01-006
S201 Switch
SKHLAD035A
(HI/LOW)
S202 Switch
SKHLAD035A(MONI)
S204 Switch
SKHMPD004A(FUNC)
S205
Switch
SKHMPD004A(PTT)
S206 Switch
SKHLAD035A
(CALL
or
TONE
CALL)
SP201
Speaker Si36D04
W201 Jumper
MCR10-JPW
(Versions #05,
06, 07, 08, 09)
W202 Jumper MCR10-JPW
(Versions #02,
04)
EP201
P.
C.
Board B-1562B(Main)
EP202
P. C.
Board B-1552C(PTT)
EP203
P.
C.
Board B-1570C
(Junction)
EP204 Tube
lRRAXd=0.7L=2.0
EP205
Crystal
Seat
X201
(Versions #02,
04)
ref.no. DESCRIPTtON
PART
NO.
C215 Ceramic
0.001
pF
GRM40
C216
Electrolytic
33 pF 16
V RC3
C217 Ceramic
470 pF
GRM40
C218 Ceramic
470 pF
GRM40
C219
Electrolytic
100 pF
6.3
V MS5
C220
Electrolytic
47 pF
6.3
V
MS5
C221
Electrolytic
47 pF
6.3
V MS5
C223
Electrolytic
47 pF 16
V
MS5
C224 Ceramic 470 pF
GRM40
C225
Electrolytic
22 pF
16V
MS5
C226 Ceramic 470 pF
GRM40
C227 Ceramic
0.1
pF
GRM40
F
C228 Ceramic 470 pF
GRM40
C229 Ceramic 470 pF
GRM40
C230 Ceramic
470 pF
GRM40
C231
Ceramic 470 pF
GRM40
C232 Ceramic
470 pF
GRM40
C233 Ceramic
470 pF
GRM40
C234
Electrolytic
IpF
50
V MS5
C235 Ceramic
0.001
pF
GRM40
C236 Ceramic 103K(0.01
pF)
GRM40
B 25PT
C237 Ceramic 0.0047
pF
GRM40
C238
Electrolytic 4.7
pF
16V
MS5
C239 Tantalum
0.22
pF
35VDN
(Versions #02,
04, 07,
08, 09)
0.1
pF
35VDN
(Versions #05,
06)
C240 Ceramic
470 pF
GRM40
C241
Ceramic 470 pF
GRM40
C242 Ceramic 120 pF
GRM40
C243 Ceramic 222K
(0.0022 pF)
GRM40B50PT
C244 Ceramic
0.001
pF
GRM40
C245 Ceramic 222K
(0.0022 pF)
GRM40B50PT
C246 Ceramic
0.1
pF
GRM40
F
C247 Ceramic 47 pF
GRM40
(Versions #02,
04)
C248 Ceramic
10
pF
GRM40
(Versions #02,
04)
C249 Ceramic
10
pF
GRM40
(Versions #02,
04)
C250
Ceramic
0.001
pF
GRM40
(Versions #02,
04)
C251
Electrolytic 0.1
pF
50VMS5
(Versions
#02,
04)
C252
Ceramic
0.01
pF
GRM40
F
C253 Ceramic 222K
(0.0022 pF)
GRM40
B
50PT
C254
Ceramic
0.001
pF
GRM40
C255 Ceramic
0.1
pF
GRM40F
C256
Electrolytic 47
pF
6.3
V
MS7
C257
Ceramic 470 pF
GRM40
C258 Ceramic
470 pF
GRM40
C259 Ceramic 470 pF
GRM40
C260 Ceramic 470 pF
GRM40
C261 Ceramic
470 pF
GRM40
C262 Ceramic 470 pF
GRM40
C263 Ceramic 470 pF
GRM40
C264 Ceramic 470 pF
GRM40
C265 Ceramic
470 pF
GRM40
C266 Ceramic 470 pF
GRM40
C267 Ceramic 470 pF
GRM40
C268 Ceramic 470 pF 50
V
8-2
