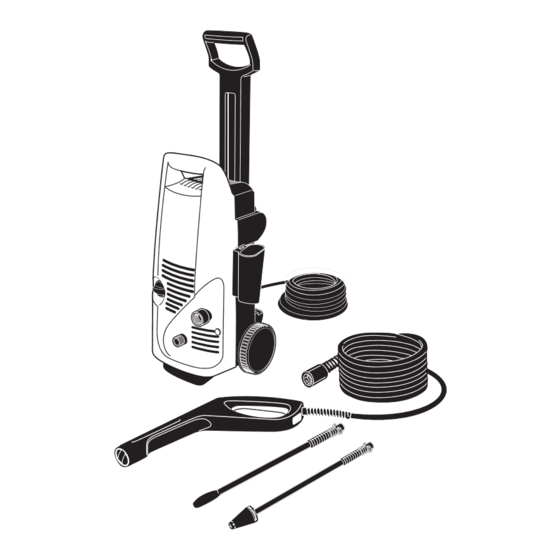

Kärcher K 2.97 M Operating Instructions Manual
Hide thumbs
Also See for K 2.97 M:
- Manual (196 pages) ,
- Operator's manual (52 pages) ,
- User manual (21 pages)
Related Manuals for Kärcher K 2.97 M
Summary of Contents for Kärcher K 2.97 M
-

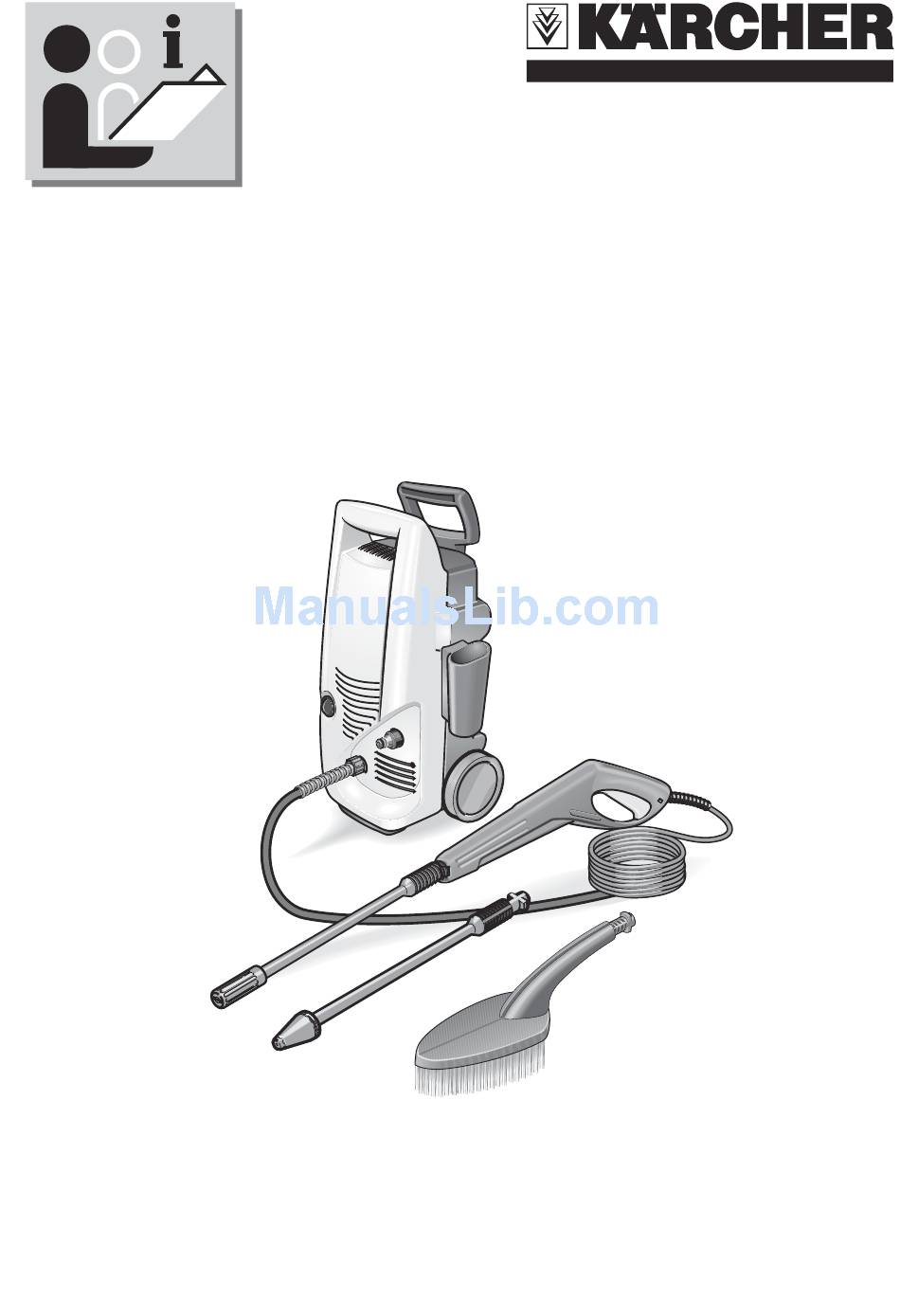

Page 1: Operating Instructions
K 2.97 M 5.961-124 12/03_2006738 Operating Instructions PRESSURE WASHER Before first use of the unit read these operating instructions and act in accordance with them... -
Page 2: Safety Instructions
Safety Instructions The operation of the device in hazardous minimum distance of 30 cm. locations is not admissible. Cleaning operations during which oil Please comply with the corresponding saturated waste water is generated, such safety instructions if you use the as engine cleaning and underbody appliance in danger areas (e.g. - Page 3 Contents Before first use of the unit read these operating instructions and act in accordance with them. Keep these operating instructions in a safe place for later use or for a subsequent owner. “Click” “Click” “Click” 1 Detergent suction hose with filter 6c Cleaning brush 2 Appliance switch (ON/OFF) 7 High-pressure hose...
- Page 4 Preparation Spray gun assembly Connect to water inlet Insert the spray lance of your Open water tap fully choice Plug in power plug Screw on high-pressure hose “clic” 1. 1. 2. 2. 1 / 2 For additional information see page 8 and following...
- Page 5 Operation with high pressure Unit switch on ”I” Adjust spray lance with double nozzle Release safety ratchet on to high-pressure mode, or choose handgun spray lance with dirt blaster Press lever Note: the dirt blaster works always in Caution: recoil high-pressure mode Safety instructions / ON...
- Page 6 Operation with Detergent detergent reservoir Adjust spray lance to low-pressure Switch on high-pressure cleaner jet or choose cleaning brush Release safety ratchet on Note: No detergent in high-pressure handgun mode or with dirt blaster Press lever Suspend detergent suction hose in / ON / ON / ON...
- Page 7 Finishing the operation Care, storage Unit switch to ”0” Clean detergent filter Unplug power plug Clean water filter Turn off water tap Frost protection Press lever (to de-pressurise) Engage safety ratchet on handgun OFF/...
- Page 8 connection lines from heat, oil, and sharp Environmental protection edges. Never touch the mains plug and the Dispose of packaging socket with wet hands. The connection between connection line The packaging materials are recyclable. and extension line must not lie in the Please hand in the packaging for recycling.
- Page 9 • Screw the suction hose with filter (not Operation included, order-no. 4.440-238) onto the water connection of the unit. Serious danger! • Hang the filter in the container. Vehicle tyres and tyre valves can be damaged • Vent the unit before operation. by the high-pressure jet and become –...
- Page 10 Working with accessory Finishing operations ■ ■ ■ ■ ■ Cleaning brush • Master switch to “0”. The cleaning brush is ideally suited for the • Draw out power plug. cleaning of vehicles. Water supplied from the water main Note: Please make sure that the cleaning brush is free from dirt or other particles.
- Page 11 Then reconnect the branches will be pleased to assist you further. high-pressure hose. - Clean the sieve in the water connection (it Karcher Pty Ltd can be easily removed using flat pliers). 40 Koornang Road - Check the inlet water flow rate.
-
Page 12: Technical Data
Technical Data Special accessories Power supply Special accessories expand the scope of use of your machine. You can obtain further Voltage (at 1~50 Hz) 240 V information from your Kärcher dealer. Connected load 1,6 kW Supply fuses (time-lag) 10 A See page 13 for illustrations. - Page 16 Karcher Pty Ltd 40 Koornang Road Scoresby 3179 Victoria, Australia Tel. 61 3 9765 2300...
