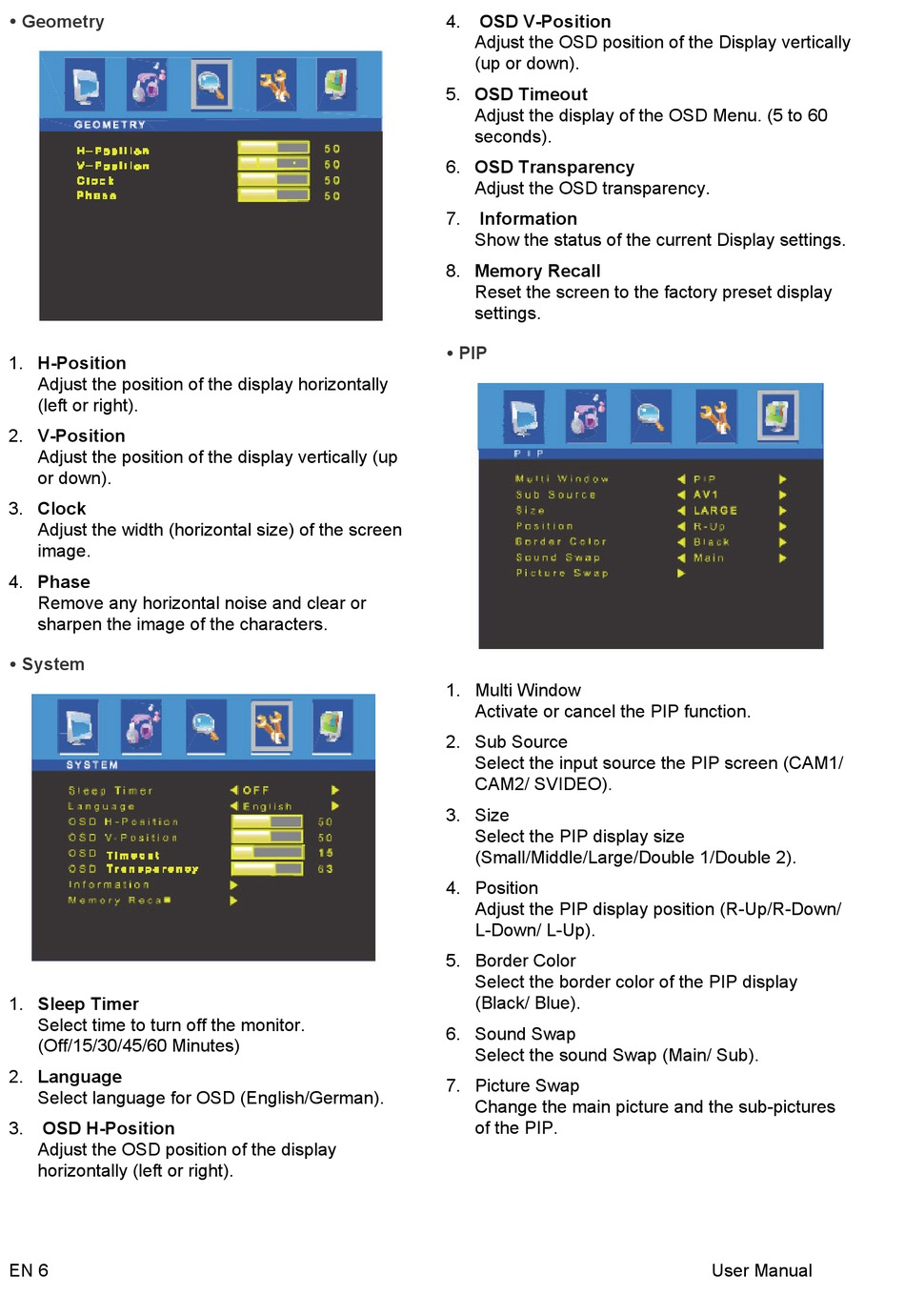

 Geometry
1. H-Position
Adjust the position of the display horizontally
(left or right).
2. V-Position
Adjust the position of the display vertically (up
or down).
3. Clock
Adjust the width (horizontal size) of the screen
image.
4. Phase
Remove any horizontal noise and clear or
sharpen the image of the characters.
 System
1. Sleep Timer
Select time to turn off the monitor.
(Off/15/30/45/60 Minutes)
2. Language
Select language for OSD (English/German).
3. OSD H-Position
Adjust the OSD position of the display
horizontally (left or right).
EN 6
4. OSD V-Position
Adjust the OSD position of the Display vertically
(up or down).
5. OSD Timeout
Adjust the display of the OSD Menu. (5 to 60
seconds).
6. OSD Transparency
Adjust the OSD transparency.
7. Information
Show the status of the current Display settings.
8. Memory Recall
Reset the screen to the factory preset display
settings.
 PIP
1. Multi Window
Activate or cancel the PIP function.
2. Sub Source
Select the input source the PIP screen (CAM1/
CAM2/ SVIDEO).
3. Size
Select the PIP display size
(Small/Middle/Large/Double 1/Double 2).
4. Position
Adjust the PIP display position (R-Up/R-Down/
L-Down/ L-Up).
5. Border Color
Select the border color of the PIP display
(Black/ Blue).
6. Sound Swap
Select the sound Swap (Main/ Sub).
7. Picture Swap
Change the main picture and the sub-pictures
of the PIP.
