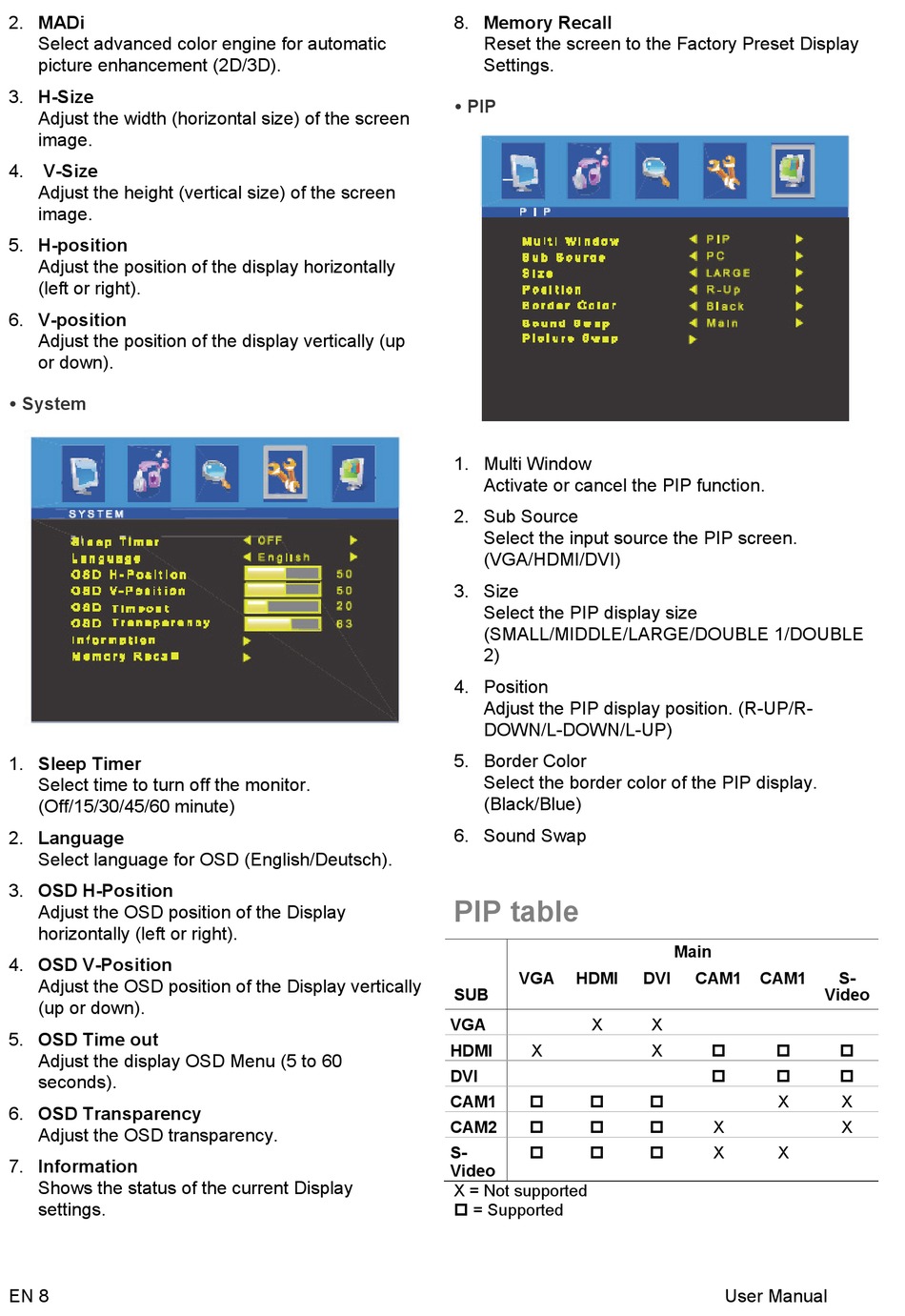

2. MADi
Select advanced color engine for automatic
picture enhancement (2D/3D).
3. H-Size
Adjust the width (horizontal size) of the screen
image.
4. V-Size
Adjust the height (vertical size) of the screen
image.
5. H-position
Adjust the position of the display horizontally
(left or right).
6. V-position
Adjust the position of the display vertically (up
or down).
 System
1. Sleep Timer
Select time to turn off the monitor.
(Off/15/30/45/60 minute)
2. Language
Select language for OSD (English/Deutsch).
3. OSD H-Position
Adjust the OSD position of the Display
horizontally (left or right).
4. OSD V-Position
Adjust the OSD position of the Display vertically
(up or down).
5. OSD Time out
Adjust the display OSD Menu (5 to 60
seconds).
6. OSD Transparency
Adjust the OSD transparency.
7. Information
Shows the status of the current Display
settings.
EN 8
8. Memory Recall
Reset the screen to the Factory Preset Display
Settings.
 PIP
1. Multi Window
Activate or cancel the PIP function.
2. Sub Source
Select the input source the PIP screen.
(VGA/HDMI/DVI)
3. Size
Select the PIP display size
(SMALL/MIDDLE/LARGE/DOUBLE 1/DOUBLE
2)
4. Position
Adjust the PIP display position. (R-UP/R-
DOWN/L-DOWN/L-UP)
5. Border Color
Select the border color of the PIP display.
(Black/Blue)
6. Sound Swap

PIP table

VGA HDMI
SUB
VGA X
HDMI X
DVI
CAM1  
CAM2  
S-  
Video
X = Not supported
 = Supported
Main
DVI CAM1 CAM1
X
X
 
 
 X
 X
 X X
User Manual
S-
Video


X
X
