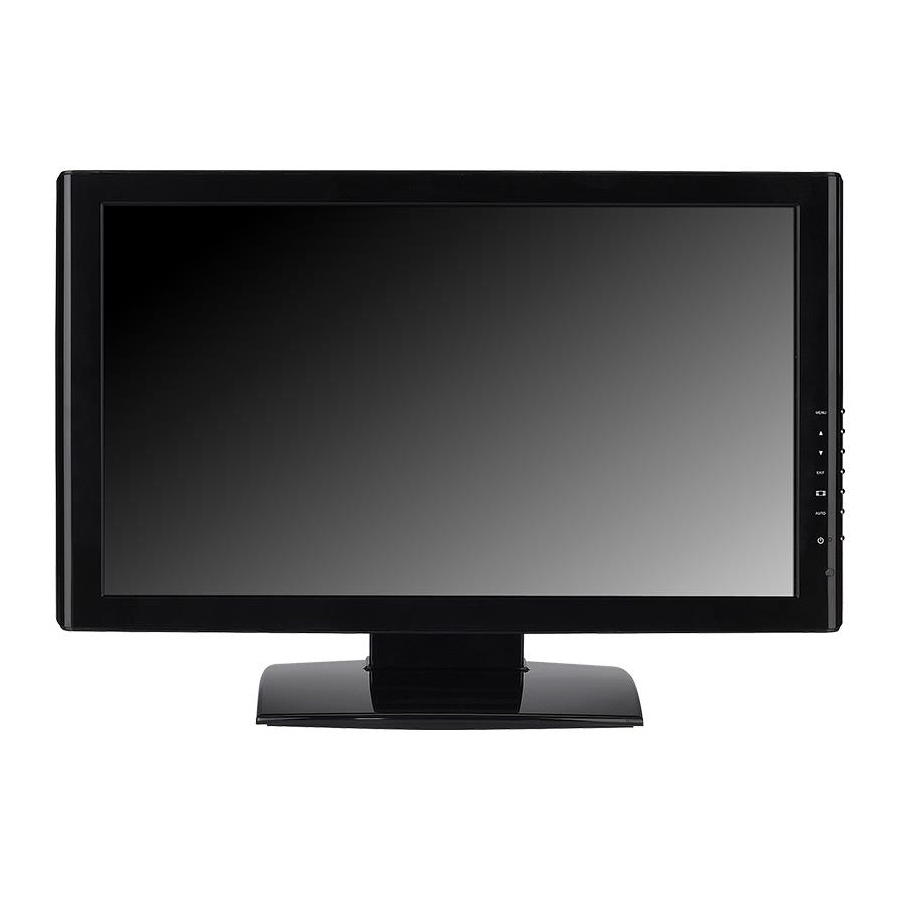

- Page 1 TVM-1701 / TVM-1850 / TVM-1901 / TVM-2150 Monitor User Manual P/N 1072775C-EN • REV 1.0 • ISS 05MAY14...
- Page 2 2004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this device is in compliance with the essential Interlogix is part of UTC Building & Industrial Systems, a unit of requirements and other relevant provisions of Directive United Technologies Corporation. All rights reserved.
-
Page 3: Table Of Contents
Front panel controls 4 • Avoid operating or placing the Control panel (TVM-1701 model) 4 monitor in the following Control panel (TVM-1901/ TVM-1850/ environments: extremes of TVM-2150 models) 4 temperatures, both hot and cold;... -
Page 4: Introduction
• LED monitor The monitor supports the optimal display performance with 1280x1024 @ 60 Hz • Power cord (TVM-1701/TVM-1901 Model),1920x1080 @ 60 Hz (TVM-2150 • VGA cable Model) and 1366x768 @ 60 Hz (TVM- • AC adaptor 1850 Model). -
Page 5: Assembling The Monitor
Place the monitor on it facing downwards. Insert the arm of the monitor stand of the monitor into the pedestal foot provided. See figures below. TVM-1701/TVM-1 901 models Connections TVM-1850/TVM-2150 models DC 12V Input VIDEO OUT Composite signal output VIDEO IN Composite signal input. -
Page 6: Front Panel Controls
Front panel controls AUTO (*) Primary Function: Automatically adjusts the display to the most optimal setting Control panel (TVM-1701 possible. (VGA mode only) model) Secondary Function: Selects the sub menu Control panel (TVM-1901/ TVM- 1850/ TVM-2150 models) POWER indicator Shows both normal operation and power... -
Page 7: Changing A Monitor Parameter
▲ Up Arrow (*) Hot keys Primary Function: Automatically adjusts Selects signal in order. VGA - SOURCE HDMI - CAM the display to the most optimal setting possible. (VGA mode only) When there is no OSD, if you ▲ (UP/AUTO) Secondary Function: Allows for vertical press this ▲... -
Page 8: Vga Menu
Color Tone VGA menu Choose a different preset color temperature or set your own customized Picture color parameters. (Normal/ Warm/ Cool/ User). Advanced Setting 4-1 Noise Reduction. Not used. 4-2 Back Light Adjust the back light to be brighter or darker. -
Page 9: Time Setting
Sound (Time setting) Sound Mode Menu Language Choose a different preset sound mode or Select language for the OSD. your own customized sound. (Standard/ Screen Format Speech/ Music/ User) Select the aspect ratio (16:9/4:3). Balance OSD Time out Adjust the sound balance of the left and right speakers. -
Page 10: Cam Menu (Hdmi)
(Advanced Setting) Memory Recall Reset the screen to the factory preset display settings. Lock Picture Mode Select the picture mode (Standard/Movie/Dynamic/User/Eco). Brightness Keypad Lock Adjust the brightness of the image. Turn the keypad lock on or off. Contrast Remote Control Lock (optional) Adjust the contrast of the image, the Turn the remote control lock on or off. - Page 11 System 8-3 DCR The dynamic contrast ratio (DCR) automatically adjusts the screen brightness. Turn DCR on or off. 8-4 DCC The dynamic contrast control (DCC) automatically adjusts the screen contrast. Turn DCC on or off. (Time Setting) Sound Menu Language Sound Mode Select the OSD language.
-
Page 12: Self-Diagnosis
Time Setting 8-1 Time Not used. 8-2 Sleep Timer The No Signal screen is displayed when the Set sleep timer. D-Sub signal connector is connected but the status of the monitor is on DPMS mode. 8-3 Auto Sleep The monitor turns off when it does not receive any signal from the remote control or any button within the time set up (Off/ 1 Hour/ 2 Hours/ 5 Hours). -
Page 13: Attaching The Monitor Stand
TVM-1701/TVM-1901 models The monitor’s installation surface is compatible with other types of VESA standard stands. Hole spacing: 100 x 100 mm Screw length: 8 to12 mm Troubleshooting Symptom Check TVM-1850/TVM-2150 model Picture is jittery Adjust Clock to set the screen position and adjust... - Page 14 Symptom Check manual. Picture is Adjust Contrast blurred Brightness. No sound Check the audio cables are correctly connected to the computer. Adjust the volume after checking the sound is muted. Check the audio system in the computer. Low sound Adjust the volume on the OSD menu.
-
Page 15: Specifications
Specifications TVM-1701/TVM-1901 models Items Model TVM-1701 Model TVM-1901 Panel Screen size 17 in. (43.cm) 19 in. (48.3 cm) Pixel pitch 0.264 x 0.264 mm 0.294 x 0.294 mm View angle (H/V) 170°/160° 170°/160° Contrast ratio 1000:1 (typ) 1000:1 (typ) Response time... -
Page 16: Tvm-1850/Tvm-2150 Models
Items Model TVM-1701 Model TVM-1901 16.18 x 14.84 x 7.67 in 18.5 x 15.3 x 5.2 in. Weight Net (without stand) 3.1kg (6.8lb.) 4.0 kg (8.82 lb.) Net (with stand) 3.8kg (8.4lb.) 4.8 kg (10.58 lb.) Gross (box) 4.7kg (10.4lb.) 5.3 kg (11.7 lb.) - Page 17 Items Model TVM-1850 Model TVM-2150 PC Audio in Head phone out Service (USB) Power Consumption < 30 W < 30 W Source 12 VDC, 3.33 A 12 VDC, 3.33 A Special Filter type 3D comb filter, 3D comb filter, feature deinterlacing deinterlacing 472 x 274 x 61 mm...
-
Page 18: Factory Preset Timings
1024 x 768 56.476 70.069 all models 1024 x 768 60.020 75.030 all models 1152 x 864 59.986 59.985 TVM-1701/ TVM-1901/ TVM-2150 1152 x 864 67.500 75.000 TVM-1701/ TVM-1901/ TVM-2150 1280 x 1024 63.981 60.020 TVM-1701/ TVM-1901/ TVM-2150 1280 x 1024 79.974 75.024...
