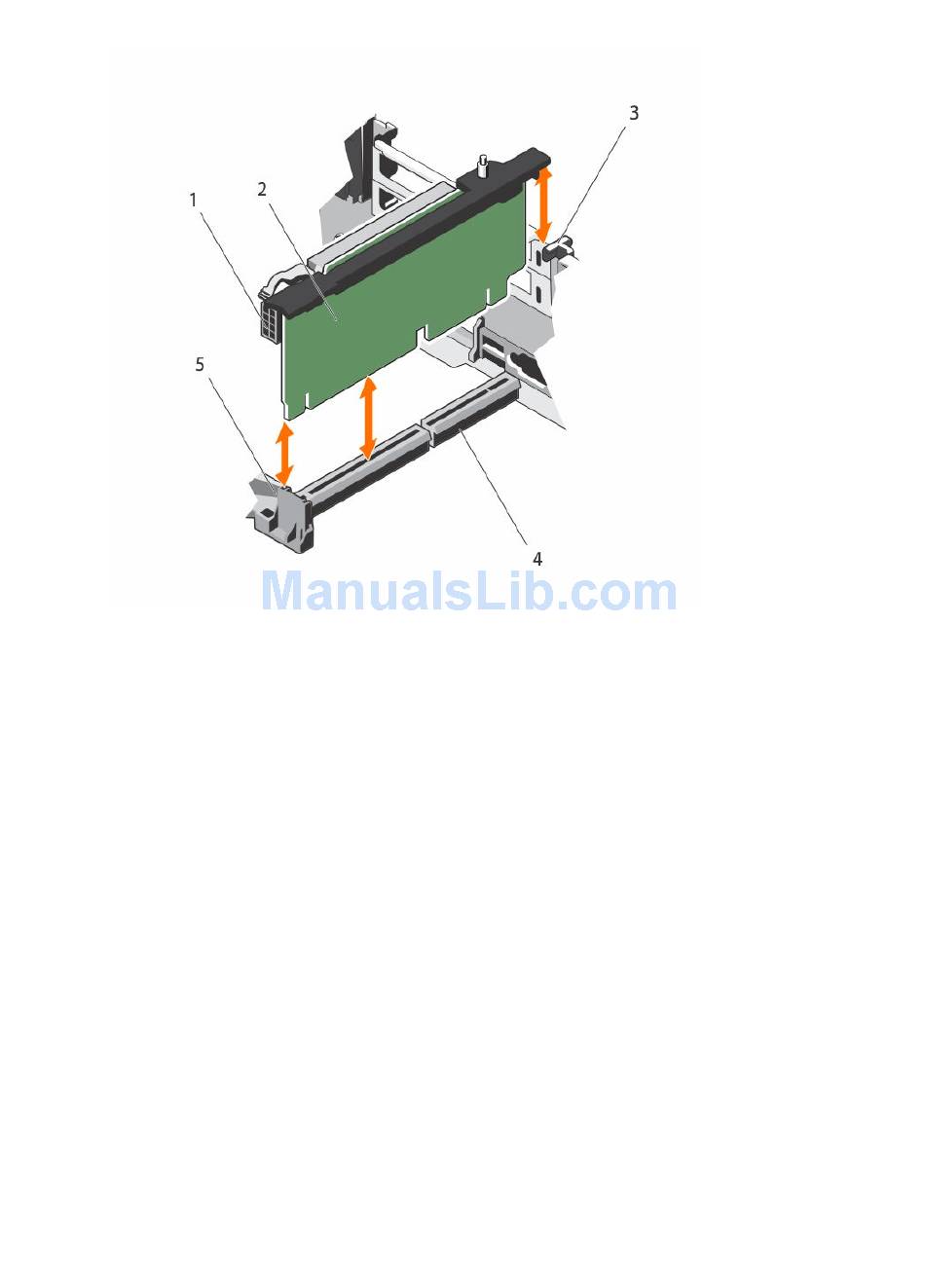

Figure 34. Removing and installing the expansion card riser 2
1.
power connector (for GPU cards)
3.
riser guide-back
5.
riser guide-front
2.
expansion card riser 2
4.
expansion card riser 2 connector
91
