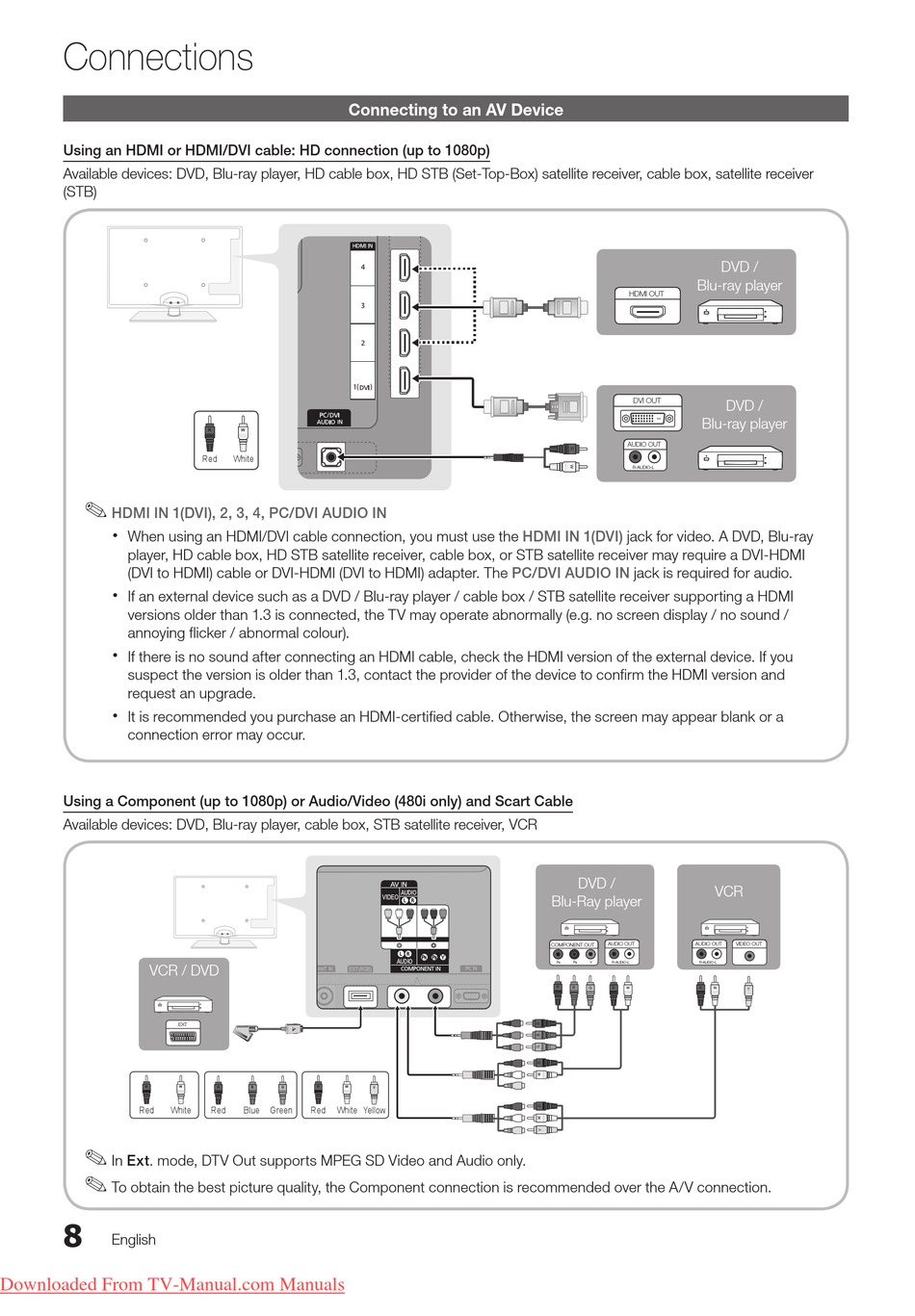

Connections

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver
(STB)
R
Red
White
HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN
x
When using an HDMI/DVI cable connection, you must use the
player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI
(DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The
x
If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI
versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound /
annoying flicker / abnormal colour).
x
If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you
suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and
request an upgrade.
x
It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a
connection error may occur.
Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
VCR / DVD
EXT
R
W
R
Red
White
Red
In Ext. mode, DTV Out supports MPEG SD Video and Audio only.
To obtain the best picture quality, the Component connection is recommended over the A/V connection.
8
English

Connecting to an AV Device

W
B
G
R
W
Y
Blue
Green
Red
White
Yellow
HDMI OUT
DVI OUT
AUDIO OUT
R-AUDIO-L
HDMI IN 1(DVI)
jack for video. A DVD, Blu-ray
PC/DVI AUDIO IN
jack is required for audio.
DVD /
Blu-Ray player
COMPONENT OUT
AUDIO OUT
P
P
Y
R-AUDIO-L
R
B
R
B
G
R
W
DVD /
Blu-ray player
DVD /
Blu-ray player
VCR
AUDIO OUT
VIDEO OUT
R-AUDIO-L
R
W
Y
