TTK 68 E / TTK 69 E
EN
OPERATING MANUAL
DEHUMIDIFIER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTK 68 E and is the answer not in the manual?

Questions and answers

Related Manuals for Trotec TTK 68 E

Summary of Contents for Trotec TTK 68 E

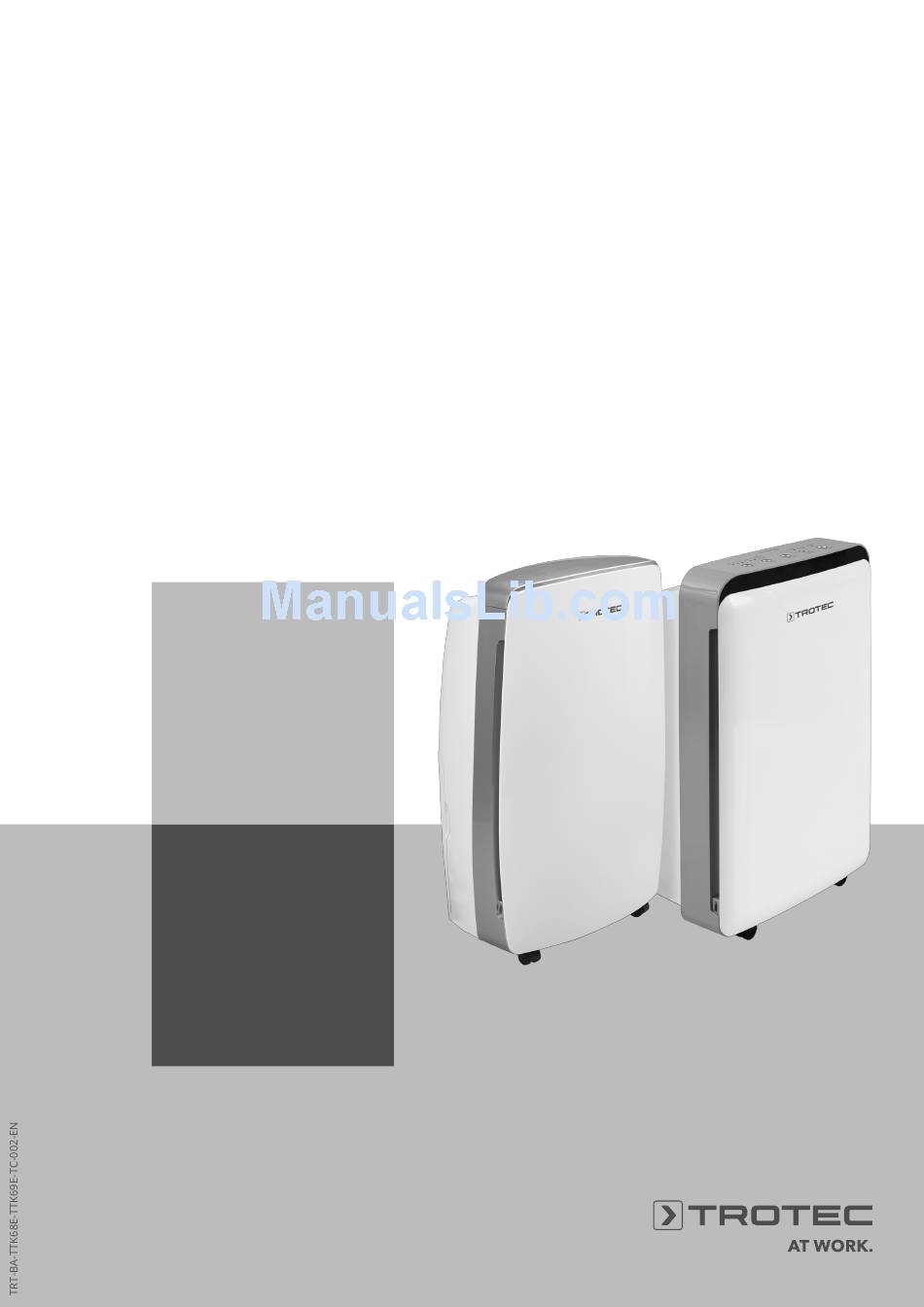

  • Page 1 TTK 68 E / TTK 69 E OPERATING MANUAL DEHUMIDIFIER...

  • Page 2: Table Of Contents

    No liability is accepted for damages resulting from improper use. In such cases, entitlements to a warranty are then also forfeited. TTK 68 E http://download.trotec.com/?sku=1120000056&id=1 TTK 69 E http://download.trotec.com/?sku=1120000057&id=1 Operating manual – dehumidifier TTK 68 E / TTK 69 E...

  • Page 3: Safety

    – changing rooms etc. Improper use Do not place the device TTK 68 E / TTK 69 E on wet or flooded ground. Do not use the device outdoors. Do not place any objects, e.g. wet clothing, on the device for drying.

  • Page 4: Information About The Device

    Information about the device TTK 68 E Description of the device The device TTK 68 E / TTK 69 E uses the principle of condensation to automatically dehumidify rooms. The fan sucks damp room air through the air inlet, the air filter, the evaporator and to the condenser located behind it.

  • Page 5: Transport And Storage

    • With a cover to protect it from invasive dust, if necessary. Designation Control panel Air inlet Cover of condensation drain hose connection Wheels Transport handle Power cable Condensation tank Air outlet Front cover with air filter Operating manual – dehumidifier TTK 68 E / TTK 69 E...

  • Page 6: Set-Up And Installation

    Timer button for programming the time Humidity button for setting the desired humidity level Mode button for setting the desired operating mode Fan button for setting the desired fan stage Operating manual – dehumidifier TTK 68 E / TTK 69 E...
  • Page 7 ð The desired humidity level is indicated on the LC display (12) for approx. 5 s. ð The desired humidity level is set. ð The room's current humidity level will be indicated on the LC display (12) again. Operating manual – dehumidifier TTK 68 E / TTK 69 E...
  • Page 8 Operation with hose attached to the condensation connection. The devices TTK 68 E and TTK 69 E come with the following operating modes: • Smart (automatic mode) – The humidity level is regulated automatically depending on the room temperature.
  • Page 9 Memory function In case of brief power failures the device memorizes the set fan stage and operating mode. The pre-programmed start and stop times for automatic operation are not saved. Operating manual – dehumidifier TTK 68 E / TTK 69 E...

  • Page 10: Errors And Faults

    • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air- conditioning or by Trotec. Operating manual – dehumidifier TTK 68 E / TTK 69 E...
  • Page 11 Should the filter be heavily soiled, clean it using warm water and a neutral detergent. 5. Allow the filter to dry completely. Never insert a wet filter in the device. Operating manual – dehumidifier TTK 68 E / TTK 69 E...
  • Page 12 ð In doing so, make sure that the float is positioned correctly. ð Make sure that the condensation tank is inserted correctly, otherwise the device cannot be switched back on. Operating manual – dehumidifier TTK 68 E / TTK 69 E...

  • Page 13: Technical Annex

    PROXIMITY MOTOR SWITCH AC-L AC-L YEGN YEGN COMP-GL COMP-GL POWER POWER θ θ STEPPING STEPPING TUBE TUBE MOTOR MOTOR TEMP.SENSOR TEMP.SENSOR COMP. YEGN COMP. R(M) R(M) YEGN COMP. COMP. Operating manual – dehumidifier TTK 68 E / TTK 69 E...
  • Page 14 Exploded assembly drawing TTK 68 E Note! The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. Operating manual – dehumidifier TTK 68 E / TTK 69 E...
  • Page 15 Electric Controller Box Air Guide Bushing Water Tray Assy Main Board Guide Louver Liquid Level Switch Sub-assy Seal Cover Front Grill Liquid Level Switch Electric Box Cover Crank Water Tray Operating manual – dehumidifier TTK 68 E / TTK 69 E...
  • Page 16 Exploded assembly drawing TTK 69 E Note! The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. Operating manual – dehumidifier TTK 68 E / TTK 69 E...
  • Page 17 The device uses an environmentally and ozone-neutral cooling agent (see Technical Data). Dispose of the refrigerant appropriately and according to the national regulations. Operating manual – dehumidifier TTK 68 E / TTK 69 E...

  • Page 18: Declaration Of Conformity

    EC Low Voltage Directive 2006/95/EC and the EC Directive 2004/108/EC about electromagnetic compatibility. Herewith, we declare that the device TTK 68 E / TTK 69 E was developed, constructed and produced in compliance with the named EC directives.
  • Page 20 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...

This manual is also suitable for:

Ttk 69 e
