Applicable Country & Regions:
All Regions

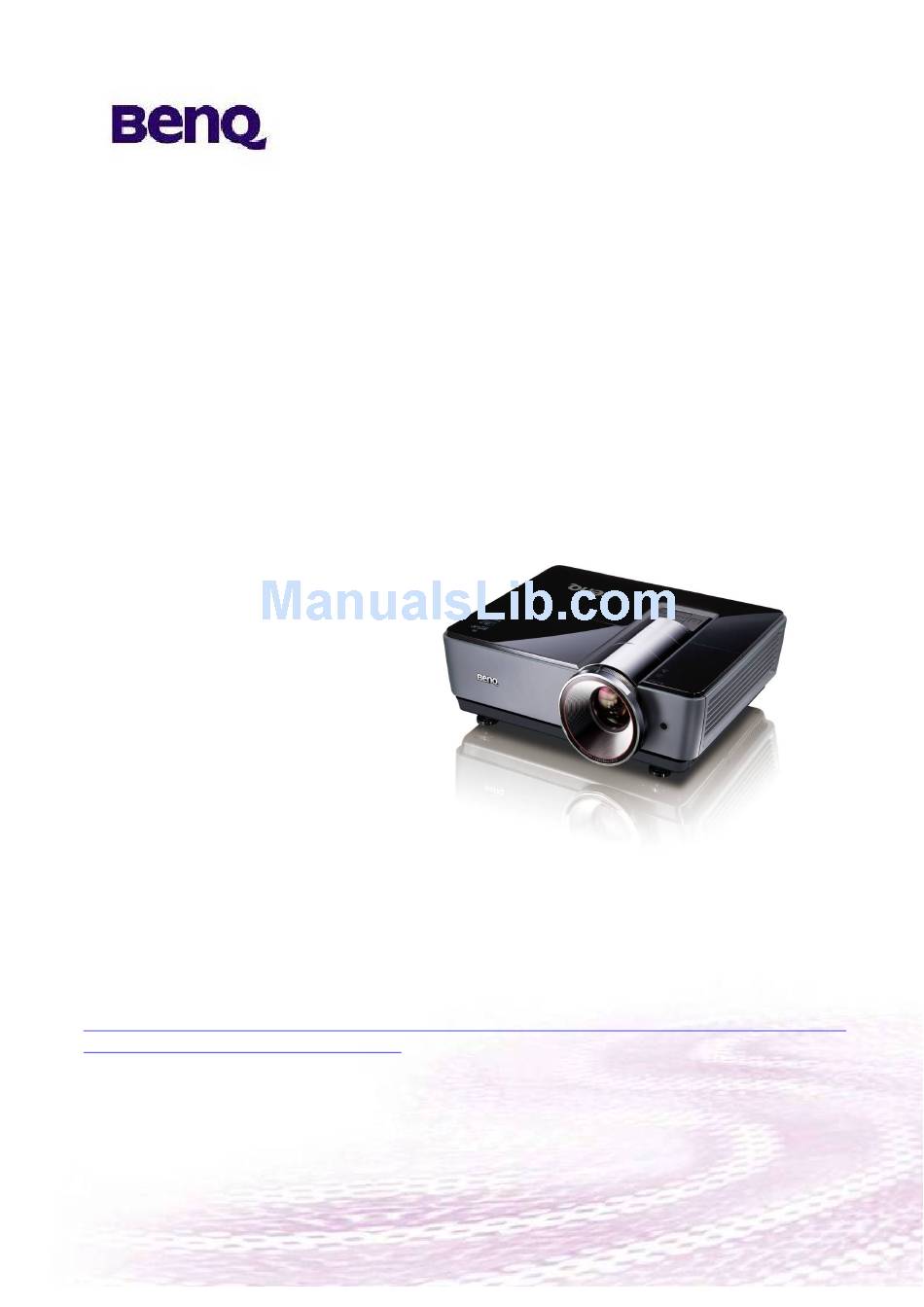

Product Service Manual – Level 2
Service Manual for BenQ:
Projector/SX930
<9H.JEG77.15X>
Version: 00a
Date:2015/09/22
Notice:
For RO to input specific "Legal Requirement" in specific NS regarding to responsibility and liability
statements.
Please check BenQ's eSupport web site, http://esupport.benq.com, to ensure that you have
the most recent version of this manual.
First Edition (Sep., 2015)
© Copyright BenQ Corporation 2015 All Right Reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX930 and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ SX930

Summary of Contents for BenQ SX930

  • Page 1 Notice: For RO to input specific “Legal Requirement” in specific NS regarding to responsibility and liability statements. Please check BenQ’s eSupport web site, http://esupport.benq.com, to ensure that you have the most recent version of this manual. First Edition (Sep., 2015)

  • Page 2: Table Of Contents

    Content Index 1. Abbreviations & Acronyms ............. 4 2. About This Manual ................5 2.1 Trademark ........................5 2.2 Introduction ......................... 5 2.3 Important Service Information ..................5 2.4 Safety Notice ....................... 6 2.5 Compliance Statement ....................6 2.6 General Descriptions ....................6 2.7 Related Service Information ..................
  • Page 3 Update History Revision Chapter Changes Date Rev. 00a Initial version 2015/9/21...

  • Page 4: Abbreviations & Acronyms

    1. Abbreviations & Acronyms Analog to Digital BenQ BenQ Corporation Color Wheel Concave Mirror Digital Light Processing / Texas Instruments® Digital Micro mirror Device Digital Video Interface DVI-I Digital Video Interface-Integrated Projection Lens Pond of Mirrors Interface Between Data terminal Equipment and...

  • Page 5: About This Manual

    2. About This Manual This manual contains information about maintenance and service of BenQ products. Use this manual to perform diagnostics tests, troubleshoot problems, and align the BenQ product. Important Only trained service personnel who are familiar with this BenQ Product shall perform service or maintenance to it.

  • Page 6: Safety Notice

    This Service Manual contains general information. There are 2 levels of service: Level 1: Cosmetic / Appearance / Alignment Service Level 2: Circuit Board or Standard Parts Replacement 2.7 Related Service Information Service Web Site eSupport Website: BenQer: http://esupport.benq.com/v2 ASP: http://esupport.benq.com/...

  • Page 7: Product Overview

    3. Product Overview The projector consists of DLP projector controller, Lamp controller, Power supply system, and System cooling controller. The DLP controller captures digital PC data and video data and then converts them into the DMD display device. The Lamp controller dominates the lamp’s power and synchronizes its frequency with color display sequence.

  • Page 8: Specification Overview

    3.1 Specification Overview  Specification Overview SX930 Version: 02 Item Specification 1.Panel / Driver IC Information 1.1 Panel Type 0.7"XGA 2xLVDS 14° Type DMD 1.2 Package Type Type A 1.3 Size 0.7” 1.4 Pixels 1024(H) x 768(V) 1.5 Color Depth 30 Bits (1.07 Billion Colors)
  • Page 9 <2/3 pixel <1.0 pixel <1.0 pixel <1.0 pixel DOF 5 cm checked by E pattern. Refer to Appendix A24 "+" and"-" desinition "+":move projector backward to far away the screen and until focus limit. Record the backward distance(+) for the rear 2.13 DOF (Min.
  • Page 10 Adjustable foot in front, rubber foot in rear. Front/ Rear foot 5.6 Adjustment Feet Tilt: 0-4.5∘, Right/Left: +4.0∘/-4.0∘ Match BenQ’s ceiling mount required. 5.7 Ceiling Mounting Use the same mounting as current shipping projectors. All color of screws should similar with the plastic color which 5.8 Screws close it.
  • Page 11 Normal mode : 41dBA @ 25°C(table center) Max. Eco mode : 38dBA @ 25°C(table center) 6.5 Fan Numbers 6.6 Sound Quality 1K~20K < 9dB (follow ECMA-74) 6.7 Auto Blank distance 7.0 Power Requirements 7.1 Power Supply (Normal) Max. 645W 0.5W Max. at 100 ~ 240VAC (disable loop through, Lan function) Standby 3W MAX at 230VAC 50HZ for network...
  • Page 12 1) BenQ Restriction of Hazardous Substance Guideline 10.4 GP (SUP-QM-07-02) 2) Other GP control items please refer PRR 11.0 Reliability 40000 hours except DMD chip, Color wheel, Lamp and Fan, 11.1 MTBF Ballast 1). Lamp hour = Total lamp hour= X(hours used in Normal mode) + Y(hours used in Eco mode) 11.2 Lamp Lifetime...
  • Page 13 (3) Press IR The projector would turn off Lamp Saver mode The lamp power will back to original mode power 12.10 Smart ECO* 12.11 Off-line cooling 13.0 Green Eco design 13.1BenQ ecoFACTS Refer to BenQ ecoFACTS Checkinglist Note: Follow USHIO Lamp Operating.
  • Page 14  Input / Output Connectors 1.Input Terminals RGB DB-15 x 1 (shared with Component 1) 1.1 Computer Input - 1 1.2 Computer Input - 2 1.3 Video Composite Video (RCA X 1) 1.4 S-Video S-Video (Mini Din) X 1 1.5 Component - 1 shared with computer 1 1.6 Component - 2 1.7 DVI - 1...

  • Page 15: Electrical Specification

    3.3.2 Control Command 3.4 Lan Control RJ-45 x1. Follow IEEE802.3u 3.5 12V Trigger (Screen Control) DC power jack(standby mode is off ) 3.5.1 Driving Power Output 12V, 500mA max 3.5.2 Overload Protection < 1A 3.6 Wired Remote Control  Accessories 1.Accessory 1.
  • Page 16 (3) Support Timings: (Version 05) Horizontal Vertical Sub-carrier User Manual 3D Field Supported Sequential Video mode frequency frequency Frequency (KHz) (Hz) (MHz) ◎ NTSC 15.73 3.58 15.63 4.43 SECAM 15.63 4.25 or 4.41 PAL-M 15.73 3.58 PAL-N 15.63 3.58 PAL-60 15.73 4.43 NTSC4.43...
  • Page 17 (2) Signal Level: Signal Parameter Type Pr DATA Impedance Pb DATA Black pedestal Volts Y DATA_SOG Impedance Amplitude Volts peak-to-peak Video amplitude Volts peak-to-peak Sync amplitude Volts peak-to-peak Black pedestal Volts Red GND Green GND Blue GND Support Timings: (Version 05) User Manual 3D Field Horizontal...
  • Page 18 TMDS Data0+ MHL+ TMDS Data0 Shield MHL Shield TMDS Data0– MHL－ TMDS Clock+ TMDS Clock Shield TMDS_GND TMDS Clock– Reserved (N.C. on device) CD_PULLUP DDC/CEC Ground VBS_CBUS_GND +5 V Power (max 50 mA) VBUS Hot Plug Detect CBUS (2) Support Video Timings: (Version 05) Horizontal Vertical Dot Clock...
  • Page 19 94.500 XGA_120 ◎ 119.989 97.551 115.500 (Reduce Blanking) 1152 x 864 1152 x 864_75 75.00 67.500 108.000 1024x576 BenQ Notebook Timing 60.00 35.820 46.996 1024x600 BenQ Notebook Timing 64.995 41.467 51.419 ◎ ◎ ◎ 1280 x 720_60 45.000 74.250 1280x720 ◎...
  • Page 20 (b)MHL mode: -Support LPCM, two audio channels (follow IEC 60958 and IEC 61937) -Support audio sampling rate : 32kHz, 44.1kHz, 48kHz - Support audio bit rate : 16 bits, 20 bits, 24 bits (C) DVI Mode: Analog audio is supported through PC audio input terminal. Note.
  • Page 21 XGA_120 ◎ 119.989 97.551 115.500 (Reduce Blanking) 1152 x 864 1152 x 864_75 75.00 67.500 108.000 1024 x 576 BenQ NB Timing 60.0 35.820 46.966 1024 x 600 BenQ NB Timing 64.995 41.467 51.419 ◎ ◎ ◎ 1280 x 720_60 45.000...
  • Page 22 1024x768 MAC19 74.93 60.241 80.000 @75Hz 1152x870 MAC21 75.06 68.68 100.00 @75Hz 1920x1080 1920X1080_60 67.5 148.5 @60HZ (Reduce Blanking) 1920X1200_60 1920x1200@60HZ 59.95 74.038 (Reduce Blanking) 1920X1080_60 1920X1080(VESA) (for Auditorium 59.963 67.158 model) Note. There 3D timing showing depend the EDID file and VGA display card. It is possible that user cannot choose the above 3D timings on VGA display card.
  • Page 23 1.1.9 Audio Headphone Output (Phone-Jack φ3.5mm (1) Pin definition (2) Signal Level: Signal Parameter Type Audio Out Right Amplitude mV ( when input = 500mVrms , volume maximum and Measurement on 10kohm loading) Load Impedance 10kohm Ω Audio out detect Output ON 23/24 Output Off...
  • Page 24 Signal Common Mode Termination Common Mode Termination Common Mode Termination Common Mode Termination Lan LED information for A-Top : LED define as following: Green => Link LED . Solid on , Network connection is normally. Yellow => Operation LED Flash, 4 sec on/off, MCU is working normally. Flash 0.5 sec on/off, FW Download mode.

  • Page 25: Power Supply Specification

    Signal Parameter Type Audio Impedance (audio in) Kohm Amplitude (audio in) mVolts rms Bandwidth 300Hz 16kHz S/N Ratio Total Harmonic Distortion  Power Supply Specification 1.1 Input Power Specification Specification Description Input Voltage Range The unit shall meet all the operating requirements with the range 90 ~ 264 VAC Frequency Range The unit shall meet all the operating requirements with an input...
  • Page 26  UI Specification Keypad Description Key Action Definition Key Name Detailed Description Left/Keystone 1. When user press the button once, it will decrease the keystone horizontal value 2. If there is SOD menu, user can press this key to move to the left item Right/Keystone 1.
  • Page 27 Remote Control Function and Key Code Definition (Detail See Appendix2)

  • Page 28: Packing

    3.2 Packing 【NOTE】The updated Service BOM is on SPO system. Please check it to order service parts. 1. For 9H.JEG77.15X: Put Power Cord & Warranty Card ->Seal Doggy Door -> Paste CTN Label...
  • Page 29 CTN LBL PRINTING: 1. For 9H.JEG77.15A Actual Date...
  • Page 30 3. For 9H.JEG77.15E/15U Actual Date Actual Date...
  • Page 31 4. For 9H.JEG77.15T Actual Date...
  • Page 32 SPEC LBL PRINTING: 1. For 9H.JEG77.15X, exclude 9H.JEG77.15C...
  • Page 33 2. For 9H.JEG77.15E...
  • Page 34 LAMP LBL PRINTING...

  • Page 35: Customer Acceptance

    3.3 Customer Acceptance 1.0 SCOPE This document establishes the general workmanship standards and functional acceptance criteria for projector produced by BENQ. 2.0 PURPOSE The purpose of this publication is to define a procedure for inspection of the projector by means of a customer acceptance test, the method of evaluation of defects and rules for specifying acceptance levels.
  • Page 36 Note: If BenQ defect undefined failure, and it judged that is reduce the merchandisebility, BenQ CM Inform this defect. After that parties make communication and decide how to solve.
  • Page 37 8.5 The evaluation must be within the limits of the product specification and, for not specified characteristics, refer to the sample machine or the judgment of BENQ QA Engineer. But any kind of proposals or judgments must be reasonable and acceptable by both sides.

  • Page 38: Level 1 Cosmetic / Appearance / Alignment Service

    4. Level 1 Cosmetic / Appearance / Alignment Service 4.1 Cosmetic / Appearance Inspection Criteria TABLE 1. General Product of plastic outlook of dot, blemish, and others spec inspection standard (产 品一般外观塑料件的黑点、杂质、凸点、砂粒缺陷检验标准) A 级面 B 级面 C 级面 规格 A surface B surface C surface Spec...
  • Page 39 TABLE 2 :(General Product of plastic outlook inspection standard) NO Appearance Spec 缩水 A 区: 不可有缩水, 以带手套检验, 手摸过去不可有凹 陷的感觉 Shrinkage A region: No Shrink. With gloves, no feeling of sink when touching the surface B / C 区: 不能明显看出 B/C region: not obvious 流痕, 咬花, 光泽...
  • Page 40 Side C: W < 0.2mm , L < 1mm 容许 4 个 Only 4 this kind of scratch is accepted W < 0.2mm , L < 3mm 容许 3 个 Only 3 this kind of scratch is accepted W < 0.2mm , L < 3-5mm 容许 2 个 Only 2 this kind of scratch is accepted Note: 刮伤见底材者不允许...

  • Page 41: Operational Inspection Criteria

    4.2 OPERATIONAL INSPECTION CRITERIA 1. TEST PATTERN PATTERN PATTERN TEST ITEM ANSI Brightness、Bright Uniformity、FOFO Full white Contrast Ratio、CIE white coordinate、Throw Ratio、Zoom Ratio、Distortion Full Dark FOFO Contrast Ratio Full Red Impurity、CIE coordinate Full Green Impurity、CIE coordinate Full Blue Impurity、CIE coordinate Chromo Focus Range 1280 x 1024 General-1...
  • Page 42 2. TEST CONTENT: Test Condition TEST ITEM Input Equipment Chroma pattern 1280 x 1024 Focus/ Focus range PC Mode D-SUB Chroma FULL W , R , G , B Impurity, CIE coordinate, pixel fail NTSC disk/ PAL disk Picture quality Video S-video DVD player...
  • Page 43 Contrast: Preset Video NTSC/ PAL/ SECAM VG828 Test pattern Brightness: Preset NTSC (480i)/ 480p/ PAL Contrast: Preset YPbPr (576i)/ 576p, HDTV (720p/ VG828 Test pattern Brightness: Preset 1080) Contrast: Preset S-Video NTSC/ PAL/ SECAM VG828 Test pattern Brightness: Preset NTSC (480i)/ 480p/ PAL (576i)/ 576p, HDTV (720p/ 1080);...
  • Page 44 6. IMAGE QUALITY SPECIFICATION: Scope ® This document specifies the image quality requirements applicable to the DLP .7XGA Type A and ® Series 450 Value Component Set. The Component Set provides the DLP . 7XGA Type A and Series 450 Value Projector with digital imaging functionality based on Digital Micromirror Device (DMD) technology.
  • Page 45 The Gray 10 screen is used to test for major light blemishes. All areas of the screen are colored a Microsoft Paintbrush gray 10 (green, red, and blue set at 10). NOTE: If linear degamma is not used then the Microsoft Paintbrush values must be adjusted to match the degamma table being used in order to generate an equivalent gray level on the test screen image.
  • Page 46 may not be returned to TI without prior approval by TI. Screens < Gray 10 shall not be used as a basis for rejecting a DMD for image quality.

  • Page 47: Software/Firmware Upgrade Process

    4.3 Software/Firmware Upgrade Process A. Basic Operating (a) Standby Mode： User can just plug in power cord, then projector will enter standby mode. Power LED will show Red for around 1 sec, then show Orange continuously as the figure shown below. When the power LED shows Red, it means system is not ready for standby.
  • Page 48 (c) Power On： User can press Keypad Power to turn on projector. User can also use IR remote controller and RS-232 Command：<CR>*pow=on#<CR> to do this action. When system turning on, power LED will flash Green as the figure shown below. (d) Power Off：...
  • Page 49 B. Download MCU, Scalar Firmware, LAN Firmware (a) Auto MCU Code Download：(for Low-Power Standby) Condition： Auto Detect, download by MCU itself. Situation 1：MCU code is empty (The 1st time to plug in power cord) Situation 2：MCU version update Procedure： Step1: Go to Factory page1(as right figure). Step2: Select “MCU Download”.
  • Page 50 (b) Service Tool –Read and Write data in Main Board • Notice: Need to use service tool to read data from Main board before FW re-download or changing Main Board. After FW downloaded, need to write data form service tool into Main Board. •...
  • Page 51 Change an installation dictionary or agree default dictionary and then click the icon button. Enter a new group name or select one from the “Existing Groups” list and then click “Continue.” Click “OK” and a successful installation is completed.
  • Page 52 Connect PC with projector by a RS232 cable. Turn on projector. Click “BenQ S&W Series Service Tool” from Program Files menu. Click “Setup” first. Double click to select a folder for saving projector data and a specified COM port and then...
  • Page 53 After selecting a data folder, the folder path is showed in “File Path” in “File” page. Click “Read System Data.” (Note) (Note: Since S series (SU922/SW921/SX920/SU931/SX930) don’t support ISF function, the “CCA/White Balance/ISF” pages will disappear after “Read” success.) ADC calibration data are uploaded first and color temperature data after.
  • Page 54 10. After all pages data are uploaded, “Read System Data” is completed. 11. After completing “Read System Data,” there is a folder named “Read Data” added in the selected folder before. 12. A file named “Scaler.dat” including adjustment data of projector is added in the “Read Data” folder.
  • Page 55 16. Click “Retrieve System” to write back adjustment data. 17. CW Index Delay data are written back first and other data after. 18. After data in all pages are written back, “Retrieve System” is completed.
  • Page 56 (c) Download Scalar Firmware i. DLP Composer lite install procedure (1) Installation 1. Double click the Setup file for DLP Composer Lite (use 11.0 or above version) to start to install program. 2. When the Installation Wizard appears, click “Next”. 3.
  • Page 57 Note: The default installation directory is: C:\Program Files\DLP Composer Lite 11.0.1\ If you want to install to a different directory (perhaps alongside a prior release of DLP Composer™ Lite), click the "Browse" button on the "Select Features" page. 5. When finishing installation, click “Finish”, and then restart your computer to complete the installation process.
  • Page 58 2) Setting for your first use  Select Library: 1. Save the “FlashDeviceParameters.txt” into the DLP Composer Lite11.0 installed folder. You can get the txt file from the installation file “DDP442X Download_Tool_Ver1.0.rar” or later version.  USB Driver Installation (Only for download by USB): 1.
  • Page 59 4. Follow the message show in message, and complete the installation when you see the “Completing the Device Driver Installation Wizard” message.
  • Page 60 ii. Download Procedure  How to download (Method-1 : By RS232) Hardware required Standard RS232 Download cable (SPEC as below) D-sub 9-pin Female for Both terminals WIRE ARRANGEMENT COLOR BLACK BROWN ORANGE YELLOW GREEN BLUE PURPLE GRAY CASE DRAIN WIRE CASE Personal computer or laptop computer Software required...
  • Page 61 To select the RS-232 communications interface, choose "Preferences" from the "Edit" menu, click the "Communications" page and choose "Serial Port". Click on “Flash Loader” and browse the image file (new version firmware)
  • Page 62 Select Complete Image Download, and make sure to check “Skip Boot loader area (64KB)” Press “Reset Bus” and check the status which should show “Bus Reset” Press “Start Download” to begin update new firmware. Press “Yes” to continue.
  • Page 63 10. Wait till composer lite notice download complete. <Notice: After download FW, make sure the adjusted values are written to projector by Service Tool.>...
  • Page 64  How to download (Method-2 : By USB) Hardware required Standard USB Download cable(mini B type) Personal computer or laptop computer Software required DLP Composer Lite program New version FW Download procedure <Notice: Before download FW, make sure the adjusted values are read and kept by Service Tool.> Connect USB cable to PC and projector Let projector be in Download Mode: - Press and hold keypad-POWER and AUTO at the same time, then plug in power cord.
  • Page 65 Click on “Flash Loader” and browse the image file (new version firmware) Select Complete Image Download, and make sure to check “Skip Boot loader area (64KB)” Press “Reset Bus” and check the status which should show “Bus Reset” Press “Start Download” to begin update new firmware.
  • Page 66 10. Press “Yes” to continue. 11. Wait till Download complete. <Notice: After download FW, make sure the adjusted values are written to projector by Service Tool.>...

  • Page 67: Projector Settings

    (d) LAN (ATop) Firmware Download : Condition： When it’s necessary to download LAN Firmware. Procedure： <Projector Settings> Step1: Reset projector IP address to default. Default IP is 10.0.50.100 (1) Enter Factory Page 7 to reset IP. (as below figure) <PC Settings> Step1: Please close firewall.
  • Page 68 Step3: Go to Web page and change setting to Step4: Open Internet Explorer Step5: input Web address : http://10.0.50.100/firmwareUpdate.html Step6: Press “Update” bottom Step7: Select “Continue”...
  • Page 69 Step8: Press “explore” button to select firmware file. Step9: Select the firmware file. Step10: Press “Upgrade” button, and start to download.
  • Page 70 Step11: After finish it will show “Re Login” button. Press it go to next page. Note: 1. Use LAN cable to connect PC and projector directly. 2. If download finish and not show “Re Login”, go to step4. Execute Firmware Update again. 3.

  • Page 71: Factory Menu

    4.4 Factory Menu Method to enter factory menu Press Menu/EXIT on keypad than the main menu popup When showing main menu, press Source + Mode/ENTER at the same time Factory menu popup at the top-left of display...
  • Page 72 Page1: Page2:...
  • Page 73 Page3: Page4:...
  • Page 74 Page5: Page6:...
  • Page 75 Page7:...

  • Page 76: Connection

    4.5 RS-232 connection 1. Below shows the illustration of connection between PC and Projector. <CAUTION>  Make sure that your computer and projector are turned off before connection.  Power on the computer first, and then plug the power cord of the projector. (It may cause Com port incorrect function, if you do not follow this instruction) ...
  • Page 77 Interface Settings RS-232 protocol Baud Rate 115200 bps (default) Changeable settings in User OSD (2400/4800/9600/14400/19200/38400/57600/115200) Data Length 8 bit Parity Check None Stop Bit 1 bit Flow Control None Software specification 1. When input cmd fail, e.g. correct input is “*pow=?#” but input “*po=?#”, or input “*mute=on#” while projector is already mute, it will show “*Illegal format#”.
  • Page 78 c. Select a permitted COM port – COM1 usually d. Select “115200” bps for baud rate; other setting is default e. The terminal window appears, then you can key-in commands. f. Input a valid RS232 command at terminal window, and press “Enter”, projector will receive...
  • Page 79 command and act. (RS232 command refer to Appendix-RS232 command list) Example as below : For example, key-in command to inquiry Volume, System feedback Volume=5 If put command to change source as RGB, it will directly show RGB source in projection screen. Command Category Refer to Appendix 2...

  • Page 80: Adjustment / Alignment Procedure

    4.6 Adjustment / Alignment Procedure Content 4.6.1. Color Wheel Delay Alignment 4.6.2. Overfill adjustment 4.6.3. PC Alignment Procedure...
  • Page 81 4.6.1. Color Wheel Delay Alignment Procedure: Enter Factory Mode Enter Block 1 Change CW Delay by adjusting the following gray pattern to smooth 32 Gray pattern...
  • Page 82 4.6.2. Overfill adjustment “Full White Pattern” is suggested for this alignment. Adjust 2 Overfill adjustment screws (upper side / lower front side of Optical Engine) behind Color Wheel. (Notice: Suggest taking off Upper case and Front case before adjustment. After finishing adjustment, then assemble the Upper case and Front case.) Alignment Criteria is to adjust these 2 screws until “No Dark Edges”...
  • Page 83 4.6.3 PC Alignment Procedure Condition: When 32 gray level image is abnormal or not smooth. Equipment： Pattern generator or PC with standard output (Notice: If uses PC, the signal level is calibrated to this PC) Source = Compuetr-1 : use standard D-sub cable OSD Default value：...

  • Page 84: Level 2 Circuit Board And Standard Parts Replacement

    5. Level 2 Circuit Board and Standard Parts Replacement 5.1 Product Exploded View Module 1 – Total Exploded View...

  • Page 86: Module 2 - Assy Upper Case

    Module 2 – ASSY UPPER CASE...
  • Page 87 Module 3 – ASSY LOWER CASE...

  • Page 88: Product Disassembly / Assembly

    5.2 Product Disassembly / Assembly Seq Figure Step Disassemble lamp door Disassemble mylar Disassemble the upper case Disassemble the keypad board...
  • Page 89 Disassemble the rubber keypad Disassemble the door lock Disassemble the zoom/ focus ring cover Disassemble the lens shift cover Disassemble the keypad mylar...
  • Page 90 Disassemble the focus ring Disassemble the zoom ring Disassemble the case front Disassemble the IR board Disassemble the lens IR front...
  • Page 91 Disassemble the mylar logo Disassemble the case rear Disassemble lens IR rear Disassemble the case inlet Disassemble the speaker...
  • Page 92 Disassemble the case outlet Disassemble the speaker Disassemble the wire dresser Disassemble the SHD Disassemble the fan inlet...
  • Page 93 Disassemble the lamp Disassemble the fan power outlet Disassemble the main board Disassemble the BKT Disassemble the lamp module...
  • Page 94 Disassemble the ENG module Disassemble the sponge Disassemble the mylar Disassemble the blower module Disassemble the nozzle top...
  • Page 95 Nozzle bottom Frame thermal breaker Thermal breaker Disassemble the blower bottom Disassemble the blower top...
  • Page 96 The frame blower Disassemble the grounding wire Disassemble the power board Disassemble the mylar...
  • Page 97 Disassemble the blower BST Disassemble the ballast board Mylar BST Disassemble the wire BST to PWR...
  • Page 98 Disassemble the wire BST to MB Disassemble the grounding wire 53.Disassemble the grounding wire...
  • Page 99 Disassemble the grounding wire Disassemble EMI board Disassemble the wire ESD board to PWR...
  • Page 100 Disassemble the BKT EMI BD EMI BD Disassemble the lamp 61.Disassemble the stand off...
  • Page 101 Disassemble the lamp wire Disassemble the door switch Disassemble the rubber foot Disassemble the foot Disassemble the front foot...
  • Page 102 Disassemble the wire dresser Disassemble the sponge Lower case...

  • Page 103: Module Assembly Key Point - Optical Engine

    5.3 Module Assembly Key Point - Optical Engine 1. Light Pipe Module assembly and overfill alignment 1.1 Assembly LP Module to HSG DMD i. Assembly two Overfill adjustment screws (M3) to HSG DMD (Fig. 1-1). ** Adjustment criteria refer to below item 1.2 & (Fig. 1-2). ii.
  • Page 104 Pre assemble this screw not over the side surface. Pre assemble this screw not over the bottom surface. Fig. 1-2 Insert the LP Module Fig. 1-3 2. M3 Screw 1. Hook to HSG DMD Fig. 1-4...
  • Page 105 LP Datum of DMD HSG Overfill adjustment screws Fig. 1-5 1. Hook top of LP Baffle first 2. Hook bottom of LP Baffle well Fig. 1-6 Fig. 1-7 2. Assembly SUB HSG MODULE: 2.1 SCM and FM Assembly Hook “Cover SUB Clip Side” on SUB HSG. (Fig. 2-1 & 2-2) Place SCM on SUB HSG SCM DTM and makes SCM touching DTM truly.
  • Page 106 Cover SUB Clip Side Hook Fig. 5-1 Fig. 5-2 SCM DTM Assemble SCM on DTM Fig. 2-3 Fig. 2-4 M3 Screw Cover SUB Clip Up Cover SUB Clip Down Fig. 2-5 Fig. 2-6...
  • Page 107 FM DTM Fig. 2-7 Fig. 2-8 Clip FM Clip FM2 Fig. 2-9 Fig. 2-10 Sponge Paste Mylar Align Edge Fig. 2-11 Fig. 2-12...
  • Page 108 3. AL and SUB HSG Assembly: Placed “AL” on the “HSG DMD”. The “raised surface” of “AL” shall toward “DMD direction” (Fig. 3-1) Paste “ Mylar ” on DMD HSG. (Fig. 3-2-1) To assemble ”HSG ILL SUB Module” with “HSG DMD” and cover over on “AL” and the lock with screws (Fig.3-2-2).
  • Page 109 Sponge Fig. 3-3 Fig. 3-4 4. DMD SOCKET Module: Judge Socket and DMD alignment keying first. (Fig. 4-1 & Fig. 4-2) Alight keying and Assemble DMD no Socket (Fig. 4-3). Place “DMD sponge” on DMD (Fig. 4-4). Chamfe Chamfe Alignment keying Alignment keying (Right angle) (Right angle)
  • Page 110 5. Assembly Optical ENG Assemble “Baffle DMD” to “HSG DMD” (Fig.5-1-1 & Fig.5-1-2). Assemble Socket DMD Module to “HSG DMD” (Fig. 5-2, Fig.5-3). Alignment keying Alignment keying Fig. 5-1-1 Alignment keying Alignment keying Baffle DMD Fig. 5-1-2 Fixed holes of DMD HSG Fig.
  • Page 111 Fixed shafts of Socket DMD Fig. 5-3 Assemble Chip B/D & BACKER RUBBER (Fig. 5-4) Fig. 5-4 D. Assemble & BACKER RUBBER (Fig. 5-5) BACKER UBBER Alignment keying Fig. 5-5...
  • Page 112 Assemble Heatsink place contact DMD (Fig. 5-6). 1.>Press center of Heatsink before assemble spring screw then keeps press until spring screw assembly finish. 2.>Pre-fastening Sequence: [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ] (Fig. 5-7). 3.>Fastening Sequence: [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ] (Fig.
  • Page 113 G. Assemble “BKT Link Lamp & CW shield” on “DMD HSG” and then screws well (Fig.5-9). M3 Screw 6. Assembly Lens Shift Use Grease smear on “HOLDER_LENS_SHIFT”. (Fig.6-1) Fig.6-1 Assemble “HOLDER_LENS_SHIFT” and lock with screws well. (Fig. 6-2) M3 Screw Fig.
  • Page 114 Use Grease smear on “HOLDER ADAPTER”. (Fig.6-3) Fig.6-3 D. Use Grease smear on “HOLDER ADAPTER” . (Fig. 6-4) Fig.6-4 Assemble “HOLDER ADAPTER” by “SHAFT” screw. (Fig. 6-5) Screw SHAFT SHAFT need to turn in the end. HOLDER ADAPTER Fig. 6-5 Use Grease smear on “PLATE LENS SHIFT”...
  • Page 115 Fig.6-6 G. Assemble “LENS SHIFT PLATE” and screw Well. (Fig. 6-7) LENS SHIFT PLATE M3 Screw Fig. 6-7 7. Assembly Lens Assemble “Lens” and lock with screws well Assemble Lens and the Assembly direction must be horizontal，and do not impact CM. (Fig.
  • Page 116 Don’t impact CM Assemble horizontally Fig. 7-1 M2 Screw 1. Pre-fasting firstly, screw torque is 1~2 kgf-cm. 2. Lock screws well, screw torque is 6~7 kgf-cm Fig. 7-2 Assemble Lamp Module to “BKT Link Lamp” and then lock with screw well (Fig. 7-3). M3 Screw Fig.

  • Page 117: Module Assembly Key Point - Mechanical

    5.4 Module Assembly Key Point - Mechanical Mechanical Assembly Concerns 1. Lower Case module 1-1 Assemble ADJ foot & Rubber foot on lower case ADJ foot Rubber foot 1-2 insert pin ADJ foot in the ADJ foot front pin ADJ foot 1-3 assemble ceiling screw ceiling screw*4 CLIP CABLE...
  • Page 118 Assemble EMI BD onto lower case 2-1. assemble BKT AC socket onto EMI BD by 2 screw. 2-2. Assemble EMI BD onto lower case 2-3. Assemble 3 grounding wire with EMI BD, please notice the direction of each wire. GND wire A: 140mm GND wire B: 65mm GND wire C: 285mm 2-4.
  • Page 119 3-2 assemble lamp box onto lower case with 4 screw (8F.VG564.8R0), and plug the door switch on EMI BD, please notice the wire dressing. Door switch Lamp wire Assemble Ballast BD 4-1 plug wire ballast to main BD, wire ballast to PWR, & lamp wire on ballast 4-2insert ballast mylar on ballast BD and assemble ballast BD on lower case, please notice the wire dressing.
  • Page 120 4-4 assemble mylar EMI BD on lower case. mylar EMI BD Assemble power BD on lower case 5-1 Assemble power BD on lower case by screw GND wire D 8R0 screw*2 5-2 plug wire ballast to PWR, and notice the wire dressing GND wire C GND wire D GND wire A...
  • Page 121 Assemble the lamp blower module on lower case 6-1 assemble the blower module, blower fixed by 8R0 screw. NOZZLE TOP Blower 7025 TOP Thermal breaker SHD THERMAL BREAKER FRAME BLOWER NOZZLE BTM Blower 7025 BTM 6-2 Assemble the lamp blower module on lower case, and plug the thermal breaker, please notice the wire dressing.
  • Page 122 Assemble ENG module on lower case a. Assemble mylar wire dressing on thermal H-sink then assemble ENG on lower case b. Assemble gasket on ENG (align chip BD & H) Mylar 6R0 screw*2 8R0 screw*3 Gasket Gasket...
  • Page 123 Assemble BKT main BD 8-1 assemble sponge and mylar on BKT sponge Myalr 8-2 assemble the BKT by 4 screw (8R0) , please notice grounding wire and mylar. GND wire B GND wire D GND wire C GND wire AC socket...
  • Page 124 Assemble Main BD 9-1 assemble the main BD 4R0 screw*2 Important: please check golden pin align the connector then assemble.
  • Page 125 9-2 assemble 4 fan 9225, please notice the air flow directions. 9-3 paste sponge on lamp fan...
  • Page 126 9-4 plug all connectors CW motor CW sensor ballast Lamp fan outlet Ballast blower Lamp Blower btm Lamp Blower top Double fan inlet power fan outlet 9-5 assemble main shielding clip 6R0 screw*6 Assemble the front, side, & rear case 10-1 assemble side case and plug the speaker connectors, and notice the wire dressing...
  • Page 127 10-2 assemble the front case and plug the IR connector 10-3 assemble zoom/ focus ring Screw*1...
  • Page 128 10-4 assemble the rear case 8R0 screw*3 Stand-off 10. Assemble lamp module. 8F.VG564.8R0...
  • Page 129 11. Assemble upper case 12-1 assemble lens shift cover on zoom/focus cover, and paste the keypad mylar. zoom/focus cover keypad mylar lens shift cover 12-2 assemble lens shift cover assembly on upper case, and insert door lock through cover and upper case cover...
  • Page 130 12-3 assemble rubber key and screw fix the cover 8R0 screw*2 rubber key 12-4 assemble keypad BD on upper case tape 6R0 screw*4 12-5 insert FFC on main BD and fixed with tape tape...
  • Page 131 12-6 assemble upper case on projector 6R0 screw*1 8R0 screw*6 12-7 assemble the cap lens shift 3R5 screw*1 cap lens shift 12. Assemble the lamp door 6K.1W819.011 8F.1A524.130...
  • Page 132 13. Paste the label of logo 3A.1W801.001 14. Assemble “RING FOCUS” and lock well. (Fig. 9-5)

  • Page 133: Block Diagram

    5.5 Block Diagram Audio R/L in X1 Audio Microphone in X1 Keypad Audio Processor Audio in X1 WT51F516 AD1761 (Stereo mini jack) Audio out x 1 IR reveicer Power Amp (Stereo mini jack) Speaker 10W TPA3111 I2C 1 Memory EEPROM Flash EEPROM VGA1...

  • Page 134: Trouble Shooting

    5.6 Trouble shooting Chapter 1 System Analysis Chapter 2 Optical & Optical Engine Trouble Shooting Guide Chapter 3 Power Supply Trouble Shooting Guide Chapter 4 LED Messages Definition Chapter 5 Error Count Messages Definition...
  • Page 135 Chapter 1 - System Analysis...
  • Page 136 Chapter 2 Optical & Optical Engine Trouble Shooting Guide No. Item Trouble Shooting Guide Brightness 1. Change lamp Uniformity 1. Change lamp 1. Check ADC calibration 2. Check user’s menu brightness & contrast are default FOFO Contrast 3. Clean DMD 4.
  • Page 137 (2) Overfill Vertical Adjustment Screw (1) Overfill Horizontal Adjustment Screw Fig. 2-1 II. Re-assemble LP module—include LP, LP Baffle, LP clip.
  • Page 138 Chapter 3 Power Supply Trouble Shooting Guide 1. Introduction This document is prepared to be a guide to repair trouble sets, some problems happen more frequently are taken as example in it. 2. Problems (a) no power No power Check power BD Is CN701 pin11 =3.3v? Change main BD Change power BD...
  • Page 139 (b)lamp can not turned on Lamp can not turned on has lamp wire connect correct? (Ballast bd between lamp) Wire connect certainty has power wire connect correct? Wire connect certainty (power bd between ballast bd) has enable wire connect correct? Wire connect certainty (main bd to ballast bd)

  • Page 140: Change Lamp

    Has TH breaker wire connect correct? Wire connect certainty Change color wheel Has color wheel operation normally? If change ballast bd, lamp can be Change lamp Turned on or not? Change ballast bd...
  • Page 141 Chapter 4 - LED Messages Definition Power Temp Lamp1 Lamp2 Status support Stand-by Powering up(Burn-in powering up) Normal operation Normal power-down cooling(Burn-in powering-down cooling) Download CW start fail Scaler shutdown fail(data abord) Lamp1 Life exhausted Burn-In Messages Burn-in ON Burn-in OFF Lamp Error Messages Lamp1 error in normal operation Lamp is not lit up...
  • Page 142 Chapter 5 - Error Count Messages Definition Error Count Definition Specification Repair Action(Check/Replace Parts) Lamp Lit Fail Power on lit fail twice power on lit fail twice 1. Check Lamp Start wire connection count count 2. Check Lamp 3. Check Ballast board 4.
  • Page 143 Abnormal System abnormal System abnormal 1. Check if user unplug power cord Power down power down power down before finish cooling 2. Check connection between PWR/B and M/B 3. Check door switch 4. Check power board 5. Check main board Fig.
  • Page 145 Appendix 1 – Screw List / Torque Model name : SX930 Description Torque No. Screw P/N Q’TY Where use Head Coatin Type Length (kgf-cm) inlet case & Speaker(2*) M2.5 1 8F.00430.6R0 MACH 3.5~4.5 outlet case & Speaker(2*) 3.5~4.5 Lamp module & lamp box(1*) 4.0~5.0 Lens CVR &...
  • Page 146 Model Name : SX930 (OM) Description Torque MODULE Type Where use Unit Q’ty Leng Surfac Type (kgf-cm) Shield Link VS. BKT Link Lamp 8F.8A752.3R0 MACH B-NI 1.2+/-0.5 CVR Lens VS HSG DMD 6E.J9305.001 MACH 6.5+/-0.5 H-Sink VS. HSG DMD LP Adjustment Clip LP VS.

  • Page 147: Appendix 2 - Code List: Ir / Rs232 / Ddc Data

    Appendix 2 - Code List: IR / RS232 / DDC Data Remote Control Code: IR Code (projector must support 0x02,0X4E,0X4F power on/off command) Function Description Code Suppor ID and Protocol Wireless 0x00 Frequency 38 KHz 0x02 Protocol NEC Format Power This button will on/off the projector.
  • Page 148 Digital Zoom 0x18 This button will show unsupported logo. Digital Zoom 0x19 This button will show unsupported logo. 0x1A Audio SX930 not support this Turns the PIP window on or off and 0x1B makes related adjustments. function 0x1C 0x1D 0x1E...
  • Page 149 0x43 DVI-A Displays the DVI-A source selection. DVI-I 0x44 Displays the DVI-I source selection. SX930 not support this RGB-PC2 0x45 Displays the PC 2 source selection. function Network 0x46 Displays the LAN source selection. Display USB Display 0x47 Displays the mini USB source selection.
  • Page 150 Setting This button will magnify the volume Volume + 0x82 gradually. This button will reduce the volume Volume - 0x83 gradually. Goes back to previous OSD menu, Back 0x85 exits and saves menu settings. Key Lock 0x87 0x88 Displays the setting page for the 0x8A Lens adjustment of the...
  • Page 151 2. RS-232 Command Code For all application Condition Character delay=>0 ms Stand by 0.5W and any baud rate don’t loss command. Test with Source in and no source Test with Crestron control Support volume bar display for volume command Support Lan over Rs232 (no <CR> limitation) Each input upper case and lower case character should be action) (The response string will be in upper case) (Version 13.5)
  • Page 152 Write Living Room <CR>*appmod=livingroom#<CR> Write Game <CR>*appmod=game#<CR> Write Cinema <CR>*appmod=cine#<CR> Write Standard/Vivid <CR>*appmod=std#<CR> Write User1 <CR>*appmod=user1#<CR> Write User2 <CR>*appmod=user2#<CR> Write User3 <CR>*appmod=user3#<CR> Write ISF Day <CR>*appmod=isfday#<CR> Write ISF Night <CR>*appmod=isfnight#<CR> Write <CR>*appmod=threed#<CR> Read Picture Mode <CR>*appmod=?#<CR> Write Contrast + <CR>*con=+#<CR> Write Contrast - <CR>*con=-#<CR>...
  • Page 153 Write Quick auto search <CR>*QAS=on#<CR> Write Quick auto search <CR>*QAS=off#<CR> Read Quick auto search status <CR>*QAS=?#<CR> Read Projector Position Status <CR>*pp=?#<CR> Write Direct Power On-on <CR>*directpower=on#<CR> Write Direct Power On-off <CR>*directpower=off#<CR> Read Direct Power On-Status <CR>*directpower=?#<CR> Write Signal Power On-on <CR>*autopower=on#<CR>...
  • Page 154 Write Freeze On <CR>*freeze=on#<CR> Write Freeze Off <CR>*freeze=off#<CR> Read Freeze Status <CR>*freeze=?#<CR> Write Menu On <CR>*menu=on#<CR> Write Menu Off <CR>*menu=off#<CR> Write <CR>*up#<CR> Write Down <CR>*down#<CR> Write Right <CR>*right#<CR> Write Left <CR>*left#<CR> Write Enter <CR>*enter#<CR> Write 3D Sync Off <CR>*3d=off#<CR> Write 3D Auto <CR>*3d=auto#<CR>...
  • Page 155 BENQ 10 03 84 05 11 13 14 02 10 03 84 05 11 13 14 02 SX930 12 20 21 22 01 23 09 07 12 20 21 22 01 23 09 07 07 83 01 00 00 7A 03 0C...

  • Page 156: Appendix 3 - Ceiling Mount Drawing

    Appendix 3 – Ceiling Mount Drawing...

  • Page 157: Appendix 4 - Optical Measurement

    Appendix 4 - Optical Measurement 1. Scope: This document describes critical optical related test definitions and Instructions for data or video projectors. The other general terminologies are specified in ANSI IT7.228-1997. 2. General Requirements 2.1. The unit under test should be allowed to stabilize without further adjustment for a minimum of 5 minutes, at nominal ambient room temperature of 25C, before making measurements.
  • Page 158 A.4 ANSI CONTRAST ANSI Contrast = Average lux value of the white rectangles/Average lux value of the black rectangles Contrast Ratio shall be determined from illuminance values obtained from a black-and-white ”chessboard” pattern consisting of 16 equal rectangles. The white rectangles shall be at 100% gray and the black rectangles at 0% gray.
  • Page 159 A.9 THROW RATIO Throw ratio = projection distance / the width of the projected image A.10 ZOOM RATIO Zoom ratio = maximum / minimum image diagonal size at a fixed projection distance A.11 FOCUS RANGE The minimum/maximum focus distance is the minimum/maximum projection distance (The distance between the outermost element of projection lens and screen), expressed in meter, at which the image is still at its acceptable focus level.(acceptable focus level is specified by FOCUS LIMIT SAMPLE approved by customer)
  • Page 160 A.14 COLOR UNIFORMITY Color Uniformity: △u’v’= [(u’1-u’0)^2+(v’1-v’0)^2]^1/2 (u’0,v’0): the average color of L1~L9 (u’1,v’1): the max deviation of L1~L13 A.15 PROJECTION OFFSET Projection Offset (Vertical) Mode A= x 100% Mode B= x 100% ℎ + ℎ Mode C= x 100%, where as h’...
  • Page 161 Pattern 1 (区 Pattern; Please contact BenQ for file with correct resolution) Pattern 2 (Please contact BenQ for file with correct resolution)
  • Page 162 Pattern 3 (Please contact BenQ for file with correct resolution) Pattern 4 (Please contact BenQ for file with correct resolution)
  • Page 163 Pattern 5 (Please contact BenQ for file with correct resolution) Pattern 6 (Please contact Qisda RD for file with correct resolution)
  • Page 164 Chart 1 Example of Pixel Testing Pattern (60” screen size) A.16 Defocus and Flare Test Procedure Procedure: Step 1: Get best focus image (best uniform) with Pattern1 Step 2: Check specified screen sizes and zoom positions Step 3: Use Chart1 to measure defocus and flare of R,G,B color at Pattern 2,3,4 Example of 1.5 pixel flare: Grid of 1.5 1 Pixel...
  • Page 165 A.18 Lateral Color Test Procedure Procedure: Step 1: Get best focus image (best uniform) with Pattern 1 Step 2: Check specified screen sizes and zoom positions Step 3: Use Chart1 to measure Lateral Color at Pattern 5 Center Zone define as picture “center zone” Example if 0.6 pixel lateral color: Center of G B (with defocus only, no count of flare)
  • Page 166 A.20 Ghost Contrast Ratio Test Procedure Step1. Measure the brightness from the center of pattern Step2. Measure the max brightness from the ghost image Center Pattern Contrast ratio  ghost Step3. A.21 Center Position Shift (W-T) Test Procedure Step1. Adjust zoom the WIDE and adjust the focus of center screen to the best and mark on the center.
  • Page 167 2-1. Projector Focus adjusted to "best uniform" within 3 min. after power on. (zoom/focus positions are fixed throughout the test) 2-2. Projector Focus Quality Test at initial power on (tests shall be done within 3 min. after power on) 2-3. The burning period to use the Full white pattern in Default mode. 2-4.

  • Page 168: Appendix 6 - Design Verification Test Procedure

    Appendix 6 - Design Verification Test Procedure B.1 Purpose This standard establishes the environmental specification for projector related products, which defines the level of product performance and reliability in the field. It is not necessary the intent of these specification to simulate a typical user environment, but rather to provide for a level of product robustness that when applied over a wide range of manufacturing variability and environmental usage conditions, which is recommended for product assurance testing reference.
  • Page 169 20 ~ 200 0.0185 Duration : 5 Minutes Axis : 3 axis ( Horizontal and Vertical axis ,Z axis) Duration: 5 minutes per orientation, totally 15 minutes. Un-package Shock Waveform: Half sine (Non-operating) Faces: 6 sides/per orientation, 3 shocks Duration: < 20 ms Velocity accelerate: 50 G Bench Drop 1.
  • Page 170 B.3 Failure Criteria The product is expected to perform to its full potential without loss of function, performance, critical parametric changes, and other undesirable anomalies, over the applied boundaries of this specification. The following product failure is not allowed within the boundaries defined in this specification: 1.

  • Page 171: Appendix 7 - Thermal And Noise Test Procedure

    Appendix 7 - Thermal and Noise Test Procedure C.1 Noise Testing Standard (1) Test Standard : ISO 7779:1999 “Acoustics-Measurement of Airborne Emitted by Information Technology and Telecommunications Equipment”. (2) Projector Position: On the center of standard desk. (3) The background noise level when EUT is not operating should < 19dB. (4) The sound level meter parameter by setting the following : Function Setting...
  • Page 172 The edge of outlet Shape of fan outlet Air Flow Find the maximum temperature and position Figure : measurement position. C.3 Temperature of System Level： Before measurement temperature, please use IR camera to make sure the position of hot spot. We defined maximum temperature and measurement position as following： Spec.
  • Page 173 Appendix D DMD Image Quality Scope ® This document specifies the image quality requirements applicable to the DLP .7XGA Type A and ® Series 450 Value Component Set. The Component Set provides the DLP . 7XGA Type A and Series 450 Value Projector with digital imaging functionality based on Digital Micromirror Device (DMD) technology.
  • Page 174 in order to generate an equivalent blue level on the test screen image. Gray 10 Screen The Gray 10 screen is used to test for major light blemishes. All areas of the screen are colored a Microsoft Paintbrush gray 10 (green, red, and blue set at 10). NOTE: If linear degamma is not used then the Microsoft Paintbrush values must be adjusted to match the degamma table being used in order to generate an equivalent gray level on the test screen image.
  • Page 175 projected image tests referenced in Table 1. Devices that meet this image quality specification but are deemed undesirable by the customer may not be returned to TI without prior approval by TI. 10. Screens < Gray 10 shall not be used as a basis for rejecting a DMD for image quality. Non Critical Zone Critical Zone center 25%...

Table of Contents
