EntraGuard
Titanium Telephone Entry Controller
Quick Start Guide
4.0
Wiring Instructions
Refer to Figure 2 on page 2 for all wiring connections.
4.1
Terminal Blocks

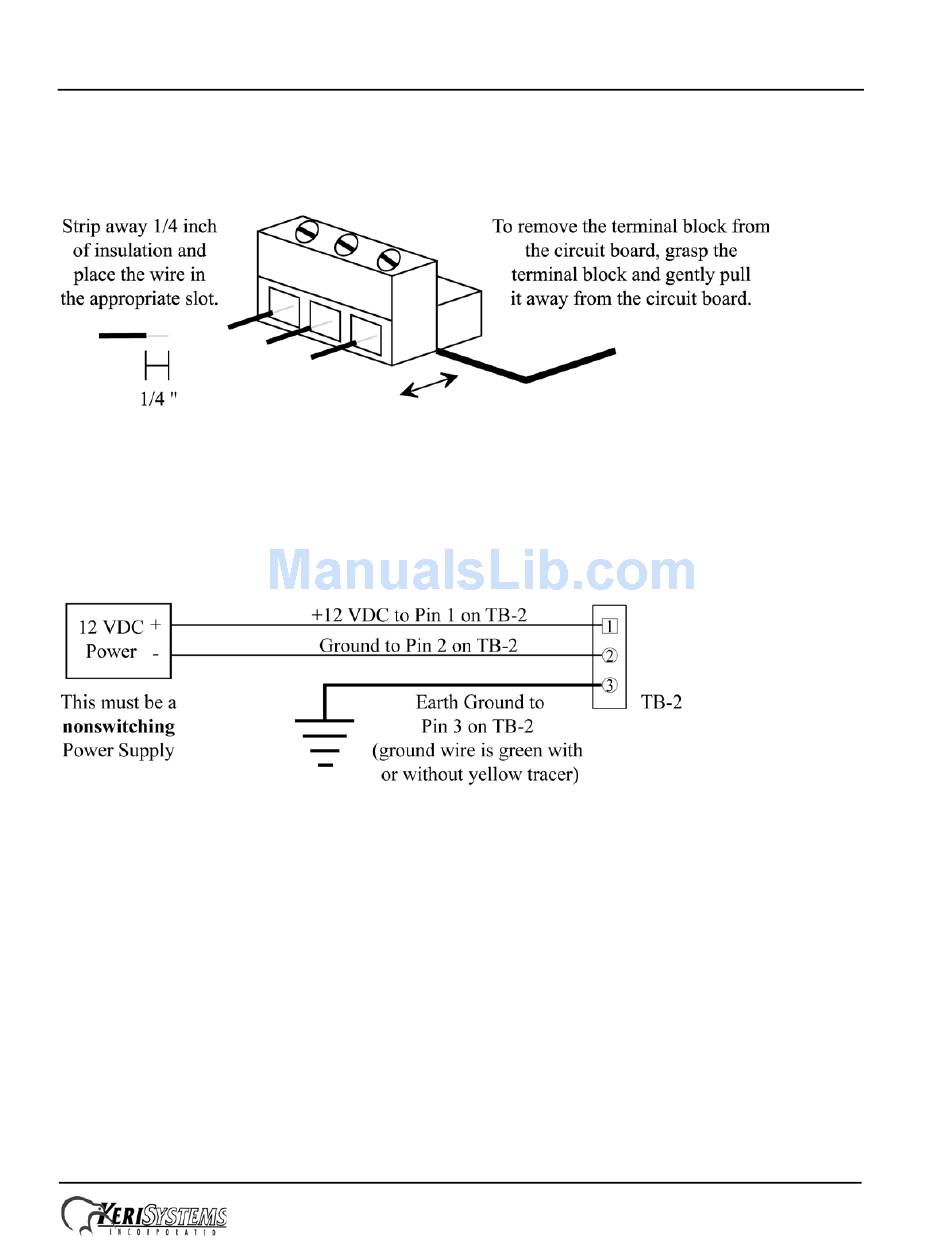

Figure 3: Connecting Wires and Removing Terminal Blocks
NOTE: Screws on terminal blocks must be tightened securely.
4.2
Connecting the Earth Ground and the 12 VDC Power
Figure 4: Earth Ground and 12 VDC Power Connections
Page 6 of 26
P/N: 01962-001 Rev. D
