EntraGuard
Titanium Telephone Entry Controller
Quick Start Guide
5.2.2.3
Modem Cable Connection
•
An adapter cable is provided, when needed, with a modem purchased from Keri Systems. Connect the adapter cable
between the modem and the KDP-336 cable as shown in side A of Figure 19.
•
To use the KDP-929M cable see side B of Figure 19.

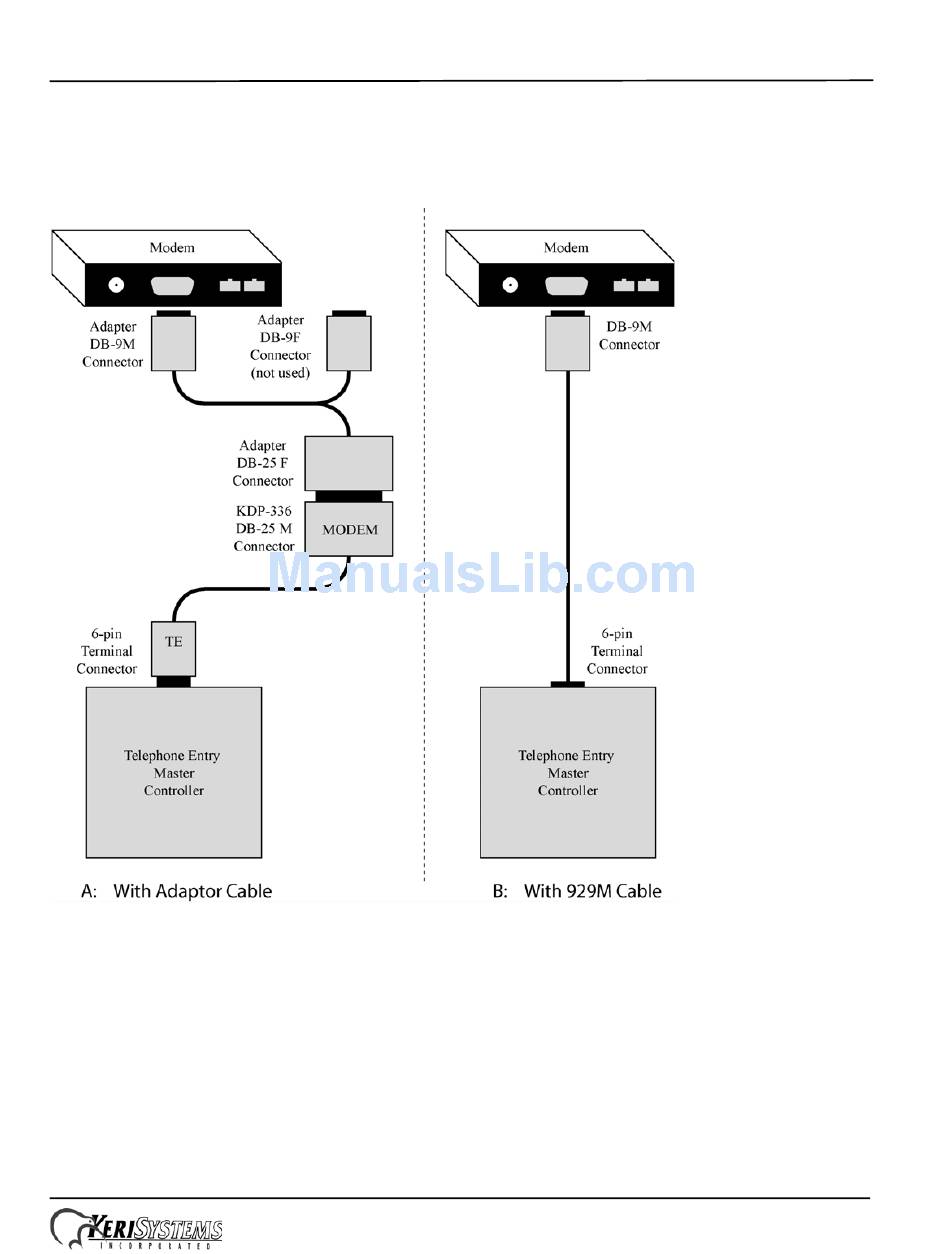

Figure 19: Modem Cable Connection
Page 17 of 26
P/N: 01962-001 Rev. D
