EntraGuard
Titanium Telephone Entry Controller
Quick Start Guide
This quick start guide provides, basic installation information, drawings, first time power-on instructions, and short
descriptions of key terms and concepts for installing the EntraGuard Titanium Telephone Entry controller. The
EntraGuard Titanium controller may be used alone or may be connected to a PXL-500/510 network. For instructions on
how to install a postal lock, see the EntraGuard Titanium Postal Lock Installation Application Note (P/N 01964-001).
NOTE: It is the responsibility of the installation organization to have only technically qualified personnel performing the
installation.
Section 01 - Specifications
Section 02 - Cable Requirements
Section 03 - When Installing Controllers
Section 04 - Wiring Instructions
Section 05 - Communication
Section 06 - Powering the Controller for the First Time
Section 07 - Setup Controller
Section 08 - General Information on Inputs
Section 09 - General Information on Safety versus Security with Door Locks
Section 10 - Contact Keri Systems

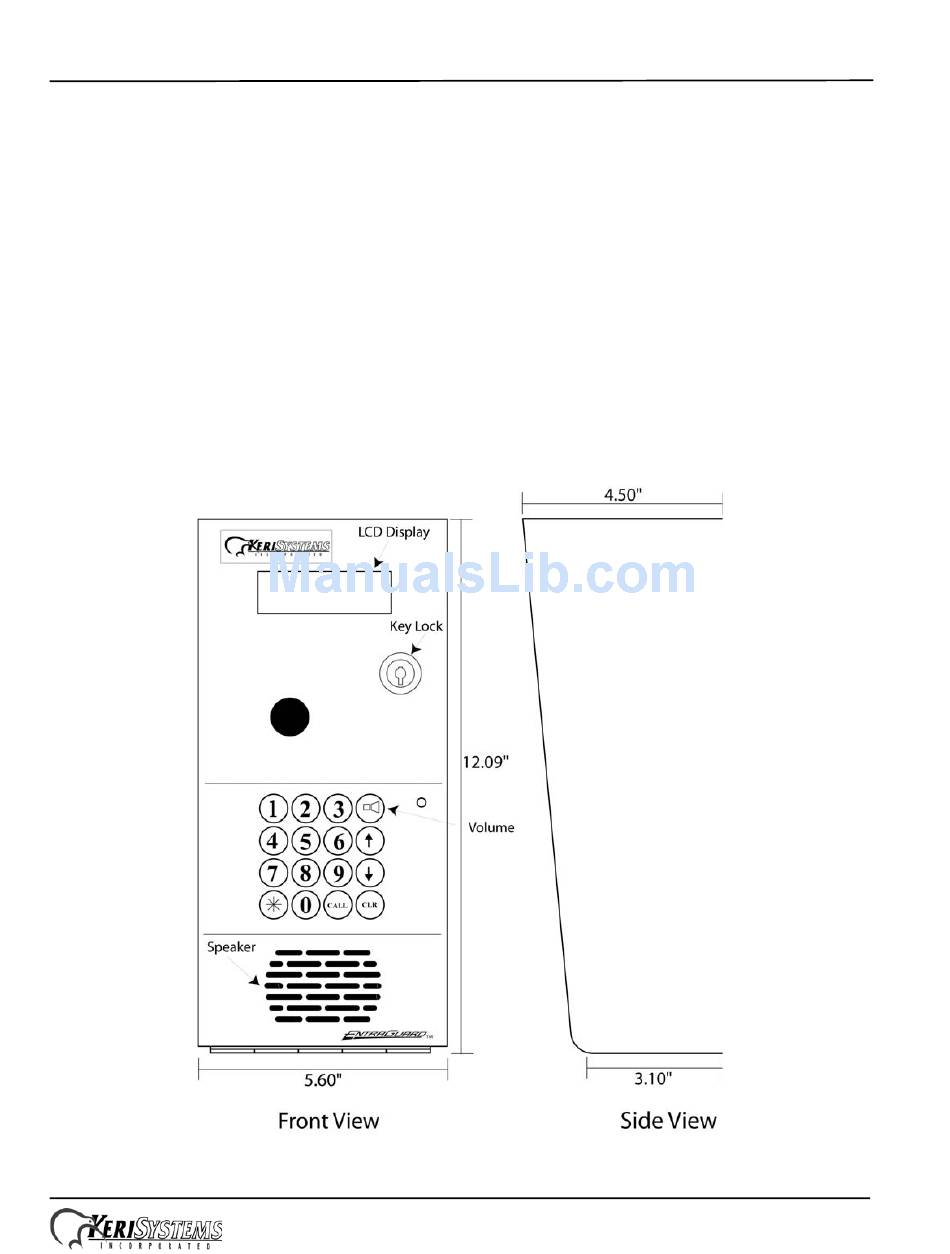

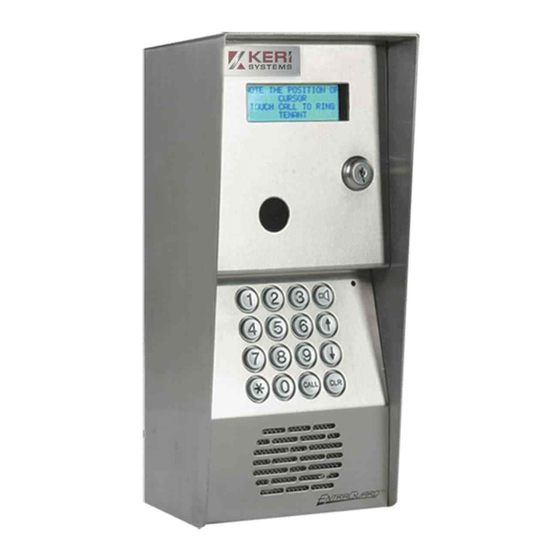

Figure 1: The EntraGuard Titanium Telephone Entry Controller - Front Panel
Page 1 of 26
P/N: 01962-001 Rev. D
