EntraGuard Titanium Telephone Entry Controller
Quick Start Guide
5.2.2.2 Modem to Controller
To make the connection between the master controller and the host computer you will use two cables: one between the
host computer and its modem (see Section 5.2.3 on page 18), and one between the master controller and its modem.
• If the modem has a female DB-25 connector, you must use a Keri Systems KDP-336 cable or create a cable as shown
in Figure 17.
• If the modem has a female DB-9 connector, you must create a cable as shown in Figure 18.
• If the modem was purchased from Keri Systems, it comes with an adapter that accommodates a female DB-9
connector (should the modem have a DB-9 instead of a DB-25 connector). Use this adapter cable in conjunction with
a KDP-336 cable to make the modem/controller connection. See Figure 19 on page 17.
The Keri Systems part number for this cable is KDP-336.

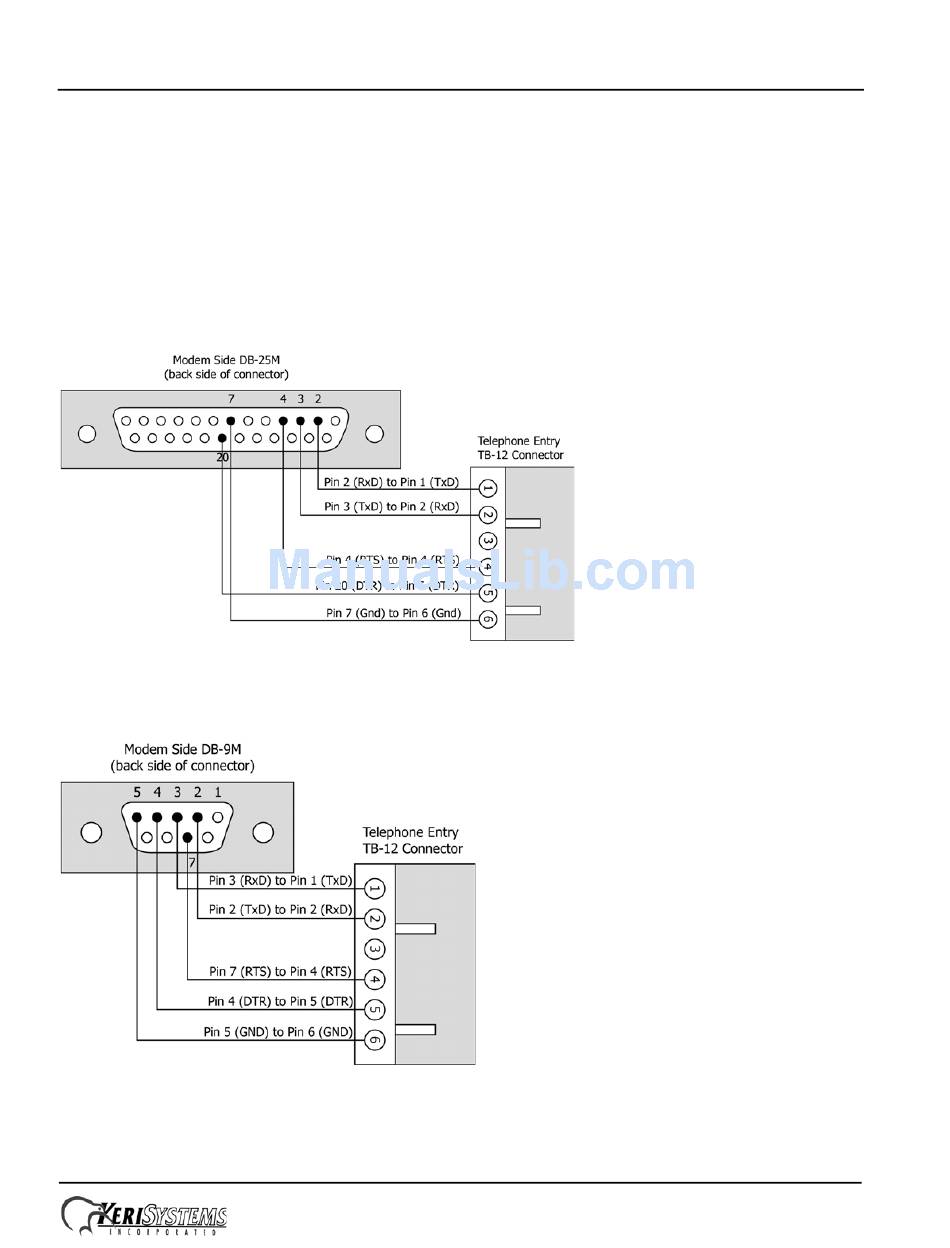

Figure 17: Modem/DB-25M to Telephone Entry/TB-12 Serial Port Connections
The Keri Systems part number for this cable is KDP-929M.
Figure 18: Modem/DB-9M to Telephone Entry/TB-12 Serial Port Connection
Page 16 of 26 P/N: 01962-001 Rev. D
