EntraGuard
Titanium Telephone Entry Controller
Installation Guide
This installation guide provides basic installation information, drawings, and controller setup instructions to use when
installing the EntraGuard Titanium Telephone Entry controller. The EntraGuard Titanium controller may be used alone or
may be connected to an access control network using PXL-500 or PXL-250 family controllers. For instructions on how to
install a postal lock, see the EntraGuard Titanium Postal Lock Installation Application Note (P/N 01964-001).
NOTE: It is the responsibility of the installation organization to have only technically qualified personnel performing the
installation.
Section 1 - Drawings
Section 2 - RS-232 Serial Port
Section 3 - Setup Controller
Section 4 - Contact Keri Systems
1.0
Drawings

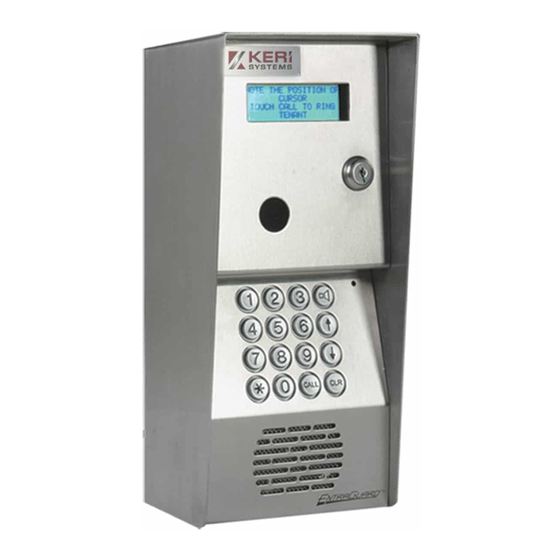

Figure 1: The EntraGuard Titanium Telephone Entry Enclosure
Page 1 of 6
P/N: 01551-001 Rev. B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KeriSystems EntraGuard
Summary of Contents for KeriSystems EntraGuard
-
Page 1: Installation Guide
This installation guide provides basic installation information, drawings, and controller setup instructions to use when installing the EntraGuard Titanium Telephone Entry controller. The EntraGuard Titanium controller may be used alone or may be connected to an access control network using PXL-500 or PXL-250 family controllers. For instructions on how to install a postal lock, see the EntraGuard Titanium Postal Lock Installation Application Note (P/N 01964-001). - Page 2 ® EntraGuard Titanium Telephone Entry Controller Installation Guide Figure 2: The Titanium Telephone Entry Controller NOTE: You must power down the unit before attempting to make or remove any connections. Failure to do so will damage the controller. NOTE: You must set Jumper 11 if you intend to use the Titanium controller’s internal modem.
-
Page 3: Rs-232 Serial Port
EntraGuard Titanium Telephone Entry Controller Installation Guide RS-232 Serial Port An RS-232 serial connection between the EntraGuard unit and the host computer can be done one of two ways: • by a direct serial connection (50 feet maximum) • through an external modem Direct Serial Connection The Keri Systems part number for this cable is KDP-552. -
Page 4: Setup Controller
The address range is from 1 to 128. The Master Controller must be set to address 1. Other slave EntraGuard/PXL controllers may be assigned any number from 2 to 128. If the network is made up of PXL-250s, the EntraGuard Titanium must be set as the Master. - Page 5 Once the memory has been cleared, the unit is ready to be configured. The LCD will display a warning that the unit has not been initialized. This display will rotate with the EntraGuard Default display until a Total Update from Doors has been performed on the unit.
-
Page 6: Diagnostics And Troubleshooting
EntraGuard Titanium Telephone Entry Controller Installation Guide Diagnostics and Troubleshooting For information regarding the diagnostics screens and troubleshooting the EntraGuard Titanium Controller, see the EntraGuard Troubleshooting and Diagnostics Guide (P/N 01912-001). Contact Keri Systems Keri USA Keri UK, Ireland, Europe...
