The UCR300 is a portable, high performance, dual-conversion,
frequency synthesized, UHF receiver. The RF performance is
extremely stable over a very wide temperature range, making
the UCR300 perfectly suited to the rough environmental condi­
tions found in the field.
includes a dual-band compandor for very low distortion and a
superior signal to noise ratio. The squelch system is operated
by a separate pilot tone and mutes the audio output directly at
the output connector. The audio output is calibrated for exact
level matching, with a ten LED bar graph meter.
DIVERSITY RECEPTION
The antenna phase switching diversity technique was chosen in
order to keep the receiver compact enough for camera mounted
or shoulder bag applications. This diversity reception tech­
nique effectively minimizes dropouts in short range situations
where multi-path reflections can cause serious problems. The
optimum diversity reception is realized with the diversity an­
tenna placed away from the receiver, however, dropouts are
significantly reduced with two antennas mounted directly on
the receiver.
RF SECTION
The problem posed to the design staff was to retain the RF
reliability of the Lectrosonics' fixed frequency designs but add
the flexibility of a frequency agile design. The universal (and
poor) way to build frequency agile systems is to design a wide
open front end that will pass any frequency within the tuning
range of the system. This leads to very poor RF performance
with lots of interference, driving the user to switch frequencies
in an attempt to sidestep the interference.
quency agile receivers a self fulfilling system; you have to use
the frequency agility to get away from the problems caused by
the frequency agile design compromises.
The problem of frequency agility is further compounded when
you realize that frequency changes "on the fly" cannot be made
on any type of wireless system. For example, if there is sud­
denly an interference problem with a system in use, on stage for
instance, a frequency change cannot be made without inter­
rupting the program. Basically, the show must go on.
multi-channel applications, changing the frequency of one sys­
RF MODULE
AMP
FILTER
ANTENNA
SWITCHING
uP
FREQ
SWITCHES

GENERAL TECHNICAL DESCRIPTION

The proprietary audio processing
This makes fre­
AMP
FILTER FILTER
uP
1ST
SYNTHESIZER VCO
LOCAL
OSCILLATOR
FILTER
2
uP E PROM
Rio Rancho, NM – USA
tem will usually produce all kinds of new intermodulation
problems with the other systems operating in the same location.
Frequency agility is not the universal panacea for interference
problems. It is only another tool and a limited tool at that. The
first line of defense must be the system's basic immunity to
interference. That required a new look at frequency agile re­
ceiver design.
FREQUENCY TRACKING FRONT-END
Our solution to the wide open front end problem was to design
a selective front end that can be tuned to the frequency in use.
Since we wanted this front end to be equivalent to our fixed
frequency front ends, this was a daunting task. Lectrosonics has
always used front ends with more sections and much more
selectivity than any other wireless manufacturer.
design consisted of a total of 6 transmission line resonators with
variable capacitance applied to each resonator by the hexadeci­
mal switches.
This sophistication produced a front end that was as selective as
fixed frequency designs. The next step to improve the front end
was to use good old fashioned "brute force."
HIGH CURRENT LOW NOISE AMPLIFIERS
The gain stages in the front end use some rather special transis­
tors in a feedback regulated high current circuit that combine
three parameters that are generally at odds with one another.
These are: low noise, low gain and relatively high power. It is
easy to understand the advantages of low noise and high power
capability but why is low gain desirable?
a receiver, low gain allows the front end to handle stronger RF
signals without output overload, which is "increased head­
room," so to speak. The result of a design that takes all three of
these parameters into consideration at once, is a low noise RF
amplifier with a sensitivity rating equal or better than the best
conventional design with a hundred times less susceptibility to
intermodulation interference.
Combining the high power gain stages with the tracking front
end produces a receiver that is unusually immune to single and
multiple interfering signals close to the operating frequency
In
and in addition strongly rejects signals that are much farther
away.
RF LEVEL
455KHZ
SAW
LEDs
BP
FILTER
FILTER
2ND MIXER
70 MHz
COUNTING
&
IF AMP
DETECTOR
IF AMP
50KHz
LP FILTER
HI-LEVEL
DIODE MIXER
XTAL 23 KHZ
CONTROLLED
LP
2ND
FILTER
OSCILLATOR
UHF Wireless Diversity Receiver
The answer is that in
UCR300

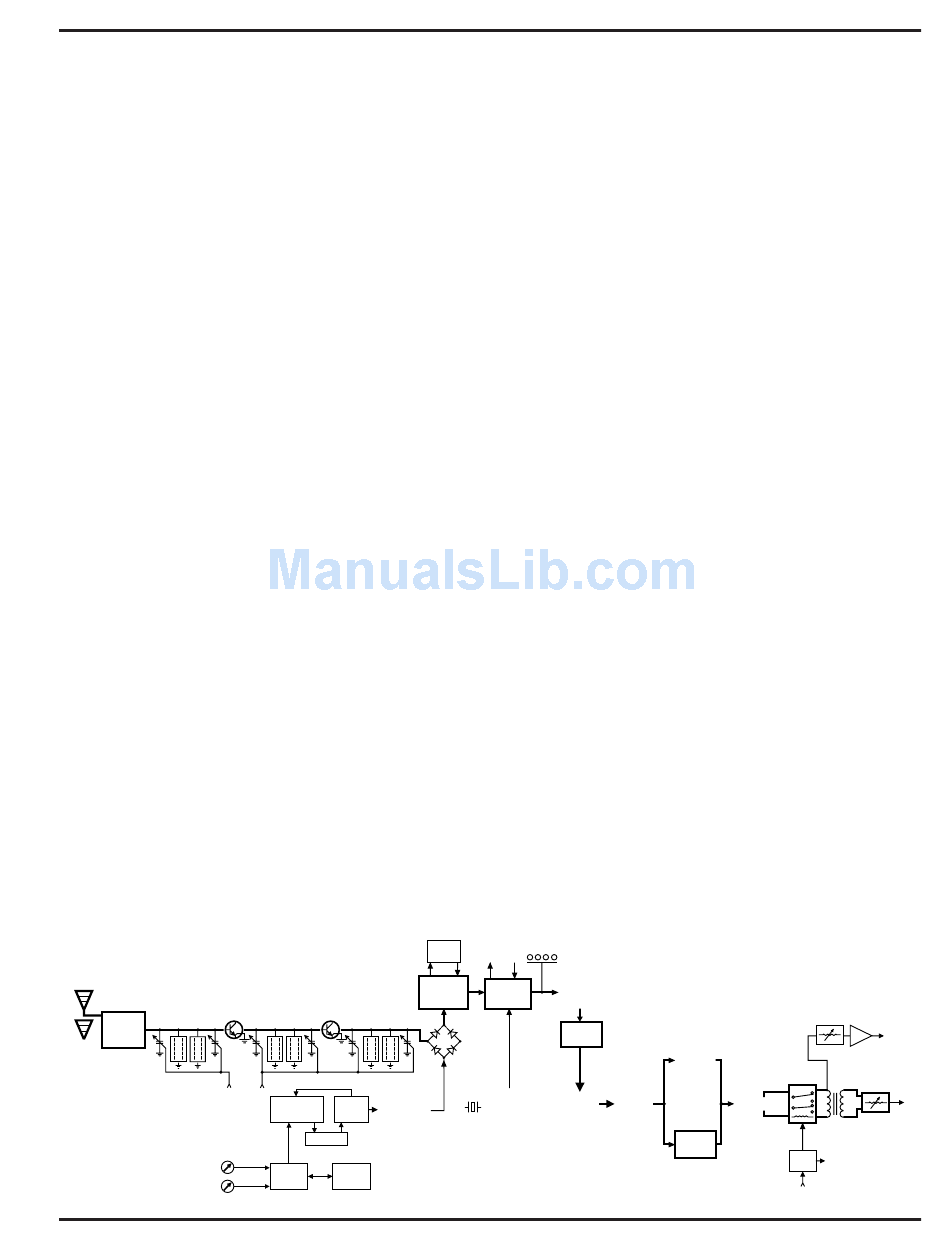

BLOCK DIAGRAM
