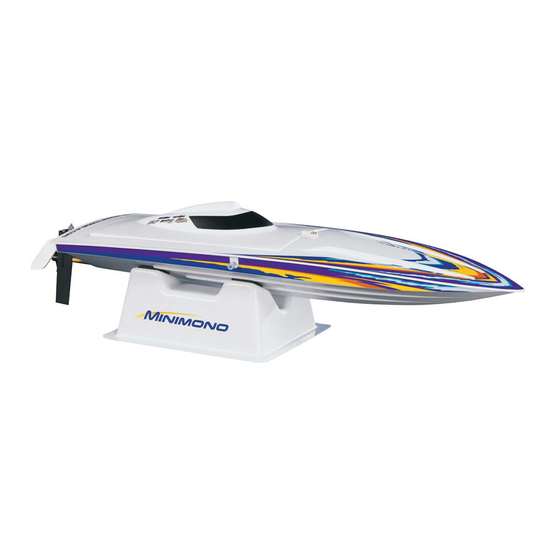

AquaCraft mini mono User Manual
  1. Manuals
  2. Brands
  3. AquaCraft Manuals
  4. Toy
  5. mini mono
  6. User manual

AquaCraft mini mono User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

• Never attempt to swim after a stalled RC boat.
• Never operate your RC boat while standing in the water.
• Never operate your RC boat in the presence of swimmers.
• Always use a Personal Flotation Device (PFD) when boarding and operating your retrieval craft, i.e. Jon boat or duck boat.
NOTE: Because of the sharp running hardware included with this RC boat, we do not recommend a rubber blow up raft.
• RC boat running hardware is very sharp. Be very careful when working on and around the metal parts.
• While the motor is running pay close attention to the propeller. Do not come in contact with the propeller at any time the engine is
running or serious injury will result.
• AquaCraft products are to be used by ages 14 and over.
WARNING:
aquacraftmodels.com
®

Advertisement

Table of Contents
loading

Related Manuals for AquaCraft mini mono

Summary of Contents for AquaCraft mini mono

  • Page 1 • While the motor is running pay close attention to the propeller. Do not come in contact with the propeller at any time the engine is running or serious injury will result. • AquaCraft products are to be used by ages 14 and over. aquacraftmodels.com...

  • Page 2: Optional Parts

    ➧ Extra Rudder O-Ring WARRANTY SERVICE PARTS NEEDED TO COMPLETE YOUR MODEL AquaCraft will warrant your model for 90 days after the purchase from defects in materials or workmanship of original manufacture. ❏ GPMP0830 3S LiPo Battery 1000 mAH 30C AquaCraft, at their option, will repair or replace at no charge, ❏...

  • Page 3: Safety Precautions

    Run times: 4 to 6 minutes enter your retrieval craft. Speeds: Up to 25mph ➧ AquaCraft products are to be used by ages 14 and over. BOAT FEATURES: ➧ Do not touch the propeller anytime the motor is running. Pay equally ➧...

  • Page 4: Initial Setup

    UNDERSTANDING YOUR TRANSMITTER 1. Steering Wheel 2. LED Power Indicator 3. Power ON/OFF Button 4. Throttle Trigger 5. Steering Rate Adjustment (Increases or decreases the turning radius of the boat.) 6. Throttle Reversing Switch (Position at “R” for your Minimono.) 7.

  • Page 5: Arming The System

    ARMING THE SYSTEM Install the battery in the floor of the boat. Plug the battery into the motor controller. You will hear the mo- tor chime letting you know the boat is powered up. Note: The boat becomes LIVE when the battery is plugged in. Squeeze the throttle trigger fully and you will hear 2 beeps.

  • Page 6: Maintenance

    MAINTENANCE It is important to remove and relubricate the drive shaft after a day of running. Make sure the battery pack is un- plugged. To lubricate the cable you will need a1.5mm hex wrench, GrimRacer Speed Grease and some paper towels. Using a 1.5mm hex wrench, loosen the set screws holding the drive cable to the motor coupler.
  • Page 7 Leave about 1/16" [2mm] gap between the front of the drive dog and the back of the brass tube. Tighten the set screws to hold the drive shaft in place. Do not over tighten the set screws. It is also a good idea to tighten one screw lightly and then the other.

  • Page 8: Performance Tuning

    PERFORMANCE TUNING Keep in mind, as you tune your Minimono for top speed and han- dling, that this boat IS SMALL! Because of its size it only needs very small adjustments to change the way the boat performs. STEERING DEFLECTION: Your Minimono has VERY ag- gressive steering.

  • Page 9: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts for the AquaCraft Minimono use the order numbers in the replacement parts list that follows. Replacement parts can be purchased from your local hobby shop or by mail order. If you need assistance locating a dealer to purchase parts, vist hobbico.com and click on “Where to buy”.
  • Page 10 RULES FOR RACING YOUR MINIMONO To help you get involved in racing your Minimono, we put together a simple set of rules and race course guidelines. RULE #1: SAFETY! 1. Never, ever swim for a stalled boat. The Minimono has foam flotation and will drift to shore. 2.
  • Page 11 DRIVING AND COURSE INFRACTIONS: • Cutting or striking a buoy at any time on the race course is a 50 point penalty per buoy. Cutting more than 3 buoys on the course is a one lap penalty. Course cutting at the end of the heat is not permitted. After the race is over you may ask permission from the race CD (contest director) to cut the course.
  • Page 12 © 2015 AquaCraft Models, a Hobbico ® company. AQUB1806...
