Installation
Instructions
Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: ge.com
BEFORE YOU BEGIN
IMPORTANT
– Save these instructions for
•
local inspector's use. Observe all governing codes
and ordinances.
Note to Installer
– Be sure to leave these
•
instructions with the Consumer.
Note to Consumer
– Keep these instructions
•
with your Owner's Manual for future reference.
Skill Level
– Installation of this kit requires basic
•
mechanical skills. Proper installation is the
responsibility of the installer. Product failure due
to improper installation is not covered under the
GE Appliance Warranty.
Completion Time – 20 to 30 minutes.
•
If you received a damaged kit, you should
immediately contact your dealer or builder.
Read carefully. Keep these instructions.
CAUTION:
Door panels may have
sharp edges.
FOR YOUR SAFETY:
all CAUTIONS and WARNINGS shown throughout
these instructions.
PARTS SUPPLIED
Remove the hardware accessory bag and other
parts from inside the packaging. Check contents
against illustrations to ensure that all parts are
included.
Foam Pads (2)
Screws (6)
Read and observe
Doors With Handles (2)
Double Drawer
Clad Door Kit
ZIDI240PII, ZIDI240WII
TOOLS YOU WILL NEED
Phillips-Head Screwdriver

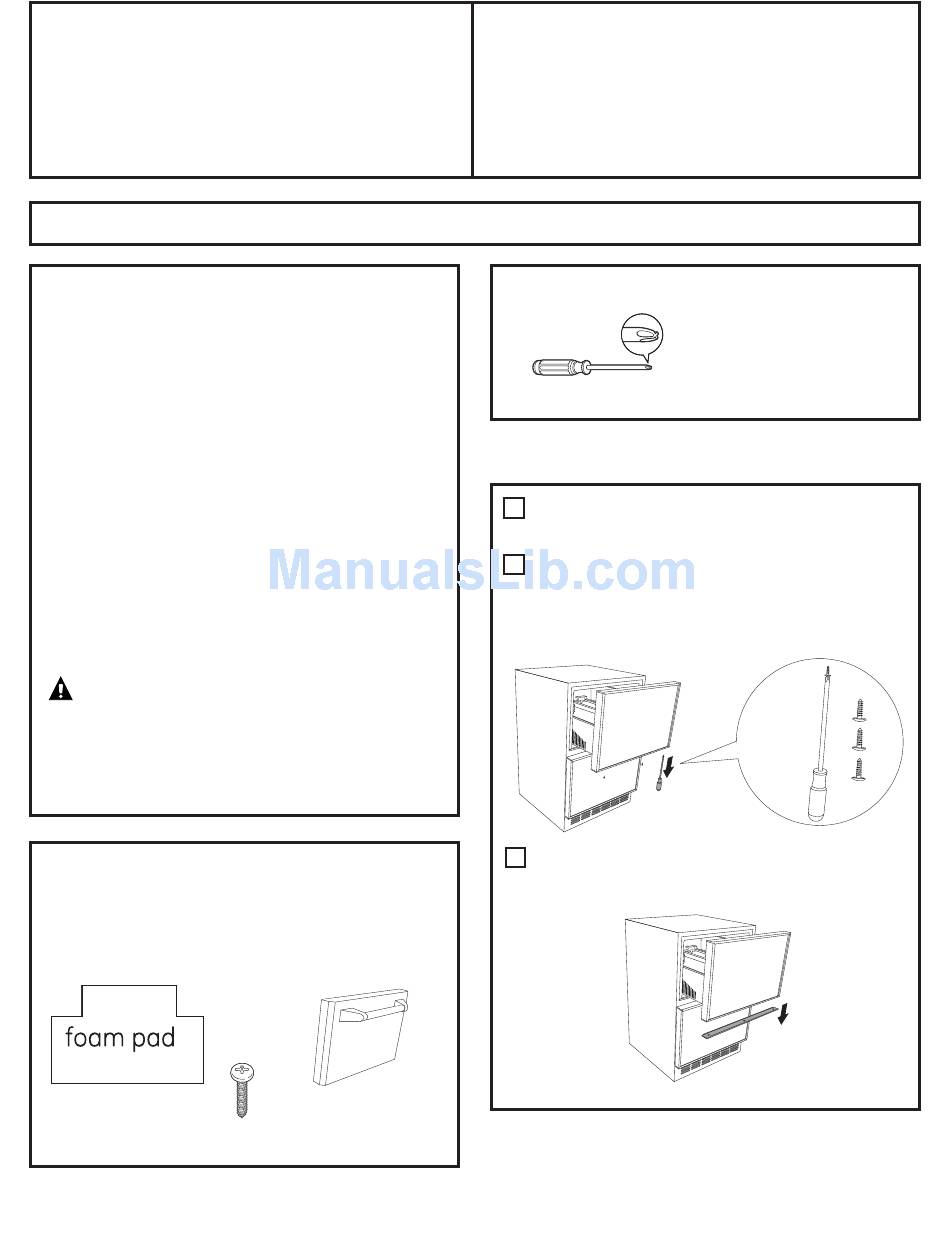

INSTALLING YOUR KIT
REMOVE BOTTOM TRIM COVER
1
ON TOP DRAWER
Use a Phillips-head screwdriver to unscrew the
A
three screws on the bottom trim cover.
NOTE: Support weight of trim panel as trim
cover is removed (if applicable).
Remove trim panel by sliding downward (if
B
applicable).
1
197D8125P001 31-46533 12-08 JR
Advertisement
Table of Contents
Related Manuals for GE ZIDI240PII, ZIDI240WII
Summary of Contents for GE ZIDI240PII, ZIDI240WII
-
Page 1: Before You Begin
Double Drawer Installation Clad Door Kit Instructions ZIDI240PII, ZIDI240WII Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: ge.com TOOLS YOU WILL NEED BEFORE YOU BEGIN IMPORTANT – Save these instructions for • local inspector’s use. Observe all governing codes and ordinances. -
Page 2: Installation Instructions
Installation Instructions MOUNT FOAM PAD TO UPPER DRAWER INSTALL DOOR PANEL ON TOP DRAWER (cont.) Slowly peel off the adhesive backing from the foam pad. Using three of the provided screws, attach the bottom of the door panel to the bottom of the door. Center the foam pad on the front face of the drawer with the adhesive side facing the drawer. - Page 3 Installation Instructions REMOVE BOTTOM TRIM COVER INSTALL DOOR PANEL ON LOWER DOOR ON LOWER DOOR Peel clear protective lining from door panel. Flip the door upside down. Lay the back of the door on the floor. Use a Phillips-head screwdriver to unscrew the Hook the lip of the door panel over the edge of three screws on the bottom trim cover.
- Page 4 Installation Instructions REMOUNT LOWER DRAWER DOOR REMOUNT LOWER DRAWER DOOR (cont.) Position the door so that the flange is positioned Rotate the top of the door forward until the above the bottom of the drawer and the top two flange drops below the bottom of the drawer. loosened screws are lined up with the slotted screw holes.
-
Page 5: Instructions D'installation
DE LA GARNITURE DU TIROIR l’installation correcte de l’appareil. La panne de l’appareil due à une mauvaise installation n’est SUPÉRIEUR pas couverte par la garantie GE Électroménagers. Utilisez un tournevis à tête cruciforme Phillips Délai d’exécution – 20 à 30 minutes. •... - Page 6 Instructions d’installation INSTALLEZ LA PLAQUE EN MOUSSE INSTALLEZ LE PANNEAU DE PORTE SUR SUR LE TIROIR SUPÉRIEUR LE TIROIR SUPÉRIEUR (suite) Décollez doucement la pellicule adhésive au Utilisez trois des vis fournies pour fixer le bas du dos de la plaque en mousse. panneau de porte au bas de la porte.
- Page 7 Instructions d’installation RETIREZ LA PROTECTION INFÉRIEURE INSTALLEZ LE PANNEAU DE PORTE SUR DE LA GARNITURE DU TIROIR LA PORTE INFÉRIEURE INFÉRIEUR Décollez le film protecteur transparent du panneau de porte. Retournez la porte. Posez le dos de la porte sur le sol. Utilisez un tournevis à...
- Page 8 Instructions d’installation RÉINSTALLEZ LA PORTE DU TIROIR RÉINSTALLEZ LA PORTE DU TIROIR INFÉRIEUR INFÉRIEUR (suite) Positionnez la porte pour que la collerette soit Faites tourner le haut de la porte vers l’avant positionnée au-dessus du bas du tiroir et que jusqu’à...
-
Page 9: Instrucciones De Instalación
Instrucciones Kit para puerta revestida de instalación con cajonera doble ZIDI240PII, ZIDI240WII ¿Preguntas? Llame al 800.GE.CARES (800.432.2737) o bien visite nuestra página Web: ge.com LAS HERRAMIENTAS QUE NECESITARÁ ANTES DE EMPEZAR IMPORTANTE – Conserve estas • instrucciones para uso del inspector local. Cumpla con todos los códigos y ordenanzas gubernamentales. - Page 10 Installation Instructions MONTE LA ALMOHADILLA DE GOMA INSTALACIÓN DEL PANEL DE LA PUERTA ESPUMA SOBRE EL CAJÓN SUPERIOR EN EL CAJÓN SUPERIOR (cont.) De forma lenta retire el adhesivo trasero de la Usando tres de los tornillos provistos, añada la almohadilla de goma espuma.
- Page 11 Installation Instructions RETIRE LA TAPA INFERIOR DE LOS INSTALE EL PANEL DE LA PUERTA EN COMPONENTES DE LA PUERTA LA PUERTA INFERIOR INFERIOR Retire el forro protector del panel de la puerta. Dé vuelta la puerta. Apoye al parte trasera de la puerta en el piso. Use un destornillador Phillips para retirar los tres Enganche el borde del panel de la puerta sobre tornillos de al tapa inferior de los componentes.
- Page 12 Installation Instructions VUELVA A MONTAR LA PUERTA DEL VUELVA A MONTAR LA PUERTA DEL CAJÓN INFERIOR CAJÓN INFERIOR (cont.) Posicione la puerta de modo que la pestaña esté Gire la parte superior de la puerta hacia sobre la parte inferior del cajón y que los dos adelante hasta que la pestaña caiga debajo tornillos flojos estén alineados hacia arriba con de la parte inferior del cajón.
