TECHNICAL DATA

&
SERVICE MANUAL

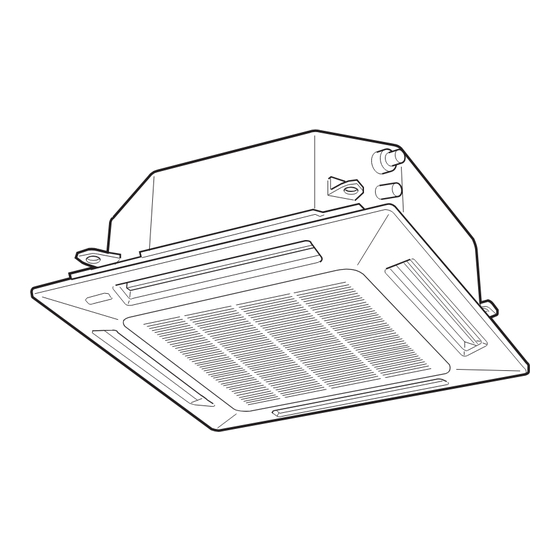

Indoor Unit
Shows S-26PU1U6
Model No.
Outdoor Units
Type
Outdoor Units
U
Single
Indoor Units
Type
Indoor Units Type
U1
4-Way Cassette
K1
Wall Mounted
T1
Ceiling
F1
Low Silhouette Duct
85464849303001
26
36
U-26PE1U6
U-36PE1U6
U-26PS1U6
U-36PS1U6
26
36
S-26PU1U6
S-36PU1U6
S-26PK1U6
S-26PT1U6
S-36PT1U6
S-26PF1U6
S-36PF1U6
Outdoor Unit
Shows U-26PE1U6
42
U-42PE1U6
Cooling/Heating
U-42PS1U6
Cooling
42
S-42PU1U6
with Wired Remote Controller: CZ-RTC2
with Wireless Remote Controller: CZ-RWSK1U
S-42PT1U6
with Wired Remote Controller: CZ-RTC2
with Wired Remote Controller: CZ-RTC2
REFERENCE NO
Remarks
Remarks
.
SM830203-01
