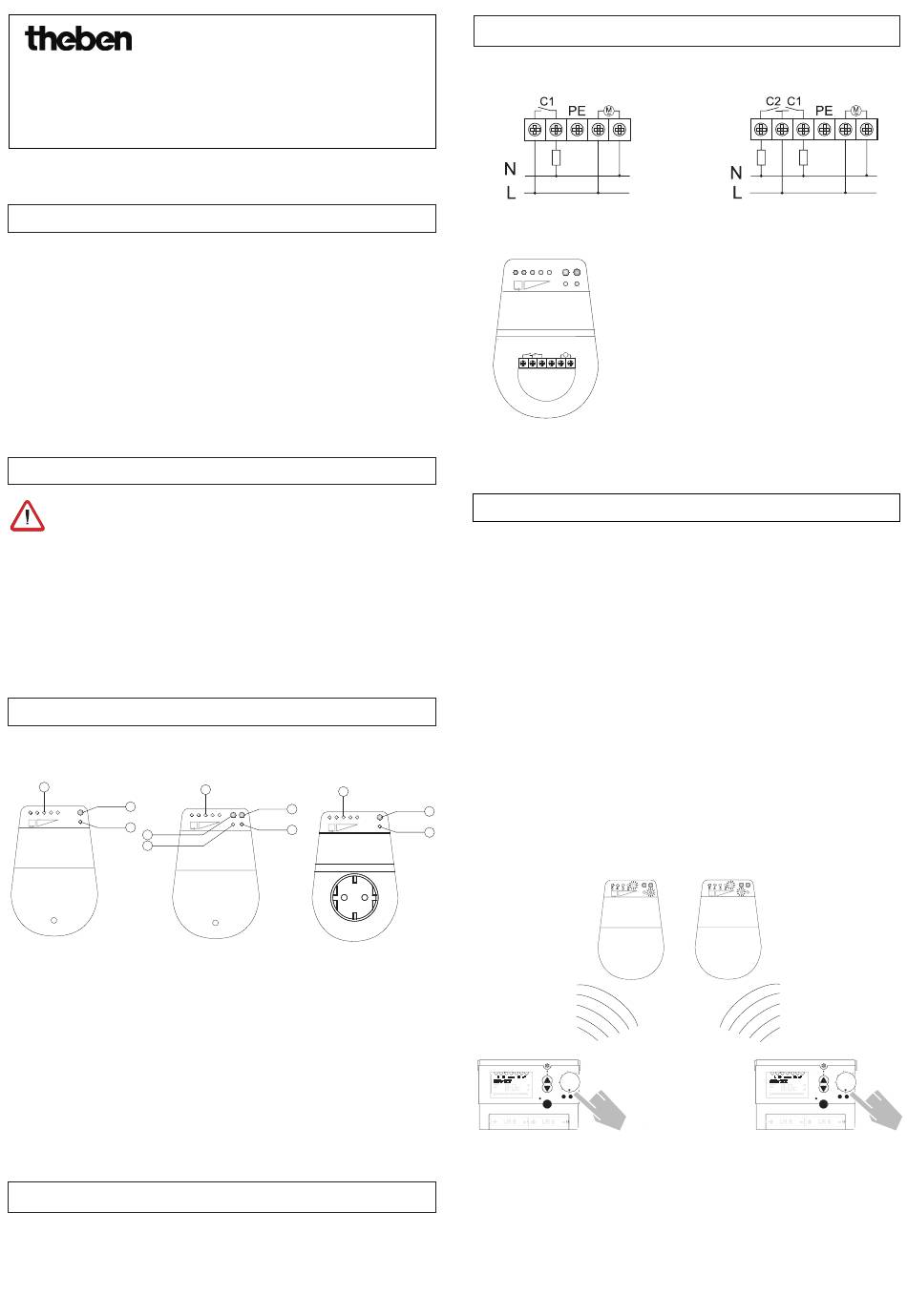

Theben RAMSES 813 top HF Manual

RAMSES 813 top HF (clock thermostat) +
REC 11/REC 12/REC 21
(Flush-mounted and plug-in receiver)
1.0 Specified Use
The product combination of RAMSES 813 top HF and the control unit REC
11 or REC 12 is designed for wire free individual room temperature control in
housing space. The controller RAMSES 813 top HF is used in dry residential
space for the collection and control of temperature.
The REC receiver is installed close to the heating facilities. The various heating
circuits (rooms) are controlled by, for example, activators.
To use the RAMSES 813 top HF clock thermostat, see the operating manual,
which is also enclosed.
2.0 Safety
The connection and installation of electrical products may be
effected only by a qualified electrician. If clock thermostats are
used in a system with other products, care must be taken to en-
sure that the whole system does not cause radio interference.
National regulations and prevailing safety instructions are to be
observed. Interference with and changes to the product will result
in the loss of the guarantee.
3.0 Description: receiver, type REC 11/ REC 12/ REC 21
1 channel
E
A
5 4 3 2 1
B
D
C
illus. REC 11
Receiver, type REC 11 / REC 12 / REC 21
A Circuit selector C1 ON/OFF
B Status indicator, channel C1
C Status indicator, channel C2
D Circuit selector C2 ON/OFF
E Field-strength indicator
4.0 Basic data, type REC 11/ REC 12/ REC 21
• Receivers, REC 11 as single-channel version and REC 12 as two-channel
version, both suitable for wall mounting.
• The REC 21 D, REC 21 F receiver plugs into an earthed socket.
• The range is approx. 25 - 30 m.
2 channel 1 channel
E
E
A
5 4 3 2 1
5 4 3 2 1
B
illus. REC 12
illus. REC 21 D (21 F)
(2 channel version REC 12 only)
(2 channel version REC 12 only)
310 509
5.0 Electrical connection: receiver type REC 11/ REC 12
5 4 3 2 1
C2 C1
PE
6.0 Coding control unit REC 11/ REC 12/ REC 21
Several products can be used in a residential unit without them having a
negative effect on one another.
Coding of channel C1:
-> Press the button C1 of REC 11 (REC 12) approx. 5 secs. The LED of C1
flashes 5 secs,
-> during which the 'Coding' of RAMSES 813 top HF must be run
(Menu -> Service -> Coding). Confirm with OK.
If coding successful:
LED of C1 and the level indicator light up briefly.
Test of coding of channel 1:
-> If you run the 'Coding' again, the LED of C1 as well as the level display
lights up.
A
The procedure for coding channel 2 of an REC 12 receiver is the same.
B
illus. REC 12
2 channel
1 2 3 4 5 6 7 PARTY · ECO
+
–
0 3 6 9 12 15 18 21 24h RES
i
RAMSES 813 top HF
controller 1
REC 11 and REC 12
Note the following:
-> Recheck the orientation of the device!
Under exceptional circumstances, the receiver
could pick up spurious signals from the vicini-
ty. One or more LEDs might light up, depen-
ding on the strength of these signals.
M
~
Remedy:
-> Align the device in such a way that as
few LEDs as possible light up.
2 channel
illus. 2
illus. 1
MENU
ESC OK
1 2 3 4 5 6 7 PARTY · ECO
+
–
MENU
0 3 6 9 12 15 18 21 24h RES ESC OK
i
RAMSES 813 top HF
controller 2
