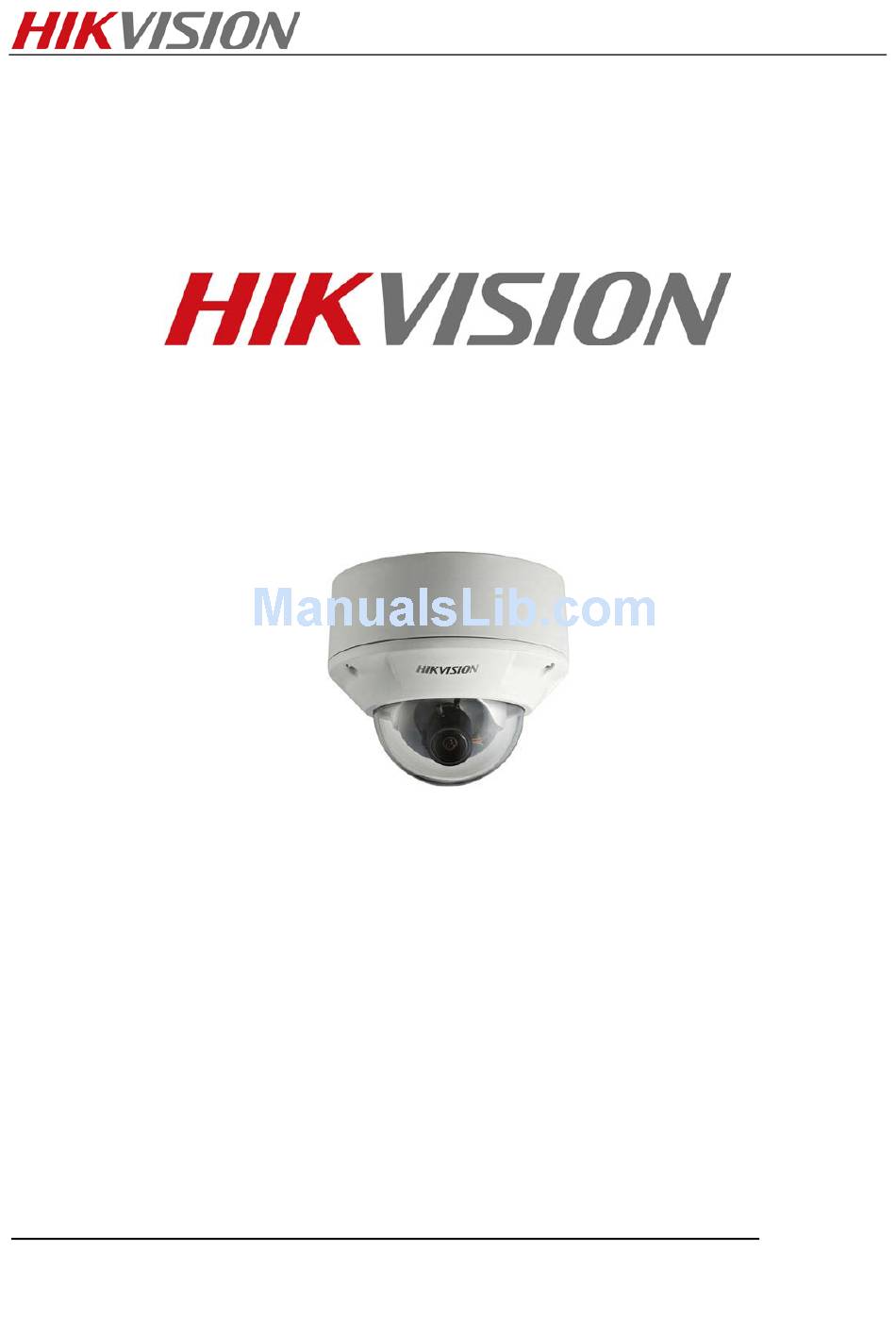

Hikvision Technical Manual
DS-2CD762MF-FB(H) Network Camera
Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2CD762MF-FB(H) and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-2CD762MF-FB(H)

Summary of Contents for HIKVISION DS-2CD762MF-FB(H)

  • Page 1 Hikvision Technical Manual DS-2CD762MF-FB(H) Network Camera Technical Manual ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 2 It may not be reproduced in whole or in part, in any form, or by any means or be used for any other purpose without prior written consent of HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or...
  • Page 3 Hikvision Technical Manual Contents 1. Key Features 2. Specifications 3. Order Models 4. Dimension 5. Accessories ©2006 – 2011 by HIKVISION. All rights reserved.

  • Page 4: Key Features

    Complete function: PTZ control, alarm, and so on  3-axis (pan/tilt/rotation) positioning allows adjustment for optimum camera rotation and placement  Weather Proof Rating: IP66  Impact Protection: IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10  ©2006 – 2011 by HIKVISION. All rights reserved.

  • Page 5: Specifications

    1-ch, 3.5 mm audio interface (2.0 - 2.4 Vp-p, 1 kΩ) Audio Output 1-ch, 3.5 mm audio interface (Line level, 600 Ω) Communication Interface 1 RJ45 10 M/100 M Ethernet port and 1 RS-485 interface Alarm Input ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 6 -H: Max. 16 W with heater and fan on Impact Protection IEC60068-2-75Eh, 50J; EN50102, up to IK10 Weather Proof Rating IP66 Dimension Φ 160 × 134.5 mm (Φ 6.30” × 5.30”) Weight 1400 g (3.09 lbs) *“H” series supports heater. ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 7 Hikvision Technical Manual 3. Order Models DS-2CD762MF-FB, DS-2CD762MF-FBH 4. Dimension Unit: mm 5. Accessories Wall Mount DS-1217ZJ ©2006 – 2011 by HIKVISION. All rights reserved.
