Description of the device

Features

There are 2 different versions of the Multi-Exchanger: 3-pin / 5-pin Version
• Convert the signal from DMX-512 to 72CH. ANALOGUE output.
• Convert the signal from MIDI to 72CH. ANALOGUE output.
• The front panel alpha-numeric display shows the DMX start address & programming options.
•
The last scene remains when DMX disappears.
•
Pre-store a scene and is available for emergency.
•
Memory backup with EEPROM.
•
CHASE function can be selected from 1 to 72 channel & speed control.
•
Select ANALOGUE output from +(-)10V, +(-)12V and +(-)15V.
•
Receive NOTE ON / OFF signal of MIDI.

Overview

1) Power Switch
2) Fuse:F500mA250V 5x20mm
3) 7 Segment Display: Shows the DMX initial address & program options.
4) Button: Increase the DMX address or program options.
5) Menu button: Press to enter DMX or MIDI setting mode and confirm the setting.
6) Button: Decrease the DMX address or program options.
Chase button: Press to enter CHASE mode and the 7 segment display shows CHAS, then you can adjust
7)
chasing speed from SP01 to SP99 and the channels from C-01 to C-72.
8) Store button: Press to store a scene or to run a pre-stored scene.
9) MIDI IN connector: Receives MIDI data.
10) MIDI THRU connector: Repeats or send MIDI input.
11) 3 pin DMX IN connector: XLR male socket used to receive DMX signals.
12) 3 pin DMX OUT connector: XLR female socket used to send DMX signals.
13) 5 pin DMX IN connector: XLR male socket used to receive DMX signals.
14) 5 pin DMX OUT connector: XLR female socket used to send DMX signals.

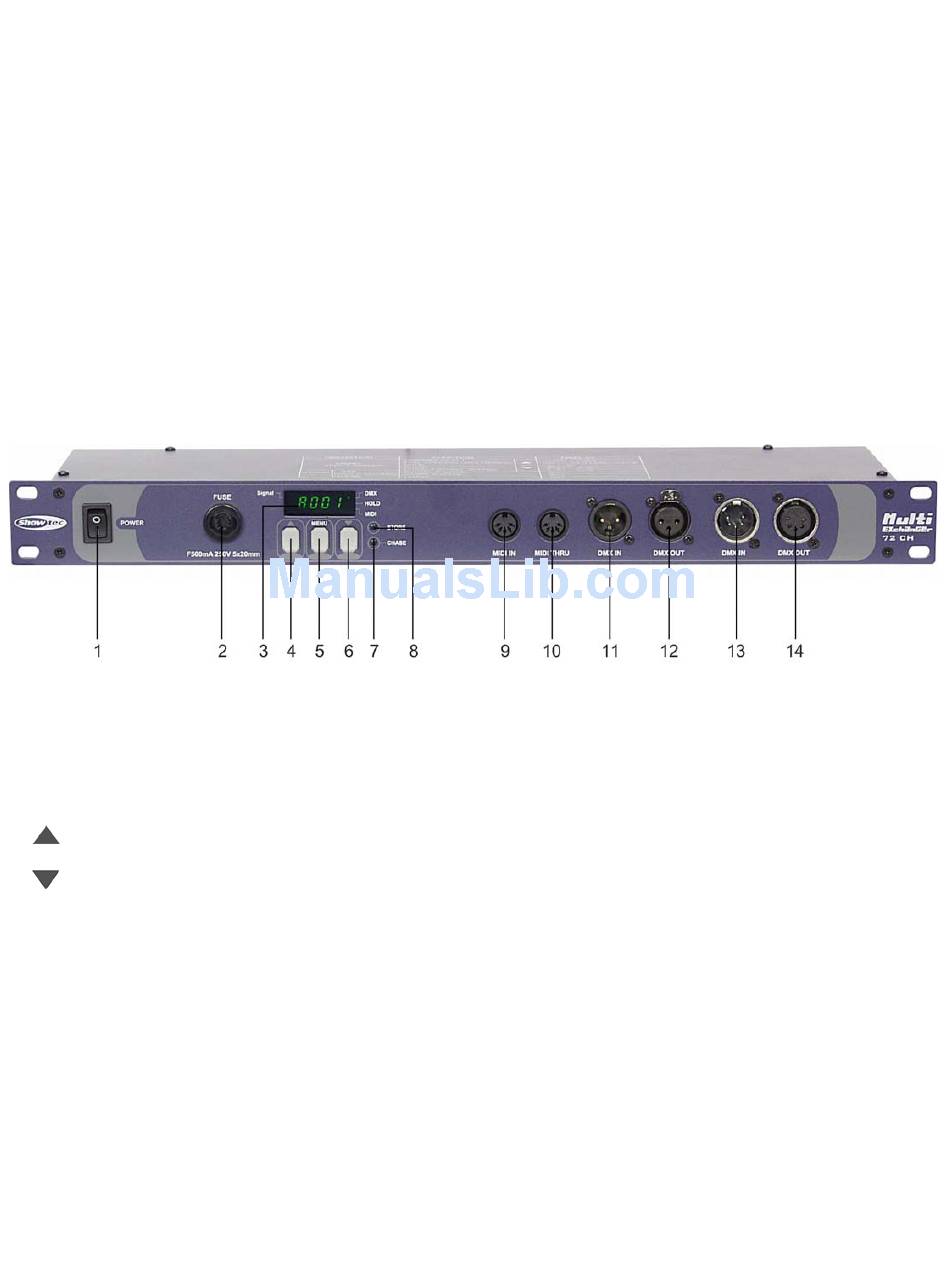

Fig. 1
