Summary of Contents for SHOWTEC Multi-Exchanger 72CH

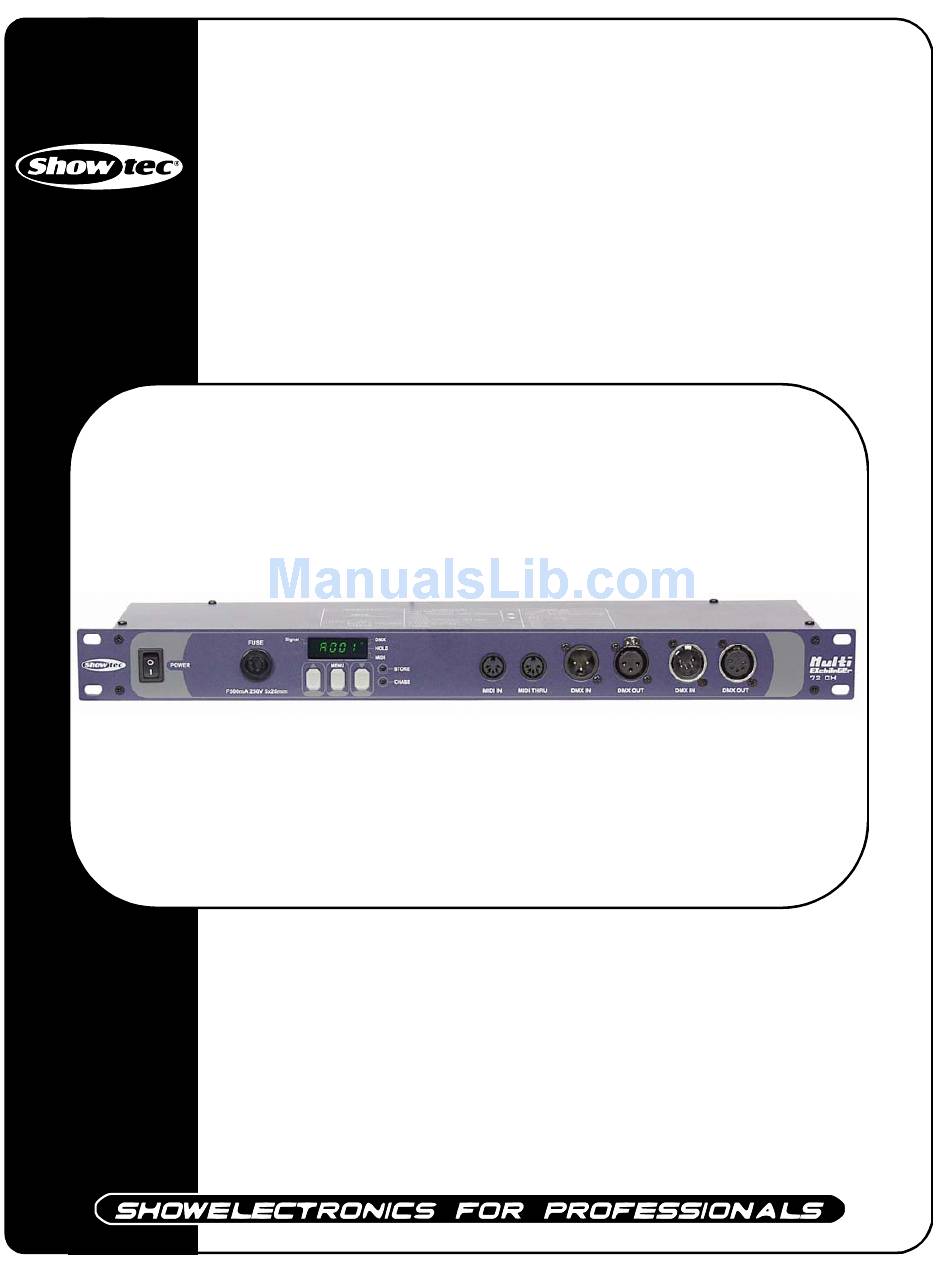

- Page 1 Multi-Exchanger 5-PIN VERSION ORDERCODE 50348 3-PIN VERSION ORDERCODE 50355...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Multi-Exchanger Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features…….……………………………………………………………………………………….……...…. Overview…….……………………………………………………………………………………….……...…. Installation................…...…………………………………….…... Installing ………….............……………………………….……..……………… Set Up and Operation..............……..…………………………….…… Maintenance...................………..………….…….……………... Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
• If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. • For replacement use fuses of same type and rating only. -
Page 6: Description
Description of the device Features There are 2 different versions of the Multi-Exchanger: 3-pin / 5-pin Version • Convert the signal from DMX-512 to 72CH. ANALOGUE output. • Convert the signal from MIDI to 72CH. ANALOGUE output. • The front panel alpha-numeric display shows the DMX start address & programming options. •... -
Page 7: Installation
Backside Fig. 2 1-24 channel output connector 25-pin 'D' socket. 25-48 channel output connector 25-pin 'D' socket. 49-72 channel output connector 25-pin 'D' socket. Output level: 10V, 12V and 15V are available by changing the setting of 4-dipswitches (see fig. 3). Analogue output polarity: Move to the left for "+"... -
Page 8: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. 1. -
Page 9: Maintenance
2. Check power from the wall, all cables, the fuse, etc. 3. If all of the above appears to be O.K., plug the unit in again. 4. If nothing happens after 30 seconds, unplug the device. 5. Return the device mixer to your Showtec dealer. -
Page 10: Product Specifications
Product Specification Model: Showtec Multi-Exchanger Voltage : 230V Dimensions : 220 x 130 x 55 mm (LxWxH) Weight : 1,65 kg Design and product specifications are subject to change without prior notice.
