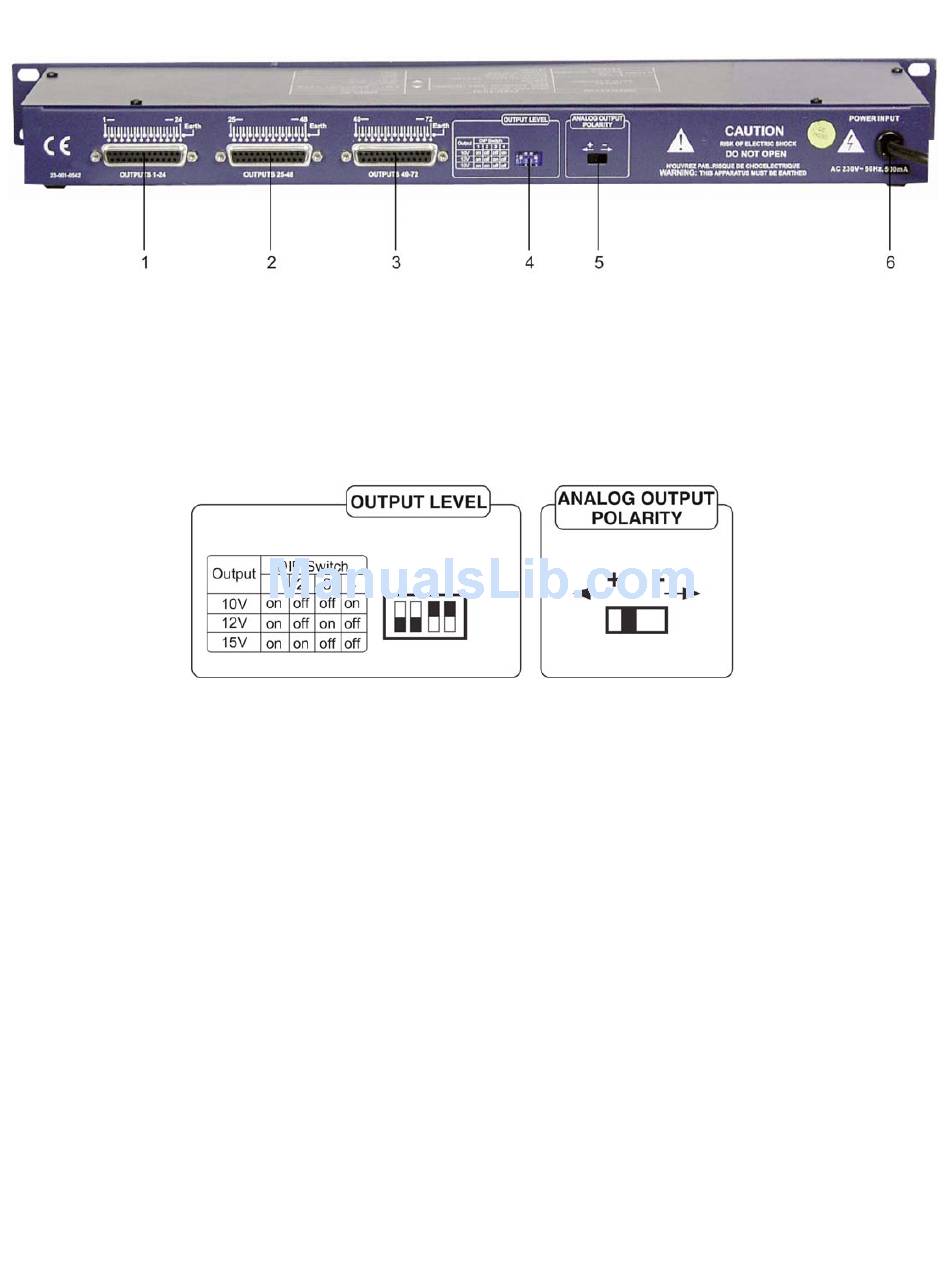

Backside
1)
1-24 channel output connector 25-pin 'D' socket.
2)
25-48 channel output connector 25-pin 'D' socket.
3)
49-72 channel output connector 25-pin 'D' socket.
4)
Output level: 10V, 12V and 15V are available by changing the setting of 4-dipswitches (see fig. 3).
5)
Analogue output polarity: Move to the left for "+" output, right for "-" output (see fig. 3).
6)
Power input: AC230V ~ 50Hz, 0.5A.
Installation
Installation
Remove all packing materials from the Multi-Exchanger. Check that all foam and plastic padding is
removed. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Fig. 3
Fig. 2
5
