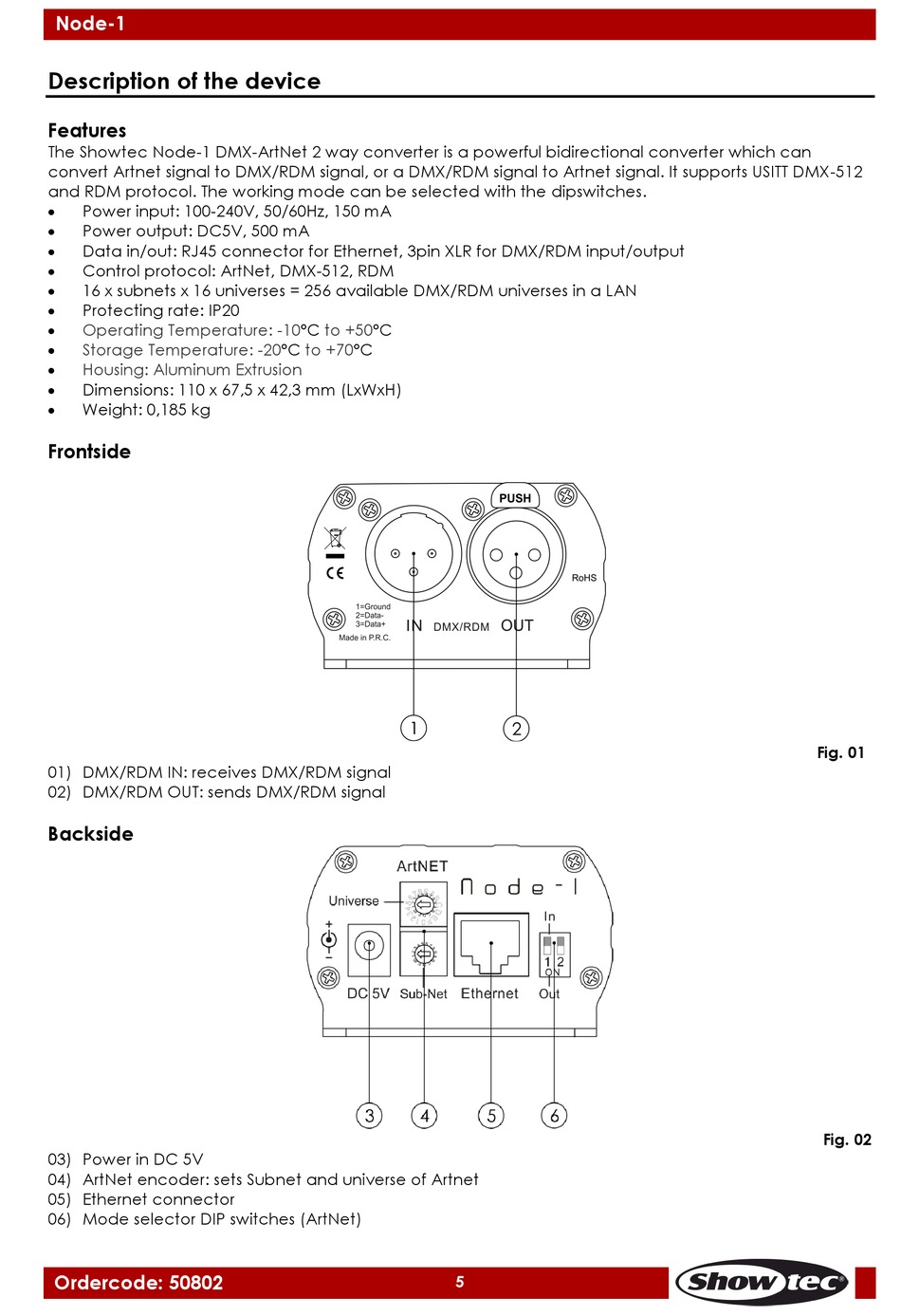

Description of the device

Features
The Showtec Node-1 DMX-ArtNet 2 way converter is a powerful bidirectional converter which can
convert Artnet signal to DMX/RDM signal, or a DMX/RDM signal to Artnet signal. It supports USITT DMX-512
and RDM protocol. The working mode can be selected with the dipswitches.
 Power input: 100-240V, 50/60Hz, 150 mA
 Power output: DC5V, 500 mA
 Data in/out: RJ45 connector for Ethernet, 3pin XLR for DMX/RDM input/output
 Control protocol: ArtNet, DMX-512, RDM
 16 x subnets x 16 universes = 256 available DMX/RDM universes in a LAN
 Protecting rate: IP20
 Operating Temperature:
 Storage Temperature:
 Housing: Aluminum Extrusion
 Dimensions: 110 x 67,5 x 42,3 mm (LxWxH)
 Weight: 0,185 kg

Frontside

01) DMX/RDM IN: receives DMX/RDM signal
02) DMX/RDM OUT: sends DMX/RDM signal

Backside

03) Power in DC 5V
04) ArtNet encoder: sets Subnet and universe of Artnet
05) Ethernet connector
06) Mode selector DIP switches (ArtNet)
Ordercode: 50802
-10°C to +50°C
-20°C to +70°C
5
Fig. 01
Fig. 02
