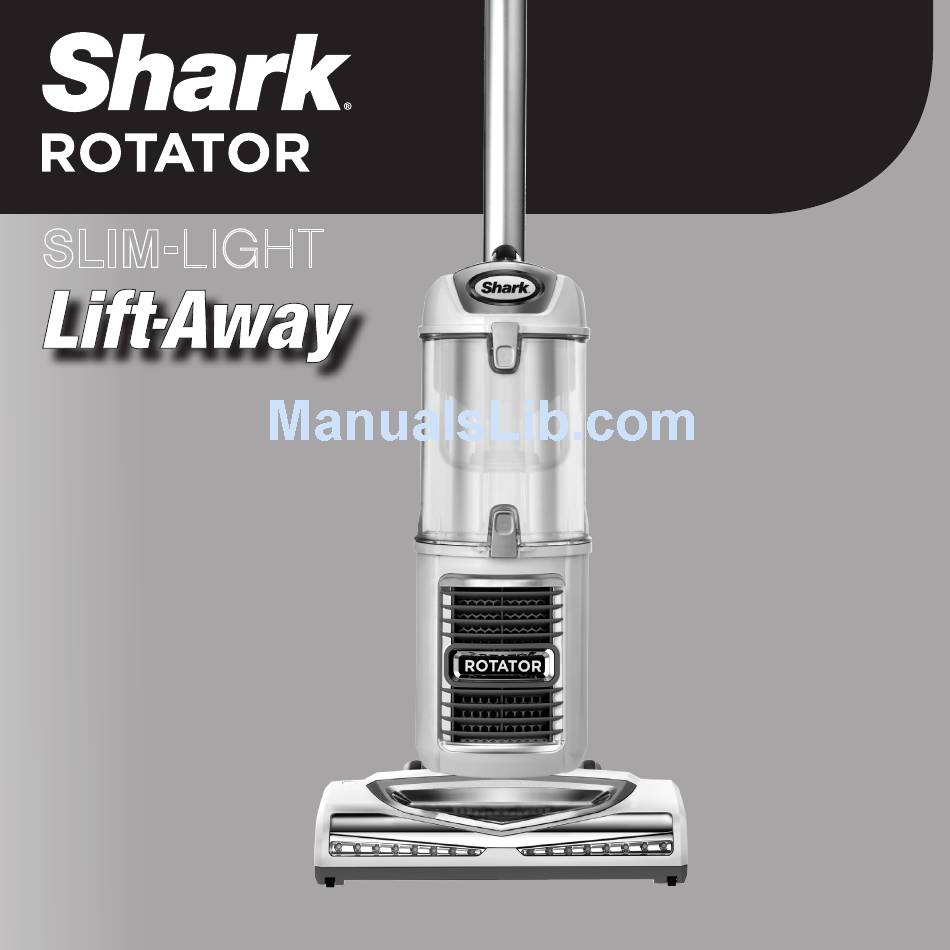

- Page 1 OWNER’S GUIDE NV340 SERIES ™ SLIM - LIGHT ™...
-
Page 2: Technical Specifications
For a list of what is included with this model, refer to inside flap of box. ® ™ ™ This Owner’s Guide is designed to help you get a complete understanding of If you should have a question about your Shark Rotator , please call the ® ™... -
Page 3: Important Safeguards
READ ALL INSTRUCTIONS BEFORE USE IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should GENERAL USE always be observed, including the following: 17 Use only as described in this manual. WARNING 18 DO NOT put any objects into openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. - Page 4 ASSEMBLY Place the vacuum body onto floor nozzle. Insert the wand into top of the vacuum. Insert the handle into the top of the wand. Insert the hose into the hose connector. Insert the crevice tool and dusting brush into the accessory holder as shown. CLICK CLICK CLICK...
- Page 5 UPRIGHT Press POWER to clean bare floor surfaces, area rugs or areas above-floor. The brushroll will not spin in this mode. CLEANING Press POWER and BRUSHROLL to clean carpets. The brushroll indicator lights will illuminate GREEN. If there is a jam, the indicator light on floor nozzle will illuminate RED. Refer to MAINTENANCE (P12) for instructions on removing blockages.
- Page 6 LIFT-AWAY ™ Press LIFT-AWAY to lift the pod off the floor nozzle. CLEANING To clean with the hose, press the WAND or HANDLE release button, then lift the handle up. Use for portable cleaning on stairs or anywhere.
- Page 7 LIFT-AWAY ™ Attach the desired cleaning tool. Should you need to increase or decrease the amount of suction, refer to Helpful Tips (P11), SUCTION RELEASE. CLEANING Use the shoulder strap to facilitate cleaning while moving around. Use for portable NOTE: Select cleaning accessories are included with this model. Additional accessories are available for purchase. cleaning on stairs SHOULDER STRAP - XTRP340 or anywhere.
- Page 8 CANISTER From the Lift-Away mode, place the pod onto the canister caddy. ™ CLEANING Press WAND release button then lift handle up. Convert your upright Attach the desired cleaning tool. Should you need to increase or decrease the amount of suction, refer to Helpful Tips (P11), SUCTION CONTROL. to a convenient Use the posts on the caddy to store additional cleaning accessories while you clean.
- Page 9 Crevice Tools Power Brush Dusting Brush ACCESSORIES – a. 30 cm 3055FLI340 3056FLI340 3050FC340 – b. 33 cm flexi 3054FLI340 Designed for removal of pet hair and Accessory Bag Cleans hard surfaces and ground in dirt from carpeted stairs (not shown) crevice tool for reaching upholstery.
- Page 10 ATTACHMENT & CLEANING PADS Use the Dust-Away ™ to clean dry bare floor surfaces. Do not use to clean damp floors or wet/sticky messes. Only use pads provided by Shark ® , which are designed to work with the Dust-Away attachment.
-
Page 11: Helpful Tips
HELPFUL TIPS SUCTION CONTROL This unit is equipped with a suction control collar to help with push and pull on high pile carpets, area rugs and to release suction when dusting delicate objects or drapery. Located at base of top handle, rotate the collar 90° to minimise suction. Be sure to close again for maximum suction. POWER BUTTONS The POWER button turns on suction only. -
Page 12: Maintenance
MAINTENANCE EMPTY THE DUST CUP Pull up on the dust cup release latch and lift the dustcup off the pod. Holding the dust cup over a garbage bag or can, press the bottom empty release latch. Press the top dust cup release latch to access the dust screen and remove built-up debris as required. Turn the dust cup over and empty the upper chamber by holding it by the handle on the side of the dust cup. -
Page 13: Bottom Of Floor Nozzle
MAINTENANCE CHECK FOR BLOCKAGES REMOVE AND INSPECT: HOSE AND TUBES Remove floor nozzle and extension wand and shine a flashlight up from the bottom to check for possible blockage. Remove dustcup and hose to check intake open- ing and hose elbow. BOTTOM OF FLOOR NOZZLE Using a coin, turn the locking screws to the unlock position and pull up to expose the airway. - Page 14 7. Restart the unit using either the POWER or POWER + BRUSHROLL buttons. Note: If vacuum still does not start, contact Customer Service at: 1-800-798-7398. Euro-Pro and Shark are registered trademarks of Euro-Pro Operating LLC. Rotator, Dust-Away and Lift-Away are trademarks of Euro-Pro Operating LLC.
-
Page 15: One (1) Year Limited Warranty
**THIS WARRANTY IS FOR ALL COUNTRIES EXCEPT GERMANY** **THIS WARRANTY IS FOR GERMANY ONLY** ONE (1) YEAR LIMITED WARRANTY TWO (2) YEAR LIMITED WARRANTY Euro-Pro Operating LLC warrants this product to be free from material defects and Euro-Pro Operating LLC warrants this product to be free from material defects and workmanship for a period of one (1) year from the date of purchase when utilized for workmanship for a period of two (2) years from the date of purchase when utilized for normal household use, subject to the following conditions, exclusions and exceptions. - Page 16 Euro-Pro Operating LLC 180 Wells Avenue Suite 200, Newton MA 02459 United States of America 1-800-798-7398 www.sharkninjamanuals.com NV340�INTL�31�IB�151201�8 Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are Printed in China ©...
