OWNER'S GUIDE
NV340UKV
™
SLIM - LIGHT
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rotator SLIM-LIGHT Lift-Away NV340UKV and is the answer not in the manual?

Questions and answers

Related Manuals for Shark Rotator SLIM-LIGHT Lift-Away NV340UKV

Summary of Contents for Shark Rotator SLIM-LIGHT Lift-Away NV340UKV

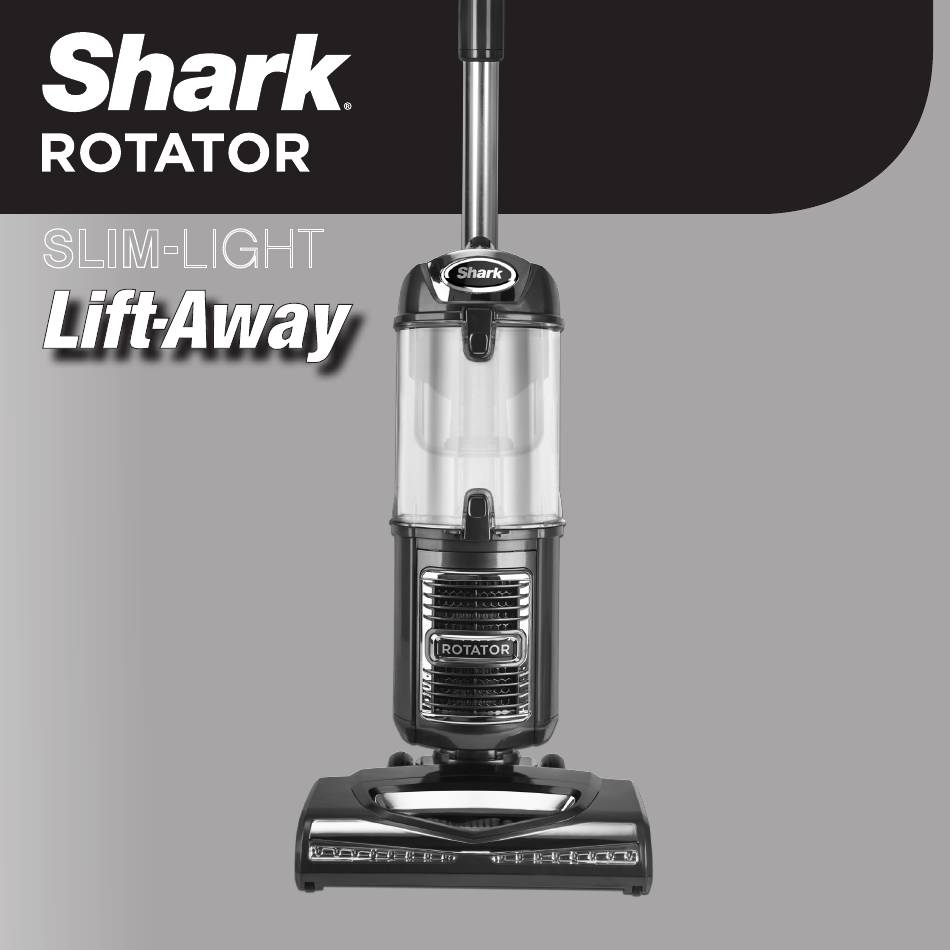

  • Page 1 OWNER’S GUIDE NV340UKV ™ SLIM - LIGHT ™...

  • Page 2: Technical Specifications

    Thank you for purchasing the Shark Rotator Slim Light Liftaway Vacuum. ® ™ ™ This Owner’s Guide is designed to help you get a complete understanding of your new vacuum cleaner. Please read it carefully and keep it future reference.

  • Page 3: Important Safeguards

    READ ALL INSTRUCTIONS BEFORE USE IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should GENERAL USE always be observed, including the following: 16 Use only as described in this manual. WARNING 17 DO NOT put any objects into openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
  • Page 4 ASSEMBLY Place the vacuum body onto floor nozzle. Insert the wand into top of the vacuum. Insert the handle into the top of the wand. Insert the hose into the hose connector. Insert the crevice tool and dusting brush into the accessory holder as shown. CLICK CLICK CLICK...
  • Page 5 UPRIGHT Press POWER to clean bare floor surfaces, area rugs or areas above-floor. The brushroll will not spin in this mode. CLEANING Press POWER and BRUSHROLL to clean carpets. The brushroll indicator lights will illuminate GREEN. If there is a jam, the indicator light on floor nozzle will illuminate RED.
  • Page 6 LIFT-AWAY ™ Press LIFT-AWAY to lift the pod off the floor nozzle. CLEANING To clean with the hose, press the WAND or HANDLE release button, then lift the handle up. Use for portable cleaning on stairs or anywhere...
  • Page 7 LIFT-AWAY ™ Attach the desired cleaning tool. Should you need to increase or decrease the amount of suction, refer to Helpful Tips (P10), SUCTION RELEASE. CLEANING Use the shoulder strap to facilitate cleaning while moving around. NOTE: Use for portable Select cleaning accessories are included with this model.
  • Page 8 Crevice Tool Dusting Brush – 33 cm flexi 3054FLI340 3050FC340 Crevice tool for reaching hard to reach places. Cleans hard surfaces and upholstery. ACCESSORIES Accessory Bag (not shown) 3053FLI340 NOTE: Select cleaning accessories are included. Others are available for purchase. For a list of what is included with this model, refer to inside flap of box.
  • Page 9 For best results, ensure that the pad is flat against the bottom surface and secured tightly. ATTACHMENT & CLEANING Use the Dust-Away to clean dry bare floor surfaces. Do not use to clean damp floors or wet/sticky messes. Only use pads provided by Shark , which are ™ ®...

  • Page 10: Helpful Tips

    HELPFUL TIPS SUCTION CONTROL This unit is equipped with a suction control collar to help with push and pull on high pile carpets, area rugs and to release suction when dusting delicate objects or drapery. Located at base of top handle, rotate the collar 90° to minimise suction. Be sure to close again for maximum suction. POWER BUTTONS The POWER button turns on suction only.

  • Page 11: Maintenance

    MAINTENANCE EMPTY THE DUST CUP Pull up on the dust cup release latch and lift the dustcup off the pod. Holding the dust cup over a garbage bag or can, press the bottom empty release latch. Press the top dust cup release latch to access the dust screen and remove built-up debris as required. Turn the dust cup over and empty the upper chamber by holding it by the handle on the side of the dust cup.

  • Page 12: Hose And Tubes

    MAINTENANCE CHECK FOR BLOCKAGES REMOVE AND INSPECT: HOSE AND TUBES Remove floor nozzle and extension wand and shine a flashlight up from the bottom to check for possible blockage. Remove dustcup and hose to check intake opening and hose elbow. BOTTOM OF FLOOR NOZZLE Using a coin, turn the locking screws to the unlock position and pull up to expose the airway.
  • Page 13 TROUBLE- Vacuum is not picking up dirt. No suction or light suction SHOOTING • Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum. GUIDE • Dust cup may be full; empty dust cup. •...
  • Page 14 NOTES Dust-Away, Lift-Away, Shark and Rotator are trademarks of Euro-Pro Operating LLC. All other brand names may be trademarks of their respective owners.

  • Page 15: Warranty Terms And Conditions

    ® When you register your guarantee we’ll have your details to hand if we ever need to get in touch. You can also receive tips and advice on how to get the best out of your Shark vacuum and hear the ®...
  • Page 16 Euro-Pro Europe Limited 15 Mariner Court Calder Park Wakefield WF4 3FL Freephone 0800 862 0453 www.sharkclean.eu NV340UKV�31�151104�2 Printed in China © 2015 Euro-Pro Operating LLC Illustrations may differ from actual product.
