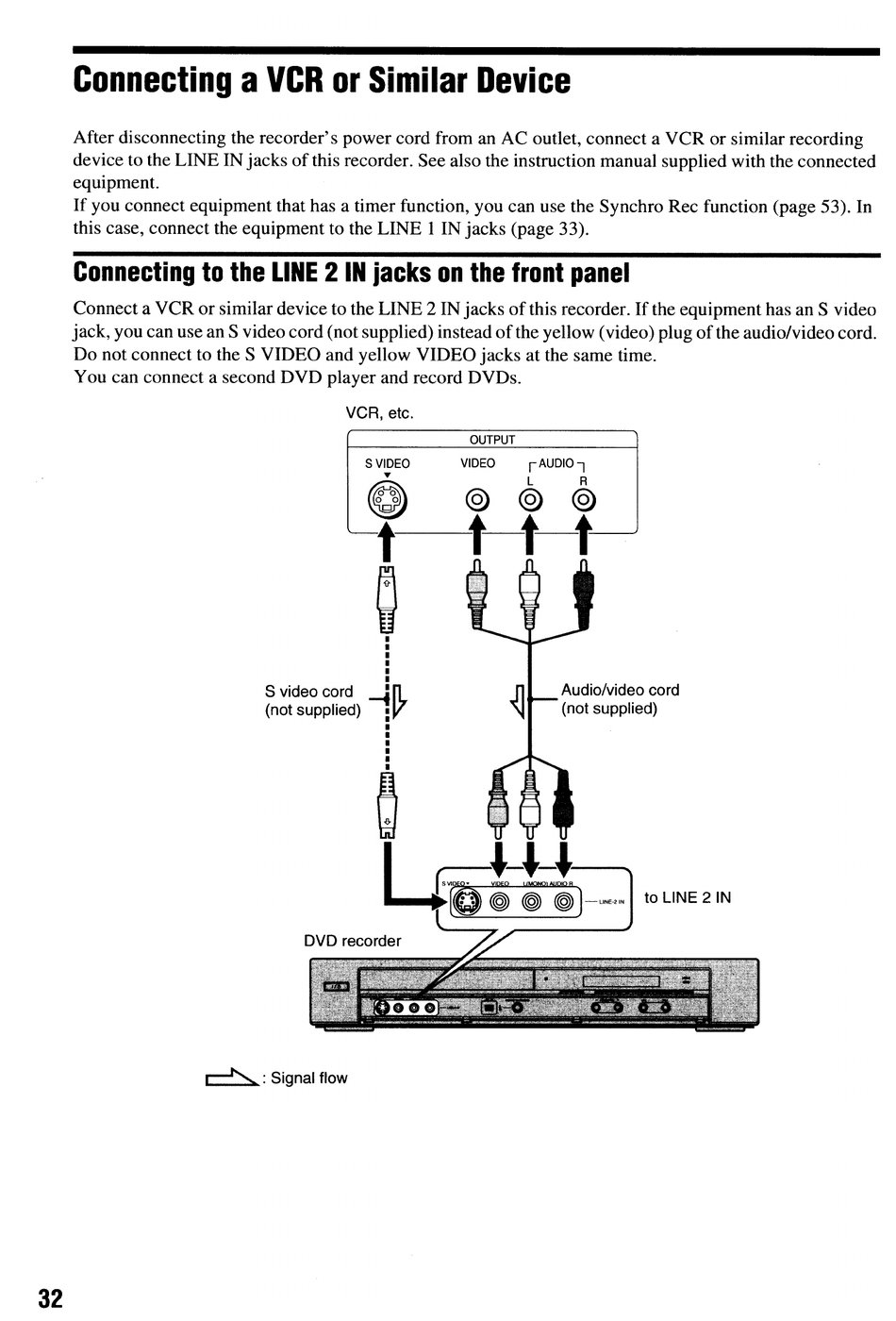

Connecting a VCR or Similar Device
After disconnecting the recorder's power cord from an AC outlet, connect a VCR or similar recording
device to the LINE IN jacks of this recorder. See also the instruction manual supplied with the connected
equipment.
If you connect equipment that has a timer function, you can use the Synchro Rec function (page 53). In
this case, connect the equipment to the LINE 1 IN jacks (page 33).
Connecting to the LINE 2 IN jacks on the front panel
Connect a VCR or similar device to the LINE 2 IN jacks of this recorder. If the equipment has an S video
jack, you can use an S video cord (not supplied) instead of the yellow (video) plug of the audio/video cord.
Do not connect to the S VIDEO and yellow VIDEO jacks at the same time.
You can connect a second DVD player and record DVDs.
VCR, etc.
OUTPUT
Audio/video cord
(not supplied)
S VIDEO VIDEO
I
AUDIO l
~
@
@ @
~t-t-t-t~
Q
· · · ·
·
S video cord
--:n...
(not supplied) :
V
· · · ·
o
I
r:;;!~!::!
~ro ~ ~ ~ l-'~'"
to LINE 2 IN
32
~:Signalflow
