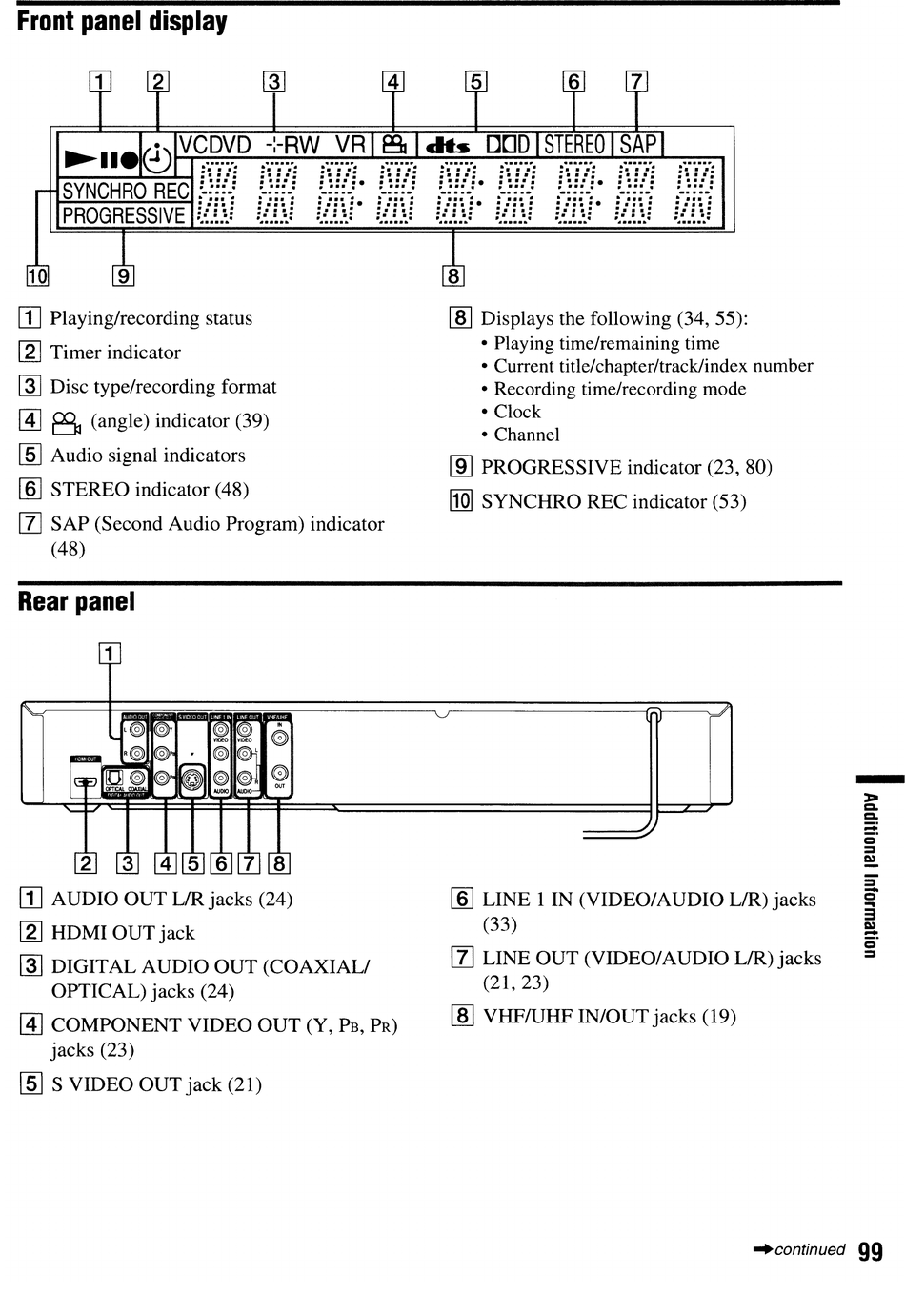

Front panel display
10 9 8
[] Playing/recording status
[2]
Timer indicator
~
Disc type/recording format
[4]
B
(angle) indicator (39)
[§]
Audio signal indicators
[§]
STEREO indicator (48)
[I]
SAP (Second Audio Program) indicator
(48)
Rear panel
2 3 4 5 6 7 8
[] AUDIO OUT L/Rjacks (24)
[2]
HDMI OUT jack
~
DIGITAL AUDIO OUT (COAXIAL/
OPTICAL) jacks (24)
[4]
COMPONENT VIDEO OUT (Y, PB, PR)
jacks (23)
[ID
S VIDEO OUT jack (21)
[ID
Displays the following (34, 55):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
• Clock
• Channel
[ID
PROGRESSIVE indicator (23, 80)
[Q]
SYNCHRO REC indicator (53)
[§]
LINE 1 IN (VIDEO/AUDIO L/R) jacks
(33)
[I]
LINE OUT (VIDEO/AUDIO L/R) jacks
(21, 23)
[ID
VHF/UHF IN/OUT jacks (19)
