Sony RDR-GXD500 Service Manual

QQ
3 7 63 1515 0
SERVICE MANUAL
System
Laser: Semiconductor laser
Transmission standards: DVB-T
Channel coverage:
UHF channels B21 - B69
TE
L 13942296513
Aerial out: 75-ohm asymmetrical aerial socket
Video recording format: MPEG Video
Audio recording format/applicable bit rate:
Dolby Digital/2 ch, 256 kbps
When you play PCM sound tracks with a 96 kHz
sampling frequency, the output signals from the
DIGITAL OUT (OPTICAL or COAXIAL) jack
are converted to 48 kHz sampling frequency.
www
.
http://www.xiaoyu163.com
Inputs and outputs
LINE 2 OUT
(AUDIO): Phono jack/2 Vrms/10 kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y:1.0 Vp-p, C: 0.3
Vp-p (PAL)
LINE 2 IN/LINE 4 IN
(AUDIO): Phono jack/2 Vrms/more than 22
kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y:1.0 Vp-p, C: 0.3
Vp-p (PAL)
LINE 1 -TV: 21-pin
CVBS IN/OUT
S-Video/RGB OUT (upstream)
LINE 3: 21-pin
CVBS IN/OUT
S-Video/RGB IN
S-Video OUT (downstream)
Decoder
DIGITAL OUT (OPTICAL): Optical output
jack/–18 dBm (wave length: 660 nm)
DIGITAL OUT (COAXIAL): Phono jack/0.5
Vp-p/75 ohms
COMPONENT VIDEO OUT
(Y, P
Phono jack/Y: 1.0 Vp-p, P
P /C
R
x ao u163
y
i
http://www.xiaoyu163.com
RDR-GXD500
2 9
8
SPECIFICATIONS
Q Q
3 6 7 1 3 1 5
/C , P /C ):
B B R R
/C : 0.7 Vp-p,
B B
: 0.7 Vp-p
R
co
.
9 4 2 8
RMT-D211P
UK Model
General
Power requirements: 220-240 V AC, 50/60 Hz
Power consumption: 41W
Dimensions (approx.): 430 × 85 × 346 mm
(width/height/depth) incl. projecting parts
0 5 8 2 9 9 4 2 8
Mass (approx.): 4.9 kg
Operating temperature: 5 ºC to 35 ºC
Operating humidity: 25 % to 80 %
Supplied accessories:
Audio/video cord (1)
Mains lead (1)
Aerial cable (1)
Remote commander (remote) (1)
R6 (size AA) batteries (2)
Specifications and design are subject to change
without notice.
Compatible colour systems
This recorder is designed to record using the PAL
colour system and play back using the PAL or
NTSC colour systems.
m

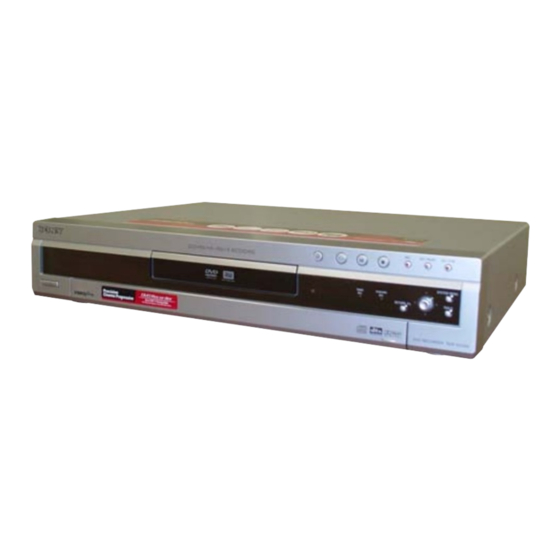

DVD RECORDER

9 9
9 9
