Service Manual
PRODUCT INFORMATION
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
• Colour
• Power consumption
• Suction Power
• Noise level
• Dustcapacity
• Filtration system
Usability
• Action Radius
• Cord length
• Handgrip
• Accessory storage
Published by Philips Consumer Lifestyle
14/09 Version 1.2
: Deep black
: 2000 W
: 325 W
: 82 dBA
: 3 L
: Micro filter
S-bag
: 9 m
: 6 m
: Extra long ergonomic
grip
: Accessory holder on
telescopic tube
Printed in the Netherlands

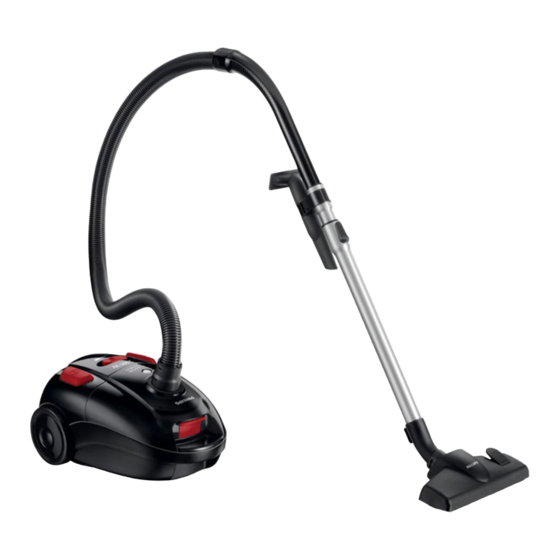

Vacuum cleaner
Weight and dimensions (L x W x H):
• Dimensions of product
• Dimensions packaging
• Weight
ACCESSORIES
• Standard nozzle
: All-purpose nozzle
• Additional nozzle
: Hard floor nozzle
• Tubes
: Telescopic tube
• Accessories
: Crevice and small nozzle
• Accessory storage : Accessory holder on tube
REPAIR INSTRUCTION
• No specific issues
OPTIONAL (accessories)
• FC8021/03 : Philips Disposable S-bag
© Copyright reserved
FC8454/01
: 406 x 282 x 220 mm
: 520 x 300 x 290 mm
: 4.2 kg
Subject to modification
