Summary of Contents for D-Link DCS-855L

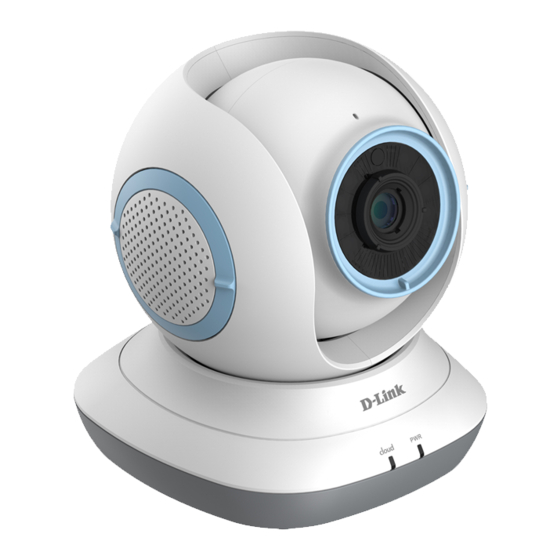

- Page 1 Wi-Fi Baby Camera Pan & Tilt HD Cloud Camera DCS-855L Quick Install Guide...
-
Page 2: Before You Begin
NOT intended to replace proper supervision of children. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link. All other third-party marks mentioned herein may be trademarks of their respective owners. © 2014 D-Link. All Rights Reserved. -
Page 3: Package Contents
Package Contents DCS-855L Wi-Fi Baby Camera Additional Accent Rings Focus Ring Adjustment Tool Wall Mount Kit Mounting Bracket Power Adapter Quick Install Guide If any of the above items are missing, please contact your reseller. Minimum Requirements Mobile Requirements: •... -
Page 4: Hardware Overview
Hardware Overview Front View Microphone Light Sensor microSD Card Slot Focus Ring (Under the cover) Camera Lens Cover with Accent Ring Front Accent Ring Night Vision Lights (IR) Power LED Cloud/Direct Mode LED Back View Speaker (Under the cover) Temperature Sensor Micro-USB Power Port Reset Button Direct Connect... -
Page 5: Camera Setup Options
2. Remotely... Connect to your DCS-855L using the Internet. Note: You can also connect directly to your DCS-855L wirelessly, so there is no need for an Internet connection or a router. See the Advanced Features section of the User Manual for... -
Page 6: Installation
Installation WARNING - STRANGULATION HAZARD Children have STRANGLED in cords. Keep adapter cord out of reach of children (minimum of 3 ft or 1 m away). NEVER place the camera or adapter cord inside the crib or child sleeping area. Do not use extension cords. -
Page 7: Mount The Camera
Mount the Camera Please refer to the steps below to assist you with mounting the camera. We suggest that you configure the camera before mounting. Warning: Indoor use only. Do not mount in a location where it may be in contact with water as it may damage the product and/or cause injury. - Page 8 FAQs 1. How do I adjust the focus? Place the focus ring adjustment tool over the focus ring and rotate until the image is clear. 2. How do I change the accent rings? Rotate the access ring counterclockwise, then lift it off. Put the new ring on and rotate it clockwise until it clicks into place.
- Page 9 8. Should the app be running constantly on my device? The app can run in the background, allowing you to hear your baby continuously, even when the phone is locked. The smartphone or tablet can still be used normally while the app is running. If you do not want to hear audio from the camera when the app is open, you can turn off the Background audio on the Configuration menu.
- Page 10 C. Tap on the alarm clock icon, and you will see the Push Notification setting. Tap on the switch icon to activate push notifications. The switch icon will turn green, and you should begin to receive alerts as specified. Note: If you do not receive alerts, go to the Configuration menu and adjust the sensitivity level of sound and motion detection as described on the previous page, question 9.
- Page 11 Notes...
- Page 12 Notes...
- Page 13 Notes...
- Page 14 Notes...
- Page 15 Notes...
-
Page 16: Technical Support
December 18, 2014 6DCS855LQN02G ©2014 All rights reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link. All other third- party marks mentioned herein may be trademarks of their respective owners. Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
