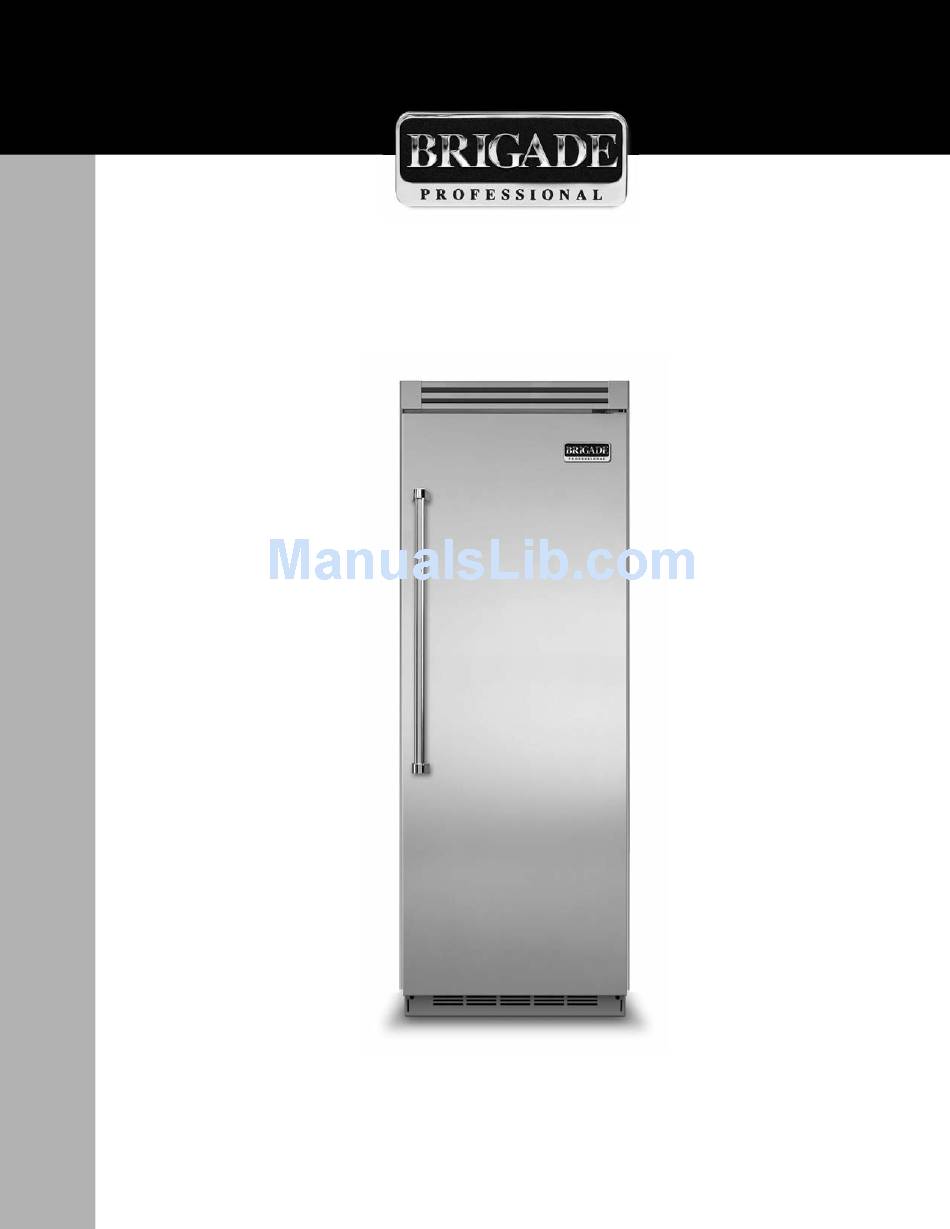

  • Page 1: Installation Guide

    Installation Guide All Refrigerator/All Freezer...

  • Page 2: Table Of Contents

    Table of Contents Warnings & Important Information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 Professional Dimensions &...
  • Page 3 IMPORTANT– Please Read and Follow! • Make sure that incoming voltage is the same Your safety and the safety of others is very as unit rating. An electric rating plate important. specifying voltage, frequency, wattage, amperage, and phase is attached to the We have provided many important safety product.
  • Page 4 IMPORTANT– Please Read and Follow! A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local laws, or local ordinances. • The required use of a GFI is normally related to the location of a receptacle with respect to any significant sources of water or moisture.
  • Page 5 IMPORTANT– Please Read and Follow! It is your responsibility to: • comply with installation specifications and dimensions. • properly install unit. • remove any moldings or decorative panels that prevent the unit from being serviced. • make sure that you have these materials (not provided with your unit), which are necessary for proper installation: •...

  • Page 6: Dimensions & Specifications (30" & 36")

    Dimensions 30” All Refrigerator/All Freezer 3 – 1 9 / 3 2 ” ( 9 . 1 c m 36” All Refrigerator/All Freezer 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ” – 3 / ( 5 2 4 ”...
  • Page 7 Specifications 30” All Refrigerator/All Freezer Description CVCFB CVCRB Overall width 30” (76.2 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. To front edge of side trim: 22-3/16” (56.4 cm) Overall depth from rear To front of top grille: 24”...

  • Page 8: Dimensions & Specifications (30" & 36" With Flush Mount Trim)

    Dimensions 30” All Refrigerator/All Freezer with Flush Mount Trim 3 – 1 9 / 3 2 ” ( 9 . 1 c m 36” All Refrigerator/All Freezer with Flush Mount Trim 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ”...
  • Page 9 Specifications 30” All Refrigerator/All Freezer with Flush Mount Trim Description CVCFB/Flush Mount CVCRB/Flush Mount Overall width 30” (76.2 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. To front edge of side trim: 23-3/8” (59.4 cm)

  • Page 10: Cutout Dimensions (30")

    Cutout Dimensions 30” All Refrigerator/All Freezer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 – 7 / 8 ”...

  • Page 11: Anti-Tip Dimensions (30")

    Anti-Tip Dimensions 30” All Refrigerator/All Freezer Anti-Tip Location Two 2”x 4” mounting boards 3” (7.6 cm) x 3-1/2” (8.9 cm) 3 ” ( 7 . 6 c 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m ) m i n t o b o t t o m...

  • Page 12: Cutout Dimensions (36")

    Cutout Dimensions 36” All Refrigerator/All Freezer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 – 7 / 8 ”...

  • Page 13: Anti-Tip Dimensions (36")

    Anti-Tip Dimensions 36” All Refrigerator/All Freezer Anti-Tip Location Two 2”x 4” mounting boards 3” (7.6 cm) x 3-1/2” (8.9 cm) 3 ” ( 7 . 6 c 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m ) m i n t o b o t t o m...

  • Page 14: Dimensions & Specifications (Dual 30"/ Dual 30" & 36")

    Dimensions Dual 30” All Refrigerator/All Freezer 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ” – 3 / ( 5 2 1 ” ( 2 . 5 B e t 4 c m w e e n i t s...
  • Page 15 Dimensions Dual 30” & 36” All Refrigerator/All Freezer 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ” – 3 / ( 5 2 1 ” ( 2 . 5 B e t 4 c m w e e n i t s...
  • Page 16 Dimensions Dual 36” All Refrigerator/All Freezer 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ” – 3 / ( 5 2 1 ” ( 2 . 5 B e t 4 c m w e e n i t s...
  • Page 17 Specifications Dual All Refrigerator/All Freezer* Description (2) 30” Units (1) 36” & (1) 30” Unit (2) 36” Units Overall width 60” (152.4 cm) 66” (167.6 cm) 72” (182.9 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. To front edge of side trim: 22-3/16”...

  • Page 18: Dimensions & Specifications (Dual 30"/ Dual 30" & 36" With Flush Mount Trim)

    Dimensions Dual 30” All Refrigerator/All Freezer with Flush Mount Trim 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ” – 3 / ( 5 2 1 ” ( 2 . 5 B e t 4 c m w e e n i t s...
  • Page 19 Dimensions Dual 30” & 36” All Refrigerator/All Freezer with Flush Mount Trim 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ” – 3 / ( 5 2 1 ” ( 2 . 5 B e t 4 c m w e e...
  • Page 20 Dimensions Dual 36” All Refrigerator/All Freezer with Flush Mount Trim 3 – 1 9 / 3 2 ” ( 9 . 1 c m 4 ” – 3 / ( 5 2 1 ” ( 2 . 5 B e t 4 c m w e e n i t s...
  • Page 21 Specifications Dual All Refrigerator/All Freezer w/Flush Mount Trim* Description (2) 30” Units (1) 36” & (1) 30” Unit (2) 36” Units Overall width 60” (152.4 cm) 66” (167.6 cm) 72” (182.9 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. To front edge of side trim: 23-3/8”...

  • Page 22: Cutout Dimensions (Dual 30")

    Cutout Dimensions Dual 30” All Refrigerator/All Freezer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –...

  • Page 23: Anti-Tip Dimensions (Dual 30")

    Anti-Tip Dimensions Dual 30” All Refrigerator/All Freezer Anti-Tip Location Two 2”x 4” mounting boards per unit 3” (7.6 cm) x 3–1/2” (8.9 cm) 3 ” ( 7 . 6 c 7 9 – 3 / 8 ” ( 2 0 1 .

  • Page 24: Cutout Dimensions (Dual 30" & 36")

    Cutout Dimensions Dual 30” & 36” All Refrigerator/All Freezer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –...

  • Page 25: Anti-Tip Dimensions (Dual 30" & 36")

    Anti-Tip Dimensions Dual 30” & 36” All Refrigerator/All Freezer Anti-Tip Location Two 2”x 4” mounting boards per unit 3” (7.6 cm) x 3 1/2” (8.9 cm) 3 ” ( 7 . 6 c 7 9 – 3 / 8 ” ( 2 0 1 .

  • Page 26: Cutout Dimensions (Dual 36")

    Cutout Dimensions Dual 36” All Refrigerator/All Freezer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –...

  • Page 27: Anti-Tip Dimensions (Dual 36")

    Anti-Tip Dimensions Dual 36” All Refrigerator/All Freezer Anti-Tip Location Two 2”x 4” mounting boards per unit 3” (7.6 cm) x 3–1/2” (8.9 cm) 3 ” ( 7 . 6 c 7 9 – 3 / 8 ” ( 2 0 1 .

  • Page 28: Cabinet Information

    Cabinet Information Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door face protrudes 1-3/4” (4.4 cm) from the cabinet face. The handle protrudes an additional 2-1/2” (6.4 cm) into the room. Top View Wall 1–13/16” (4.6 cm) Space if 24”...

  • Page 29: Top View

    Cabinet Information Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door face protrudes 1-3/4” (4.4 cm) from the cabinet face. The handle protrudes an additional 2-1/2” (6.4 cm) into the room. Top View Wall 1–13/16” (4.6 cm) Space if 24”...

  • Page 30: Cabinet Information (With Flush Mount Trim)

    Cabinet Information (With Flush Mount Trim) Models with flush mount trim fit flush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the room except the handle protrudes 2-1/2” (6.4 cm) into the room. Top View Wall 1”...
  • Page 31 Cabinet Information (With Flush Mount Trim) Models with flush mount trim fit flush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the room except the handle protrudes 2-1/2” (6.4 cm) into the room. Top View Overlapping cabinet doors Wall 3/4”...

  • Page 32: Custom Side Panel Dimensions

    Custom Side Panel Dimensions 3/16” 3/4” (0.5 cm) (1.9 cm) Back filler End panel panel 6 ” ” - 7 / ( 1 5 ( 5 7 5/32” (0.4 cm) ” - 7 / ( 5 7 ( 2 1 - 7 / 0 .

  • Page 33: Custom Side Panel Dimensions (With Flush Mount Trim)

    Custom Side Panel Dimensions (With Flush Mount Trim) 1” Z-Bracket (2.5 cm) 1/4” (0.6 cm) 4 ” - 3 / ( 5 5 3/4” (1.9 cm) End panel 4 ” - 3 / ( 5 5 ( 2 1 - 7 / 0 .

  • Page 34: General Information

    General Information Area Requirements It is required that a separate circuit serving only this appliance be provided. This Verify the following: appliance is equipped with a power supply • Unit can fit into residence and can be cord having a 3-prong grounding plug. To moved around corners and through minimize possible shock hazard, the cord doorways.

  • Page 35: Water Supply Requirements

    General Information Water Supply Requirements • Do not use plastic water lines from the household plumbing to the water inlet (All Freezer) valve connection on the unit. W A R N I N G • Do not use the self-piercing feature of a saddle valve.

  • Page 36: Unpacking & Moving

    General Information • Most of the unit’s weight is at the top. Tip Over Hazard Extra care is needed when moving the unit Appliance is top heavy and tips easily when to prevent tipping. not completely installed. Keep doors closed •...

  • Page 37: Flush Mount Side Trim Installation

    Flush Mount Side Trim Installation Note: If the unit is to be installed flush with the cabinets, the flush mount side trim must be installed first. If not, skip to “installation”. Step 1 - Locate the necessary parts: Two (2) flush mount trim pieces and a hardware kit with twenty-two (22) screws.

  • Page 38: Hinge Adjustment

    Hinge Adjustment Front of unit Remove 4 side screws and remove unit top. Loosen the 4 hinge screws. Adjust door. Retighten 4 hinge screws. Replace unit top. Replace 4 side screws. Wall Wall 2 x 4 2 x 4 Refrigerator Refrigerator Attach a single 2 x 4 to wall stud (refer to dimensions If needed, depending on cabinet and depth,...
  • Page 39 Plug in power cord to verify operation. Place unit within 3” of being flush with cabinets. Note: Make sure power switch and showroom switch Note: To avoid cabinet damage, place cardboard are in the “On” Position. between cabinets and unit. When moving unit, do not crimp, kink or crush water supply line.

  • Page 40: Kickplate Installation

    Turn on water supply and check for leaks. Lift unit off rollers to desired height and level unit using a 5/16” head wrench. Note: DO NOT use an electric device. Overtightening can cause damage. Screw Wall 2 x 4 Refrigerator Attach positive secure self-tapping bolts to 2 x 4 Verify that drain pan is installed and aligned.

  • Page 41: Door Stop Adjustment

    Door Stop Adjustment 90˚ 110˚ 120˚ Open refrigerator door so door stop and shoulder Remove shoulder screw and place in 90˚ or screw are accessible. 120˚ position. Note: Shoulder screw should be in 110˚ door opening position. Final Installation Replace top air grille. Using an 8”magnetic nut driver, replace the two 1/4”...
  • Page 42 Press “ACTIVATE CONTROLS” button pad and close door. Note: There is a 6 minute delay before the unit starts.

  • Page 43: Performance Checklist

    Performance Checklist Verify cabinet size. Verify drain pan is properly installed and Verify electrical supply and water supply there are no leaks in water connection. (if applicable). Install kickplate. Install anti-tip device(s) and verify unit is Remove internal packaging and labels secure.

  • Page 44: Control Panels

    Verify Operations Control Panels All Refrigerator FREEZER REFRIGERATOR MAX FRZ MAX REF DOOR OPEN ACTIVATE FAST ALARM DISPLAY HIGHER LOWER CONTROLS TEMP COOL FAST COOL POWER SAB SHOW HIGH TEMP All Freezer FREEZER REFRIGERATOR MAX FRZ MAX REF DOOR OPEN ACTIVATE FAST ALARM...

  • Page 45: Service & Registration

    Service & Registration Only authorized replacement parts may be used in performing service on the appliance. Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician. Record the following information indicated below.
  • Page 48 BRIGADE Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at brigade.ca F21342 EN (123113)
