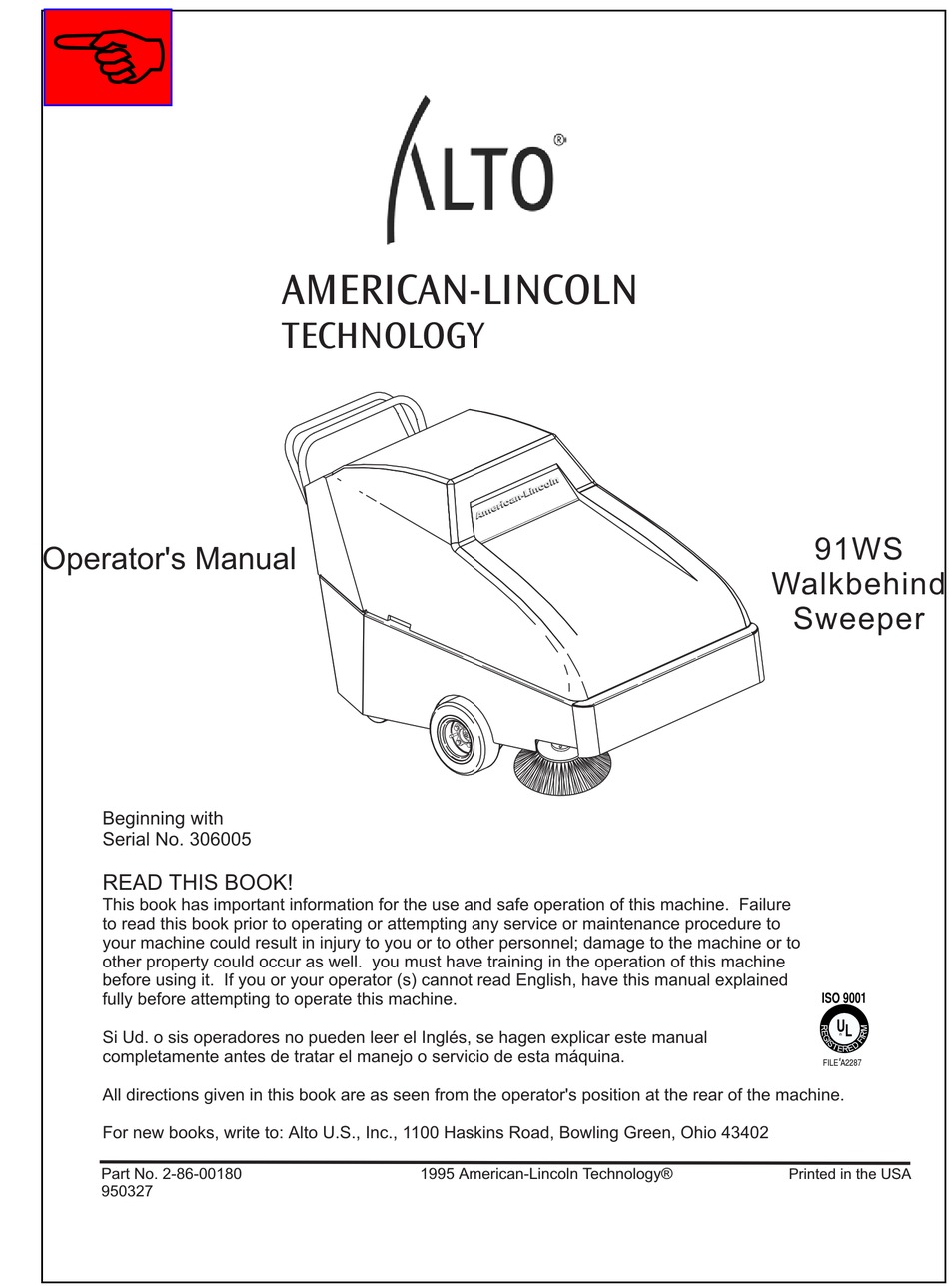

Alto 91WS Operator's Manual

Walkbehind sweeper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E
Operator's Manual
Beginning with
Serial No. 306005
READ THIS BOOK!
This book has important information for the use and safe operation of this machine. Failure
to read this book prior to operating or attempting any service or maintenance procedure to
your machine could result in injury to you or to other personnel; damage to the machine or to
other property could occur as well. you must have training in the operation of this machine
before using it. If you or your operator (s) cannot read English, have this manual explained
fully before attempting to operate this machine.
Si Ud. o sis operadores no pueden leer el Inglés, se hagen explicar este manual
completamente antes de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books, write to: Alto U.S., Inc., 1100 Haskins Road, Bowling Green, Ohio 43402
Part No. 2-86-00180
950327
AMERICAN-LINCOLN
TECHNOLOGY
1995 American-Lincoln Technology®
91WS
Walkbehind
Sweeper
ISO 9001
U L
®
#
FILE A2287
Printed in the USA
