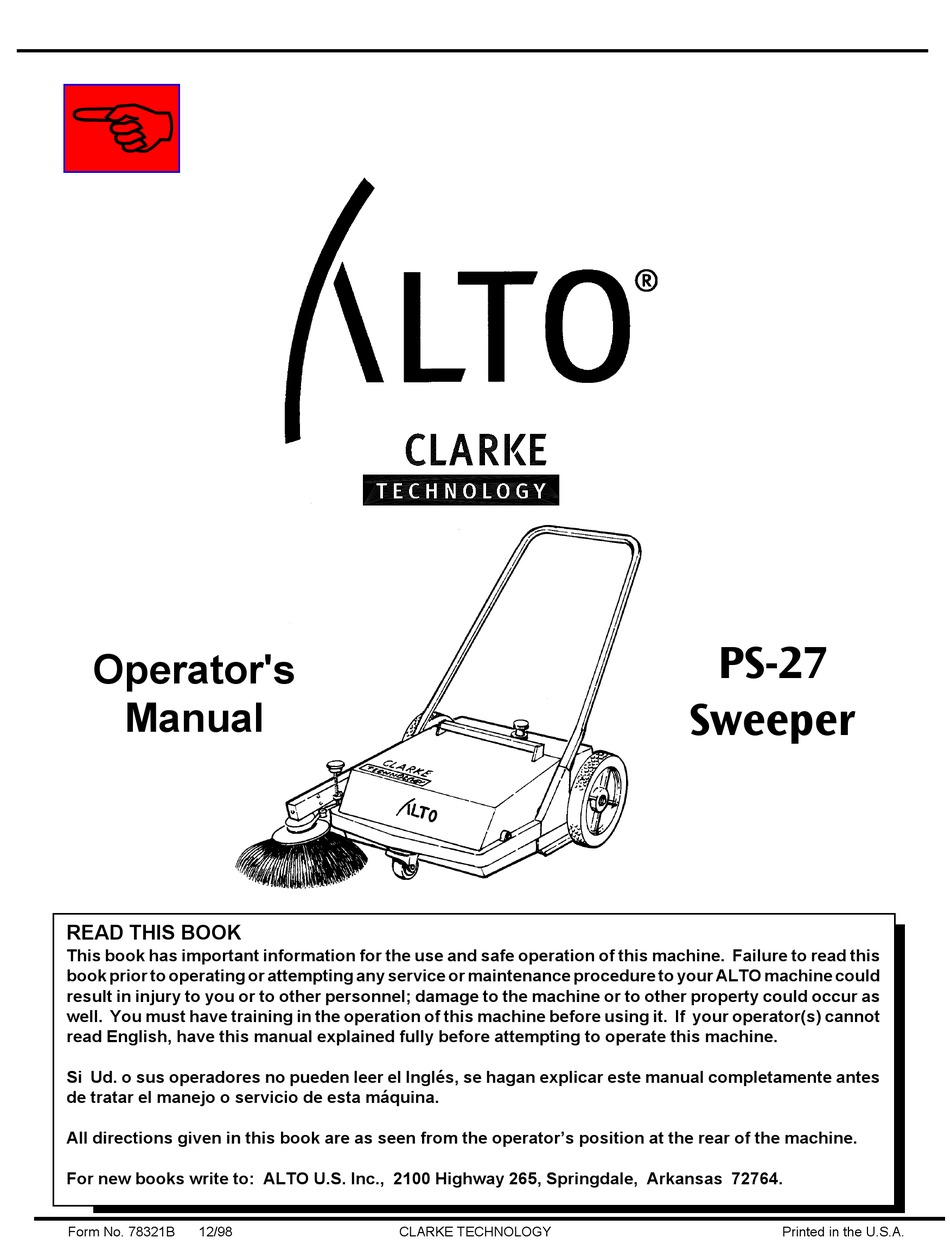

E
PS-27
Operator's
Manual
Sweeper
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your ALTO machine could
result in injury to you or to other personnel; damage to the machine or to other property could occur as
well. You must have training in the operation of this machine before using it. If your operator(s) cannot
read English, have this manual explained fully before attempting to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente antes
de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books write to: ALTO U.S. Inc., 2100 Highway 265, Springdale, Arkansas 72764.
Form No. 78321B
12/98
CLARKE TECHNOLOGY
Printed in the U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sweeper PS-27 and is the answer not in the manual?

Questions and answers

Related Manuals for Alto Sweeper PS-27

Summary of Contents for Alto Sweeper PS-27

  • Page 1 PS-27 Operator's Manual Sweeper READ THIS BOOK This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your ALTO machine could result in injury to you or to other personnel;...

  • Page 2: Table Of Contents

    Table of Contents Operator Safety Instructions ... 1 Introduction & Machine Specifications ... 2 How to Assemble the PS-27 ... 3 How to Operate the Machine ... 3 Maintenance ... 4 SECTION II Parts and Service Manual Assembly drawing ... 6 Parts List ...

  • Page 3: Operator Safety Instructions

    WARNING DANGER means: WARNING means: CAUTION means: DANGER: Failure to read the Operator's Manual prior to using this machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it.

  • Page 4: Introduction & Machine Specifications

    Introduction and Machine Specifications The PS-27 is many times faster than conventional cleaning with a push broom. The side broom allows for cleaning along curbs or walls and in corners. There is no engine or motor, no noise, and no odor. The push sweeper requires no mainte- nance.

  • Page 5: How To Assemble The Ps-27

    HOW TO ASSEMBLE THE PS-27 1. Remove the four (4) handle mounting screws from the handle brackets on the machine. 2. Slide the handle over the angle brackets. Line up the holes in the handle with the holes in the handle brackets and reinstall the four (4) screws.

  • Page 6: Maintenance

    MAINTENANCE Monthly: 1. Tip the machine on its side and remove any string that is wrapped around the main sweeping broom. 2. Lubricate the front caster wheel with light machine oil. 3. Inspect the rubber skirt on the hopper. Replace the skirt if it is torn. Every Six Months: 1.

  • Page 7: Section Ii Parts And Service Manual

    PS-27 Sweeper Section II Parts and Service Manual (78321B) CLARKE TECHNOLOGY Operator's Manual PS-27 Page...

  • Page 8: Assembly Drawing - 12/98

    Page 8 CLARKE TECHNOLOGY Model PS-27 Sweeper Assembly Drawing - 12/98 39 38 CLARKE TECHNOLOGY Operator's Manual PS-27...

  • Page 9: Parts List - 12/98

    Ref. Part No. Description 54867A Hopper Assembly 77371A Decal 56430A Skirt Hopper 57359A Retainer, Skirt 964046 Screw, M4 x 0.7 x 10 57237A Pulley Assembly 51608A Bumper, Side Broom 50504A Broom, Side 50911A "V" Belt 59854A M6 Spring Washer 964007 Screw M6 x 16 50130A Arm, Weldment...
  • Page 10 NOTES...
  • Page 11 ALTO U. S. A. Locations HEAD OFFICE ALTO U.S. Inc., St. Louis, Missouri 16253 Swingley Ridge Road, Suite 200 Chesterfield, Missouri 63017-1725 PRODUCTION FACILITIES ALTO U.S. Inc., Springdale, Arkansas 2100 Highway 265 Springdale, Arkansas 72764 (501) 750-1000 Customer Service - 1-800-253-0367 Technical Service - 1-800-356-7274 ALTO U.S.
  • Page 12 CLARKE TECHNOLOGY LIMITED WARRANTY This Clarke Industrial/Commercial Product is warranted to be free from defects in materials and workmanship under normal use and service for a period of one year from the date of purchase, when operated and maintained in accordance with Clarke's Maintenance and Operations instructions.
