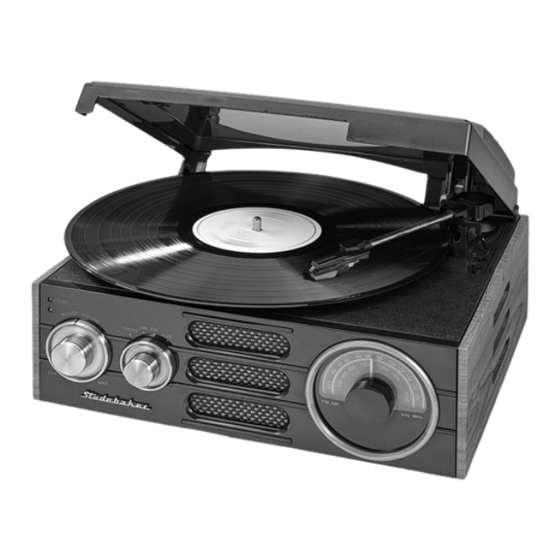

3 speed stereo turntable with am/fm stereo radio

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB6055 and is the answer not in the manual?

Questions and answers

Summary of Contents for Studebaker SB6055

  • Page 2: Important Safety Instructions

    WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The Caution Marking is located at the back enclosure of the apparatus.
  • Page 3 16. Do not overload wall outlet. Use only power source as indicated. 17. Use replacement part as specified by the manufacturer. 18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks. 19.
  • Page 4: Precautions Before Use

    PRECAUTIONS BEFORE USE • UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL. • DO NOT CONNECT THE UNIT TO THE MAINS BEFORE CHECKING THE MAINS VOLTAGE AND UNTIL ALL OTHER CONNECTIONS HAVE BEEN MADE. • DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS A SPACE OF SEVERAL INCHES AROUND THE UNIT FOR VENTILATION.
  • Page 5: Protect Your Furniture

    The serial number of this product is found on its back cover. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft or loss. Model Number: SB6055 Serial Number: ____________________...
  • Page 6: Accessories Included

    To encode music from your records or from Aux-in, connect the USB PORT (#22) of the SB6055 to a suitable USB Port on your computer via the USB cable provided. Please refer to CONNECTING TO A COMPUTER FOR RECORDING section of this manual for details.
  • Page 7: Radio Operation

    CAUTION This unit should not be adjusted or repaired by anyone except qualified service personnel. RADIO OPERATION 1. Rotate the FUNCTION SELECTOR (#4) to select the desired band (AM or FM). The dial scale LED will light up 2. Tune to the required station by turning the TUNING KNOB (#5). 3.
  • Page 8: Auxiliary Input

    1. Use an audio cable (not included) with one 3.5 mm stereo plug on each end of the cable. 2. Plug one end into the AUX-IN JACK (#23) on the back of the SB6055 and the other end of the cable into the Line-out Jack or Headphone Jack of your external audio device.
  • Page 9 INSTALL THE USB DRIVE 1. Use the included USB cable to connect the turntable to your computer. 2. Your computer will detect the SB6055 as “USB PnP Audio Device” and start to install USB drivers for it automatically. 3. Wait until your computer shows a pop up a message that it is installed properly and ready to use.
  • Page 10 3. Select “Edit” and then click “Audio Properties“ toward the bottom of the menu to select “Audio Properties” interface. 4. In the Sound Recording field, click the pull down menu to select “USB PnP Audio Device” as Default device of sound recording. 5.
  • Page 11 RUNNING AUDACITY SOFTWARE Note: Please review the software license and distribution restrictions found on the software disc. Use of Audacity software is subject to those conditions and restrictions. For additional help with recording and editing music by using the Audacity software, please visit http://audacity.sourceforge.net/ 1.
  • Page 12 Note: If you couldn't find the "Microphone (USB Audio Controller or USB Audio Code)" or “Microphone array to USB PnP audio device/controller” from the Device list, close the Audacity Software, make sure the USB Turntable is connected, then re-start Audacity Software and try again.
  • Page 13 6. Use the Audacity control panel to record or listen the music you have recorded - Click button to start recording. - Click the button to skip to start; - Click the button to skip to end; - Click the button to play;...
  • Page 14: Care And Maintenance

    CARE AND MAINTENANCE 1. Avoid operating your unit under direct sunlight or in hot, humid or dusty places. 2. Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors. 3. Unplug the unit from the electrical power outlet immediately in case of malfunction. CLEANING THE UNIT To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning.
  • Page 15 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A. This warranty is not assignable or transferable.
