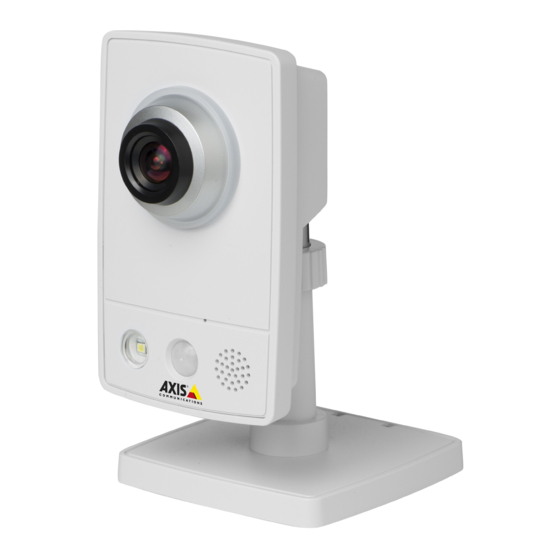

AXIS M1034-W Network Camera

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1034-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis M1034-W

Summary of Contents for Axis M1034-W

  • Page 1: User Manual

    AXIS M1034-W Network Camera User Manual...
  • Page 2 Low Voltage (LVD) Directive 2006/95/EC. See Safety on page 3 . • Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU. This manual is intended for administrators and users of AXIS M1034-W See Disposal and Recycling on page 3 . Network Camera, and is applicable to firmware 5.50 and later. It...
  • Page 3 Safety This product complies with IEC/EN/UL 60950-1, Safety of Information Por medio de la presente Axis Communications AB declara que el este Technology Equipment. If its connecting cables are routed outdoors, producto cumple con los requisitos esenciales y cualesquiera otras the product shall be grounded either through a shielded network cable disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 4 • find answers to resolved problems in the FAQ database. Search by product, category, or phrase • report problems to Axis support staff by logging in to your private support area • chat with Axis support staff •...

  • Page 5: Safety Information

    AXIS M1034-W Network Camera Safety Information Safety Information Hazard Levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 6: Table Of Contents

    AXIS Media Control (AMC) ........
  • Page 7 AXIS M1034-W Network Camera Table of Contents Check the Firmware ..........

  • Page 8: Hardware Overview

    15 Network LED indicator 16 Wireless LED indicator 17 Part number (P/N) & Serial number (S/N) The Axis product is equipped with a lens with manual focus. It is delivered with the lens prefocused and manual focusing is usually not required. Note Only change the focus if required, for example if the image is blurry.

  • Page 9: Network Connector

    Resetting the product to factory default settings. See page 56. • Connecting to an AXIS Video Hosting System service. See page 46. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...
  • Page 10 AXIS M1034-W Network Camera Hardware Overview Network LED Indication Green Steady for connection to a 100 Mbit/s network. Flashes for network activity. Amber Steady for connection to a 10 Mbit/s network. Flashes for network activity. Unlit No network connection. Power LED...

  • Page 11: Access The Product

    To view streaming video in Internet Explorer, allow installation of AXIS Media Control (AMC) when prompted. The Axis product includes one (1) H.264 decoder license for viewing video streams and one (1) AAC audio license. The licenses are automatically installed with AMC. The administrator can disable the installation of the decoders to prevent installation of unlicensed copies.

  • Page 12: Set The Root Password

    3. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 56) or by resetting the product to factory default.

  • Page 13: Axis Media Control Viewer Toolbar

    2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 16 for more information. The toolbar displays the following buttons:...
  • Page 14 Microphone button – Click to mute or unmute the microphone. In Simplex - speaker only mode, the Microphone and Talk buttons must both be active to send audio to the Axis product. Click either button to stop audio transmission. Use the slider to control the volume of the speakers and the microphone.
  • Page 15 AXIS M1034-W Network Camera Access the Product Zoom bar – Use the arrows to zoom in and out, or click on a position on the bar to zoom to that position. The PTZ controls can be disabled under PTZ > Advanced > Controls, see Controls on page 29.

  • Page 16: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 17: Alternative Methods Of Accessing The Video Stream

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.
  • Page 18 AXIS M1034-W Network Camera Media Streams Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp Multicast: axrtpm://<ip>/axis-media/media.amp • QuickTime supports G.711 and AAC audio encoding. The following paths can be used: rtsp://<ip>/axis-media/media.amp rtsp://<ip>/axis-media/media.3gp...

  • Page 19: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 20: Video And Audio

    Width and Height fields and click Apply. • When accessing the Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle.

  • Page 21: Stream Profiles

    Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.

  • Page 22: Camera Settings

    To change this setting go to Setup > Video & Audio > Camera Settings White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Page 23: About Overlay Text

    4. Select Enable PTZ to enable digital PTZ for the view area. 5. Click Save to save the settings. Note The PTZ functionality is useful during installation of the Axis product. Use a view area to crop out a specific part of the full view. About overlay text An overlay text can display the current date and time, or a text string.

  • Page 24: Privacy Mask

    Privacy masks cannot be bypassed using the VAPIX® application programming interface (API). The Privacy Mask List (Video & Audio > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Page 25: Audio Clips

    To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see Events on page 34.

  • Page 26: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 27 Light Buttons The built-in light on the AXIS product can be controlled directly from the Live View page by enabling the display of light buttons. To display the light buttons in the Live view Page, select the type of control from the drop-down list under Live View Config >...

  • Page 28: Ptz (Pan Tilt Zoom)

    AXIS M1034-W Network Camera PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) The PTZ menu is available if digital PTZ (pan, tilt and zoom) is enabled in the selected view area. For more information on view areas, see View Area on page 22.

  • Page 29: Advanced

    60 seconds after the last PTZ control command. 2. Event — The Axis product can be configured to go to a preset position when triggered by an alarm (see Events on page 34). The event will immediately be placed first in the queue except when an administrator is in control.
  • Page 30 AXIS M1034-W Network Camera PTZ (Pan Tilt Zoom) 5. Viewer — Multiple viewers must wait for their turn. The viewer has 60 seconds PTZ control before control is passed on to the next viewer in queue.

  • Page 31: Detectors

    Motion Detection Parameters on page 32. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Set Up Action Rules on page 34.
  • Page 32 AXIS M1034-W Network Camera Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.

  • Page 33: Audio Detection

    Audio Detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.

  • Page 34: Events

    Convert Event Types to Action Rules If the Axis product is upgraded to firmware version 5.40 or later, it is recommended to convert Event Types to Action Rules. The legacy user Event Types in the camera will continue to work but will not be visible in the user interface of the camera. The Event Types need to be converted to Action rules to become visible in the user interface.
  • Page 35 AXIS M1034-W Network Camera Events For more information, see the online help Triggers Available action rule triggers and conditions include: • Detectors Audio Detection – Trigger the rule when audio is detected. See Audio Detection on page 33. Live Stream Accessed – Trigger the rule when any stream is accessed and during edge storage playback.

  • Page 36: Add Recipients

    AXIS M1034-W Network Camera Events Actions Available actions include: • Activate Light – Turn the built-in light on or off. • Output Port – Activate an I/O port to control an external device. • Overlay Text – Display an overlay text. See How to include overlay text in an action rule on page 23.

  • Page 37: Create Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates on page 44.

  • Page 38: Set Up Recurrences

    AXIS M1034-W Network Camera Events 3. Click OK. To use the schedule in an action rule, select the schedule from the Schedule drop-down list in the Action Rule Setup page. Set Up Recurrences Recurrences are used to trigger action rules repeatedly, for example every 5 minutes or every hour.

  • Page 39: Recordings

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 54. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.
  • Page 40 AXIS M1034-W Network Camera Recordings 5. Click Save to save and start the recording.

  • Page 41: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 42: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 43 4. Set the HTTPS Connection Policy for the different user groups. 5. Click Save to enable the settings. To access the Axis product via the desired protocol, in the address field in a browser, enter https:// for the HTTPS protocol and http:// for the HTTP protocol.

  • Page 44: Date & Time

    Axis product: Server/Client certificates - To authenticate the Axis product. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Page 45: Network

    In Wired mode the product will require a network cable to connect to the network. IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 46 5. Close the command prompt when the product responds with Reply from 192.168.0.125:... or similar. 6. Open a browser and type http://<IP address> in the Location/Address field. For other methods of assigning the IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup Note •...
  • Page 47 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 48 (LAN) from the public network (Internet). Use NAT traversal when the Axis product is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router.
  • Page 49 Select Enable WLAN pairing button to allow the wireless Axis product to connect to an access point by pushing a button on both of the devices within a 120 second time window. During this time the devices will automatically discover each other and agree on a configuration.
  • Page 50 Ad-hoc mode allows users to form a wireless LAN without connection through an access point. The Axis product can, for example, connect point-to-point to an existing ad-hoc network, or if there is none, create one itself. Ad-hoc connection may be useful in certain installations and for troubleshooting but is not the recommended method.
  • Page 51 Certification Authority. The network authenticates the client using an identity and a password. To gain access to the protected network, the Axis product presents its identity and password to the network access point. If these credentials are approved, the access point allows access on a preconfigured port.
  • Page 52 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).
  • Page 53 To use SNMP v3, HTTPS must be enabled, see HTTPS on page 43. To enable SNMP v3, check the box and provide the initial user password. Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Reset to Factory Default Settings on page 56. UPnP The Axis product includes support for UPnP .

  • Page 54: Storage

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 55: Support

    Click Default to reset all settings, including the IP address, to the factory default values. This button should be used with caution. The Axis product can also be reset to factory default using the control button, see Reset to Factory Default Settings on page 56.

  • Page 56: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 57: Troubleshooting

    The latest version may contain a correction that fixes your particular problem. The current firmware version in the Axis product is displayed in the page Setup > Basic Setup and in Setup > About.

  • Page 58: Symptoms, Possible Causes And Remedial Actions

    Status indicator. 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Note The emergency recovery procedure only works on the wired interface.
  • Page 59 The TTL (Time To Live) value may need to be increased. No multicast H.264 Check with your network administrator that the multicast addresses used by the Axis product displayed in the client are valid for your network.
  • Page 60 AXIS M1034-W Network Camera Troubleshooting Motion Detection triggers unexpectedly Changes in luminance Motion detection is based on changes in luminance in the image. This means that if there are sudden changes in the lighting, motion detection may trigger mistakenly. Lower the sensitivity setting to avoid problems with luminance.

  • Page 61: Technical Specifications

    Analytics Video motion detection, Active tampering alarm, Audio detection Support for AXIS Camera Application Platform enabling installation of AXIS Video Motion Detection 3, AXIS Cross Line Detection, AXIS Digital Autotracking and third-party applications, see www.axis.com/acap Event triggers Analytics, Edge storage events...
  • Page 62 AXIS PoE Active Splitter 5 V AF accessories AXIS T8414 Installation Display Extension for stand: 100 mm (4.0 in) Video AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development management Partners available on www.axis.com/techsup/software software Languages...

  • Page 63: Connectors

    AXIS M1034-W Network Camera Technical Specifications Connectors I/O Connector 4-pin terminal block For an example diagram, see Connection Diagrams on page 63. Function Notes Specifications 0 V DC 0 V DC (-) DC output Can be used to power auxiliary equipment.

  • Page 64: Performance Considerations

    Heavy network utilization due to poor infrastructure. Bandwidth affected. • Viewing on poorly performing client computers lowers perceived performance. Frame rate affected. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
  • Page 65 User Manual Ver. M9.2 AXIS M1034-W Network Camera Date: March 2016 © Axis Communications AB, 2012 - 2016 Part No. 1476365...
