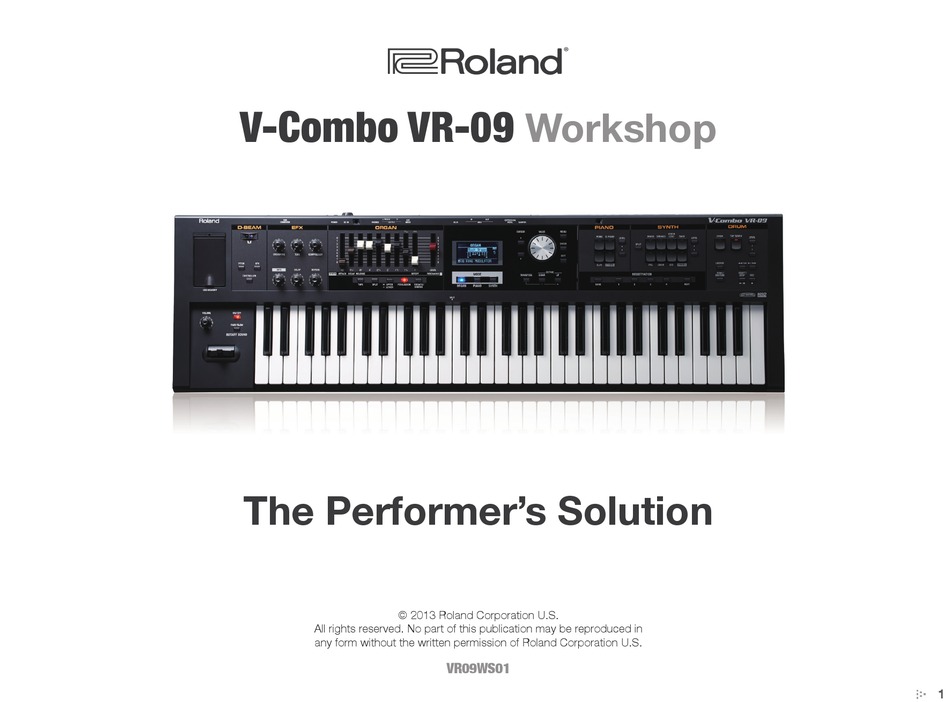

- Page 1 ® ®ÂØÒňΠV-Combo VR-09 Workshop The Performer’s Solution © 2013 Roland Corporation U.S. All rights reserved. No part of this publication may be reproduced in any form without the written permission of Roland Corporation U.S. VR09WS01...
-
Page 2: About This Booklet
And with the six always-live effect knobs and D Beam, make it all fast and easy to get to. your audience won’t believe what you can do with the V-Combo VR-09. There’s also a free iPad app for serious sound programming. Of course,... -
Page 3: Getting Ready
• SYNTH section—True to its name, this area’s where you’ll find You can also use a mono amp—and the VR-09’s L/MONO output synth sounds, as well as related acoustic sounds via the SYNTH only—though listening in stereo’s the best way to fully appreciate OTHERS button that reveals pitched percussion its sound. - Page 4 Running the VR-09 on Batteries Listening to the VR-09 Demos The VR-09 can operate on eight Ni-MH AA-size batteries, The VR-09 ships with two demos onboard to give you a taste of what making it a great instrument to take anywhere. Though it can do.
- Page 5 Exploring Piano Mode Press the E. PIANO—for “electric piano”—button. Take a moment to try out Vintage EP, a famous Rhodes sound. In a few moments, you’ll be returned to the main Piano mode If you don’t already see the screen below, press the PIANO button in screen, where you can see that Vintage EP has a tremolo the PIANO section.
- Page 6 We’ve also entered Organ mode. Exploring Organ Mode Roland has long been at the forefront of organ emulations with its acclaimed Virtual Tone Wheel technology. In the VR-09, Roland’s introducing our next-gen SuperNATURAL Virtual Tone Wheel technology.
- Page 7 As you move them, the sound responds to your changes just as a traditional organ’s drawbars do. You’re now playing with the flexible power of Roland’s SuperNATURAL Virtual Tone Wheel technology. It’s worth taking a moment to explain how it works.
- Page 8 3/5’ 1/3’ ’ sculpting absolutely awesome organ sounds. The V-Combo VR-09 Owner’s Manual has much more about this, including diagrams on page 18 showing how to achieve popular organ sounds with the drawbars. Later, we’ll talk about setting up ORGAN sounds from an iPad.
- Page 9 The sound waves that together make up a sound vibrate at different speeds, or “frequencies.” Slower, “low-frequency,” sounds produce lower pitches—they’re the bass in a sound. High- frequency waves produce higher pitches in the treble range of a sound. We refer to different speed ranges as “frequencies.” To restore a sound you’ve changed with the sliders to its original settings, re-select the sound.
- Page 10 The Pitch Bend/Mod Lever The Other Side of Synth Mode Push the pitch bend/mod lever to the right and left to lower or raise While the BRASS button—as we’ve seen—does get you to the VR-09’s notes, or push it forward to add modulation—this is typically vibrato, synth brass, it also provides access to great acoustic brass sounds.
-
Page 11: Layering And Splitting
Technically, what’s going on here is that each of the EFX knobs controls Creating a VR-09 Layer or Split one of six always-on effect processors: Here’s how to layer sounds in the VR-09 and split the keyboard. • • • Overdrive Tone control Compressor... - Page 12 Perfecting a Layer or Split Changing Layer or Split Sounds You can choose different sounds for a layer or split even after you’ve The two sounds in a split begun setting it up. Here’s how. are labeled as Upper, or “U,”...
- Page 13 Shaping a Layered or Split Sound Bank and Number Registration Name Type Highlight the sound you want to modify on the display and use BrassnOrgan Brass the sliders to make the changes you want. DoomsDayBrs Brass By moving from one to the other layered or split sound on the Blues B3 Organ display, you can use the sliders for realtime control of either sound.
- Page 14 Exploring DRUM Mode Press the CURSOR buttons or turn the VALUE dial to select any kit you’d like to play from the keyboard. After a few moments, you’re returned to the DRUM screen. Sounds in the kit you selected can be played from the entire VR-09 keyboard.
- Page 15 At the first touch of the TAP TEMPO button, the To learn more about MIDI, SMFs, and SysEx data, current tempo is displayed in BPM, or “Beats Per see Roland’s An Introduction to MIDI InFocus booklet, Minute.” which you can download by clicking the URL button at the right.
-
Page 16: Connecting To Your Ipad
The VR-09 iPad Editor Go Wireless For the simplest type of hook-up, you can utilize Roland Wireless Connect technology by purchasing a Roland The sliders, D Beam and other realtime controllers give you everything WNA1100-RL Wireless USB Adapter for your VR-09. - Page 17 Connect Via USB You can also connect your iPad to the VR-09’s USB COMPUTER jack via USB if you’ve purchased the required connector(s) for your iPad. • If you have an iPad 3 or earlier—you’ll need the Apple iPad Camera Connection Kit.
